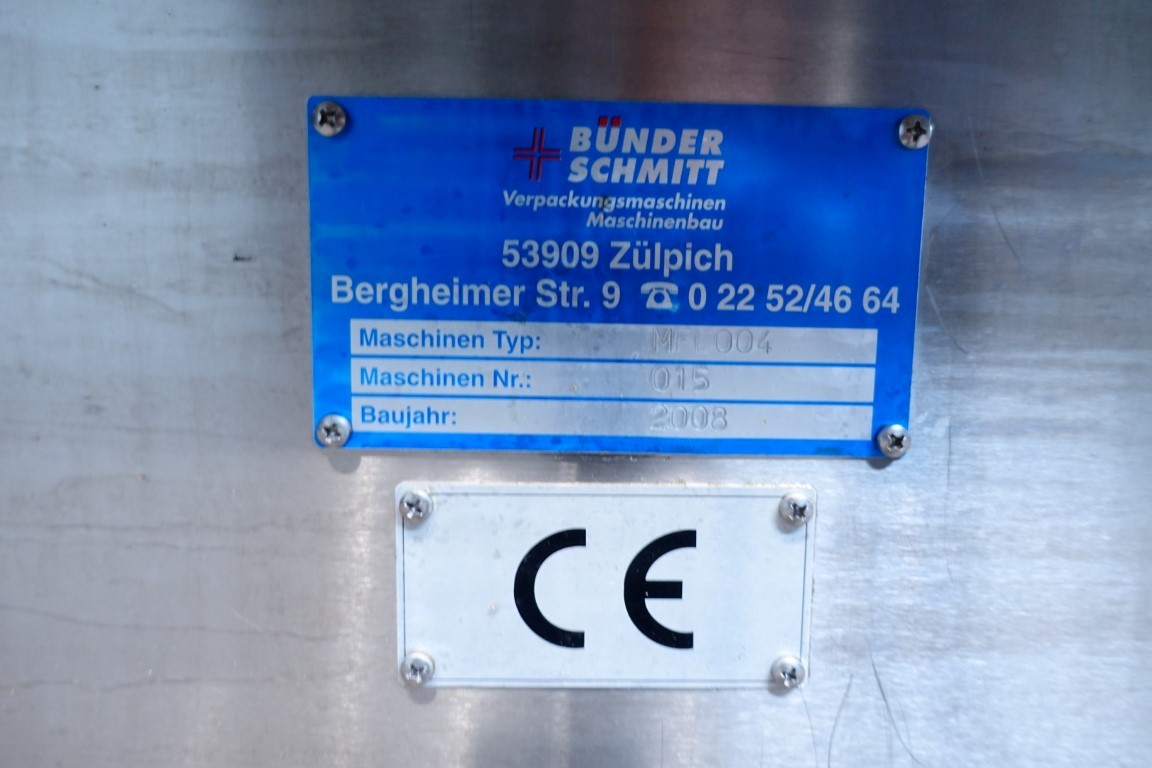

Bünder & Schmitt MFL004

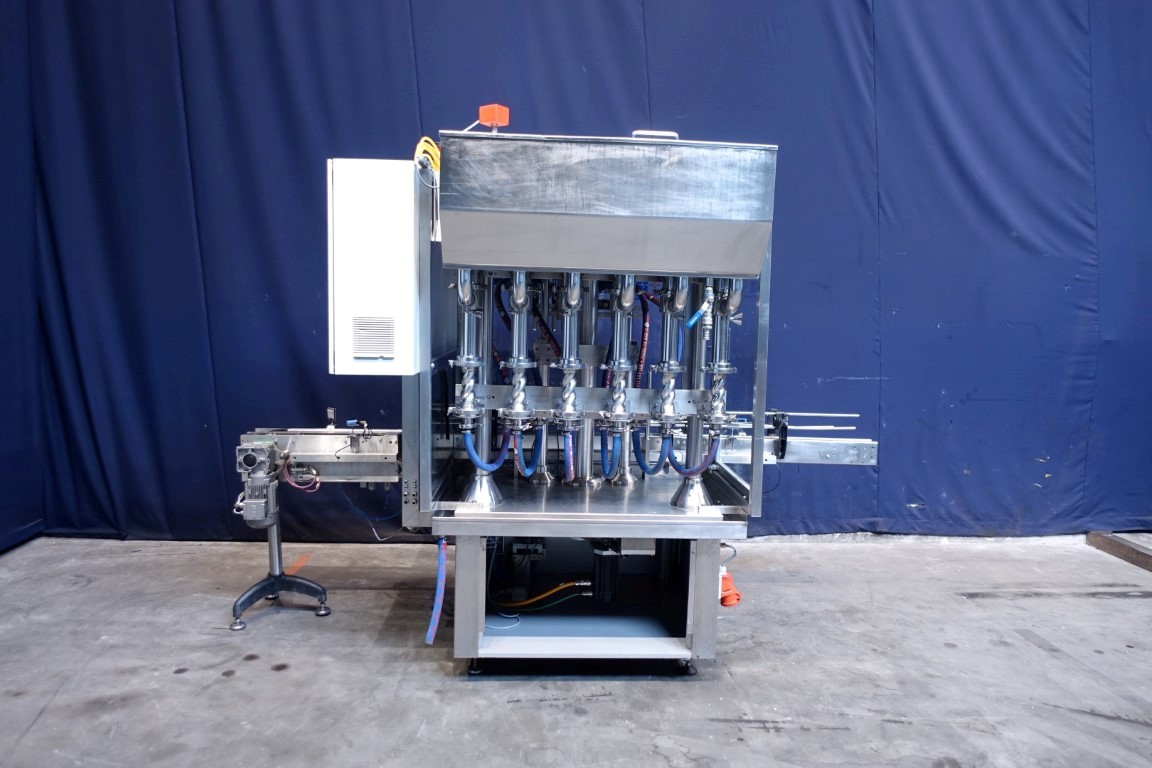

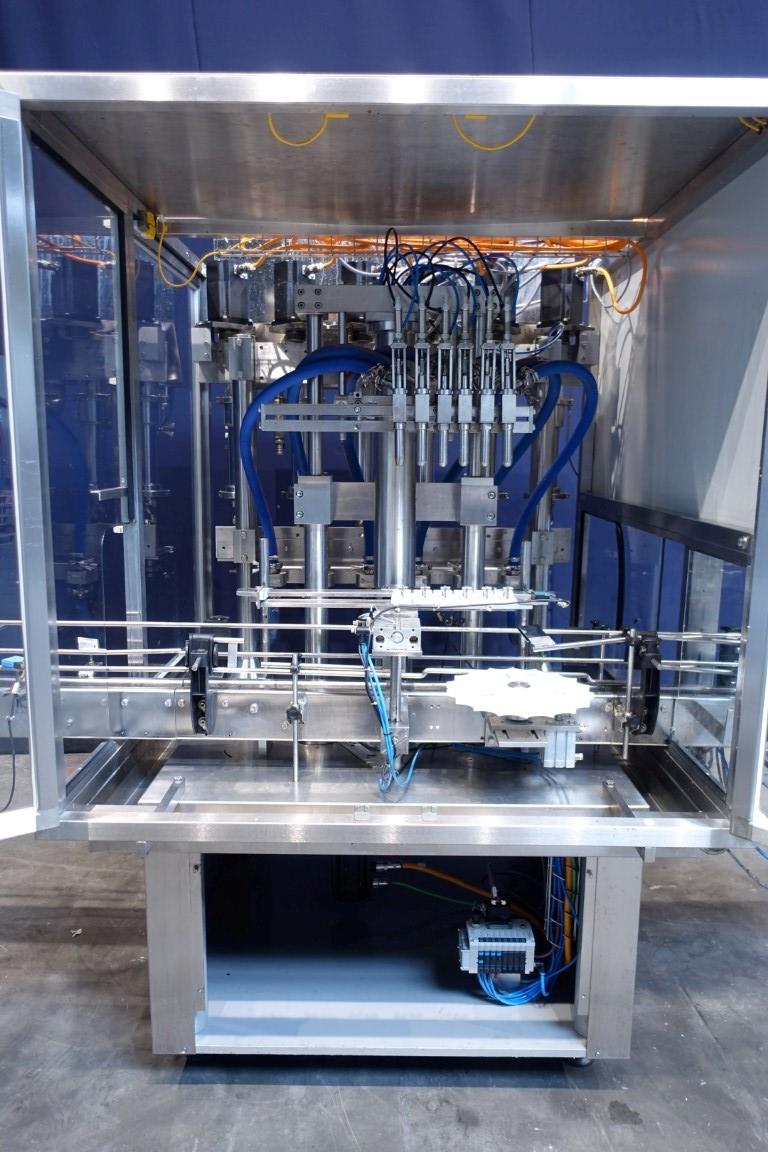

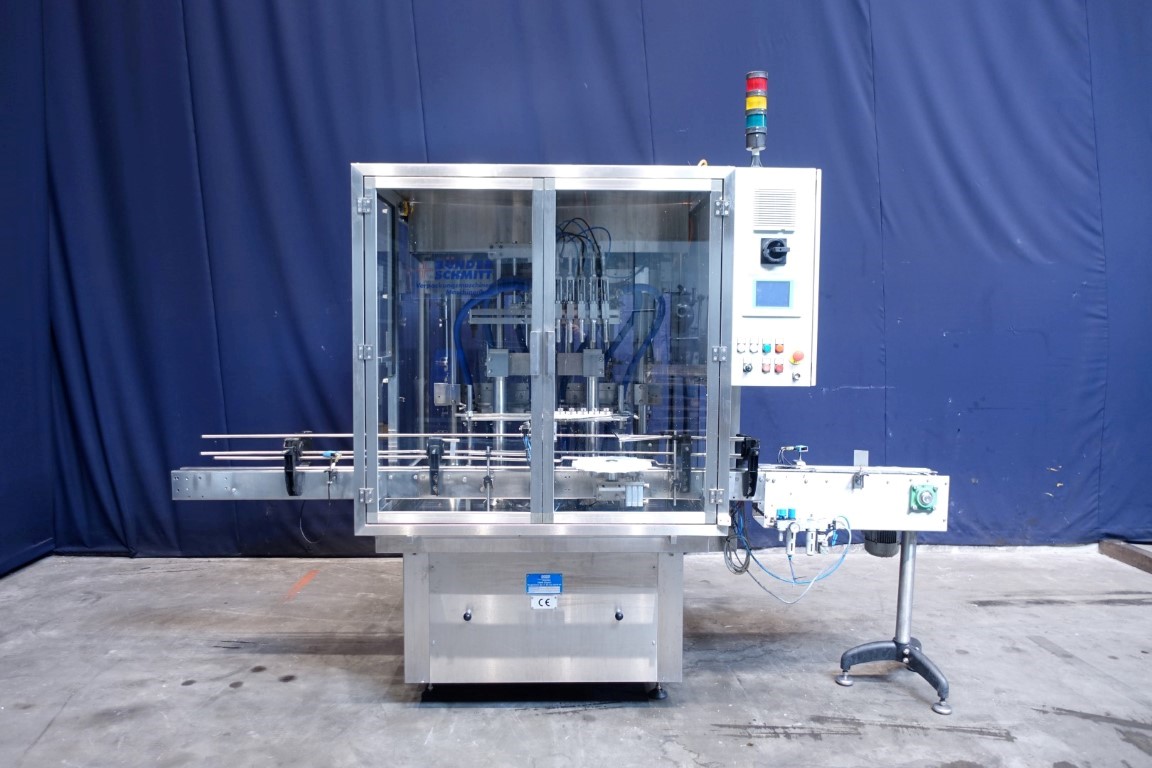

"Fully automatic linear filling machine with stop star for product singularization. The machine was equipped by eccentric screw pumps which are servo driven. By couting the rotations the volume can stepless be set invery volume, CIP cleanable.
Currently 2 pumps are dismanled so machine incomplete, valves and cylinders are made of stainless steel.
capacity adjustable, depending on the form of the bottles shape, volume, filling height and product
Transport conveyor through the machine (belt missing) and guide railing
Machine drive frequency drive
The pumps have to be fed constantly with the product. Dry running of the pumps can be avoided by means of a reservoir with float command.

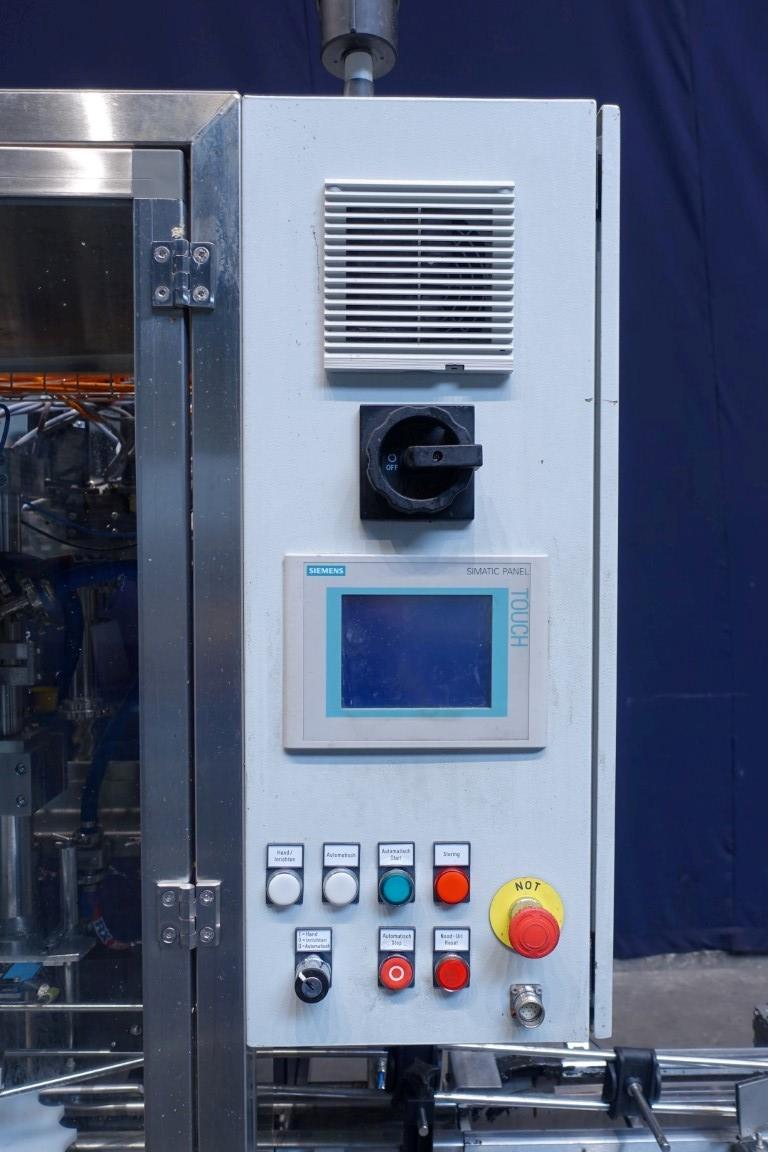

Machine management Siemens SPS S7, control touch panel OP177B
Festo pneumatic valves and cams
Basic frame in solid cast-steel-aluminum-construction, lacquered, table sheets and side casing in stainless steel with collecting vat
Control device running-in jam control switch and light sensor
Machine stop while filling tubes setup
Filler switch min./max. running-in jam control switch and light sensor
Safety device.
All-around covering against accidental intervention into the running machine
Panes made of Sekurit safety glass
Door protection by end switches
Working height 900 mm +/- 50 mm"
