Gasti Dogamix

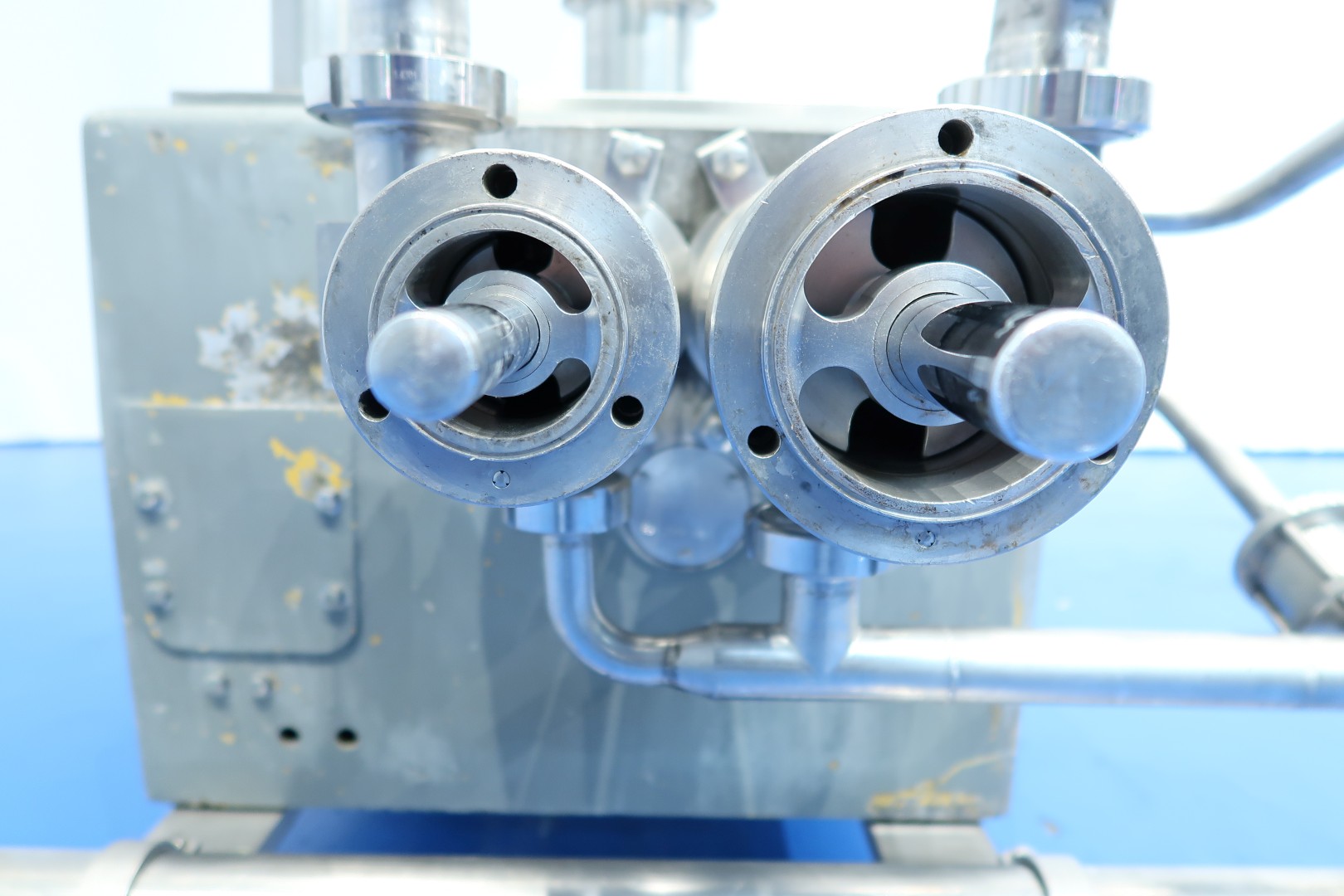

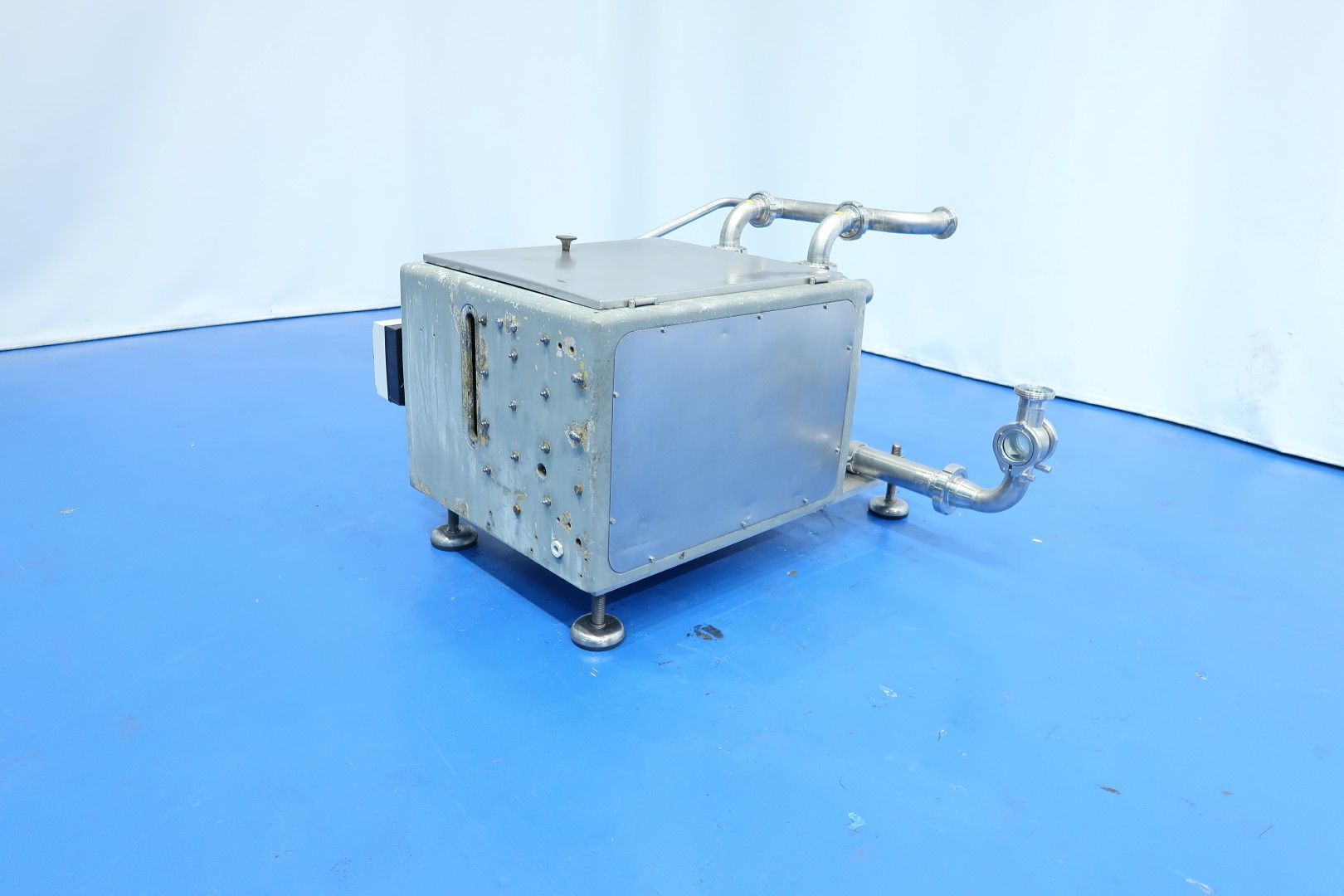

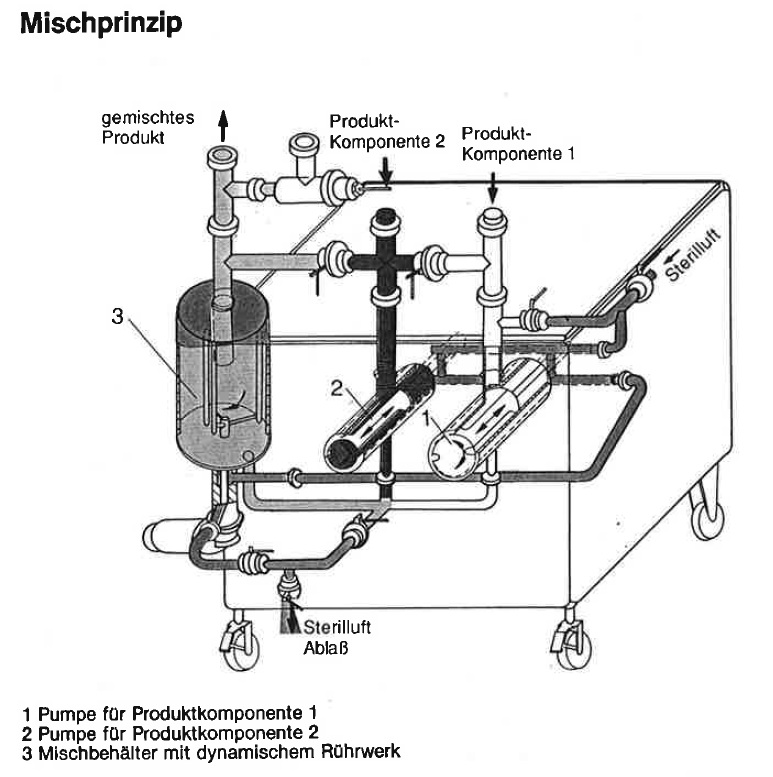

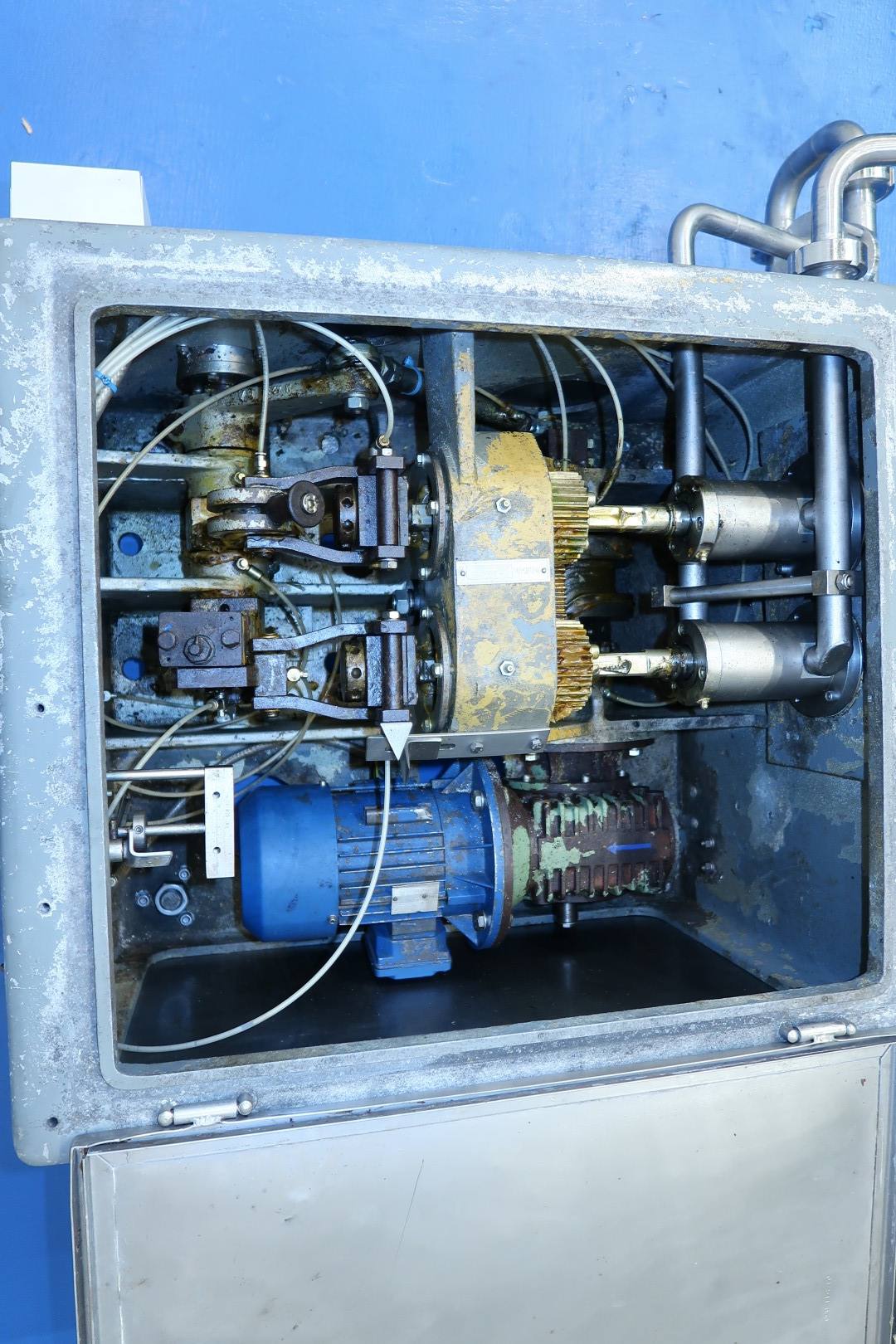

Yoghurt / Fruit mixing unit. Mechanical driven piston pump for automatic injection of fruitpulp to a stirred yoghurt or quark. 2 Different sizes of piston dosers. #01: piston diameter 89 mm, stroke 85 mm, volume ± 500 cc. #2: piston diameter 55 mm, stroke adjustable max 85 mm, max volume: ± 200 cc. 1 Drive shaft make a syngronic dosing of yoghurt and pulp even if speed is variable. No frequency converter or flowtransmitters needed. CIP cleanable. Motor power: 1,3 kW - 2,5 A - 3.400 rpm. Connections: 2'' DIN. Total dimensions: 140 x 120 x 80 cm.
