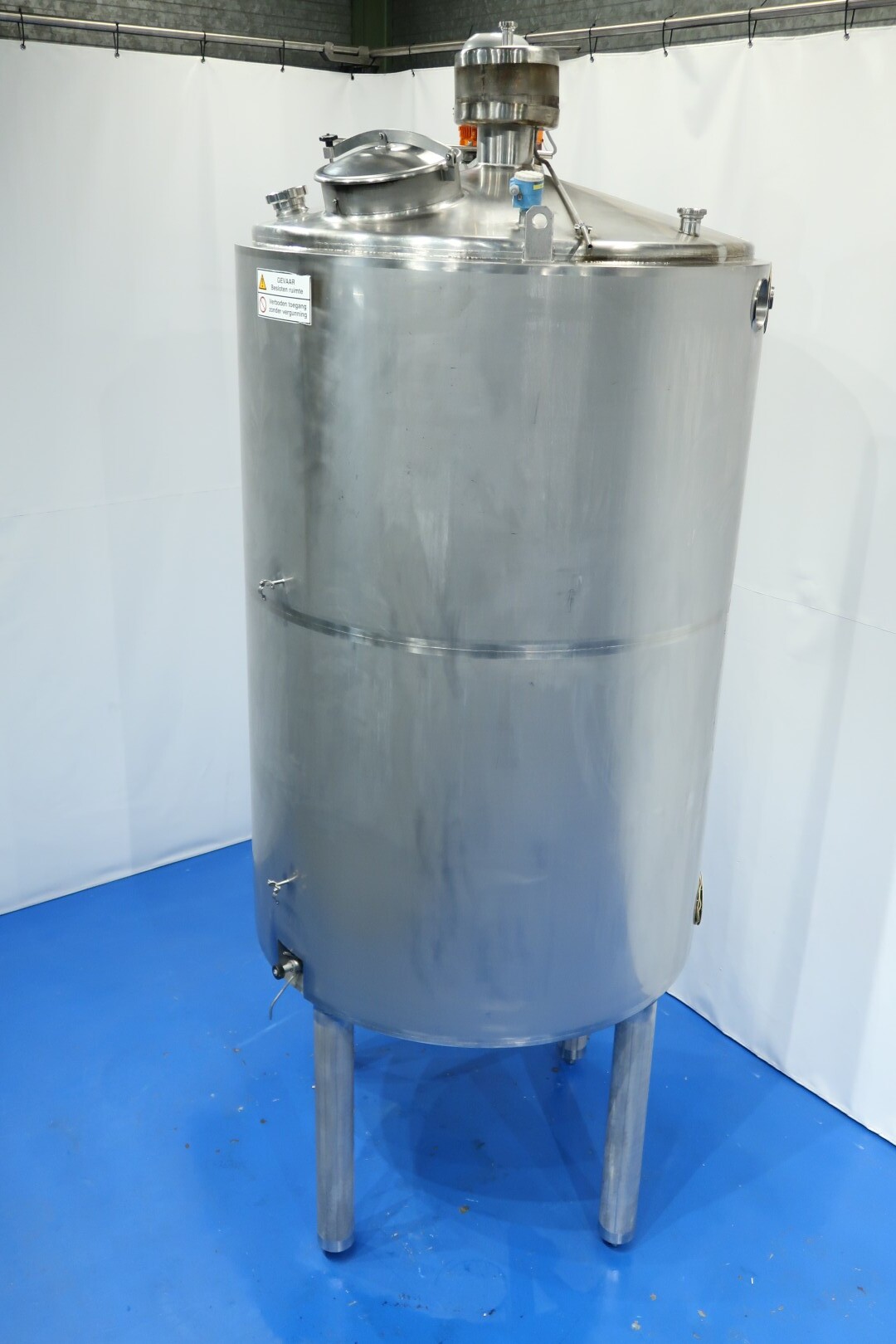

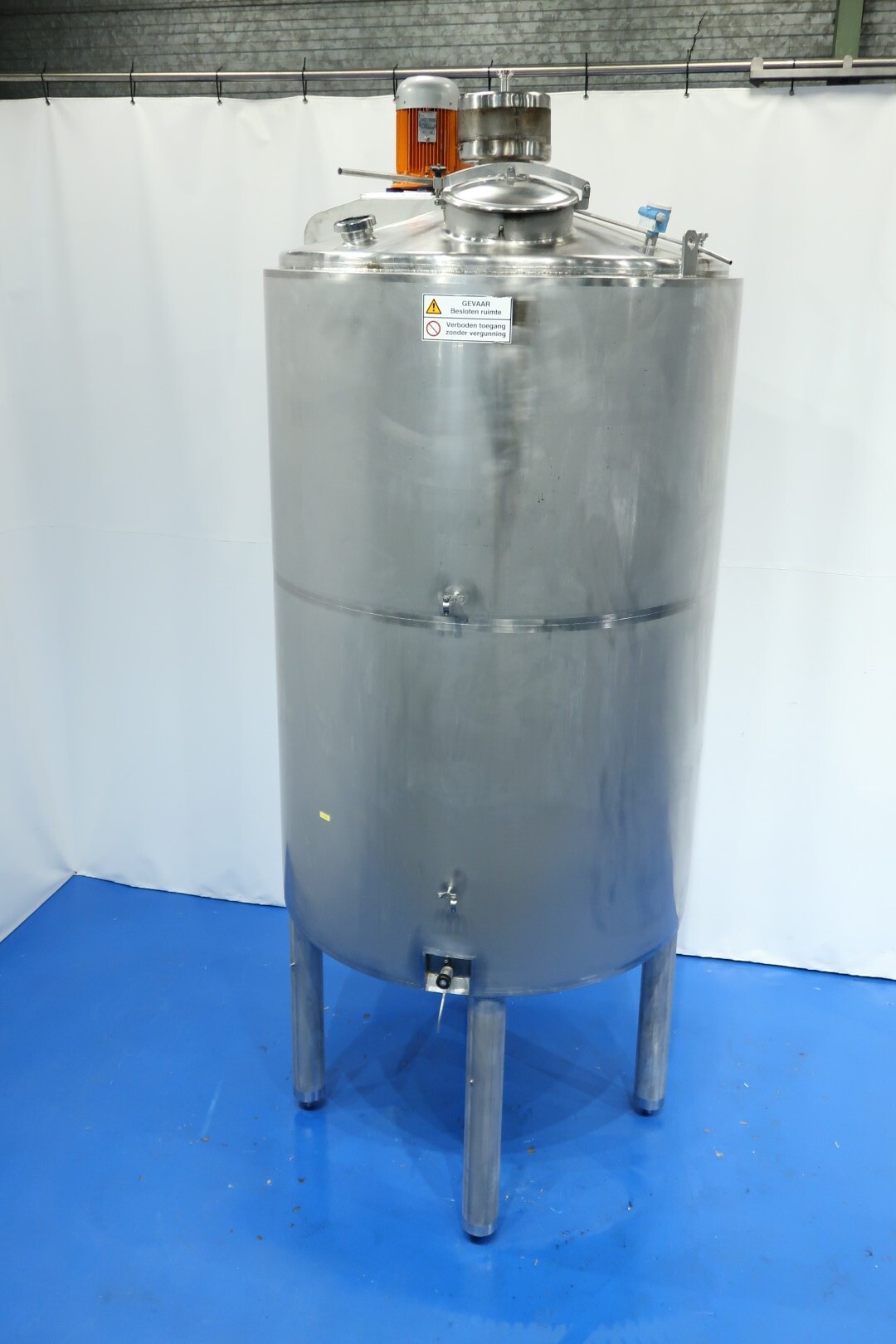

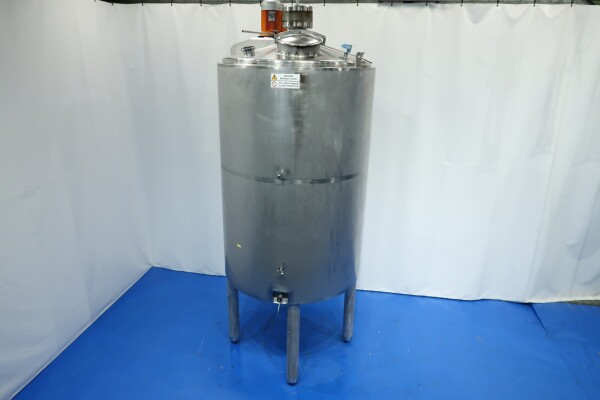

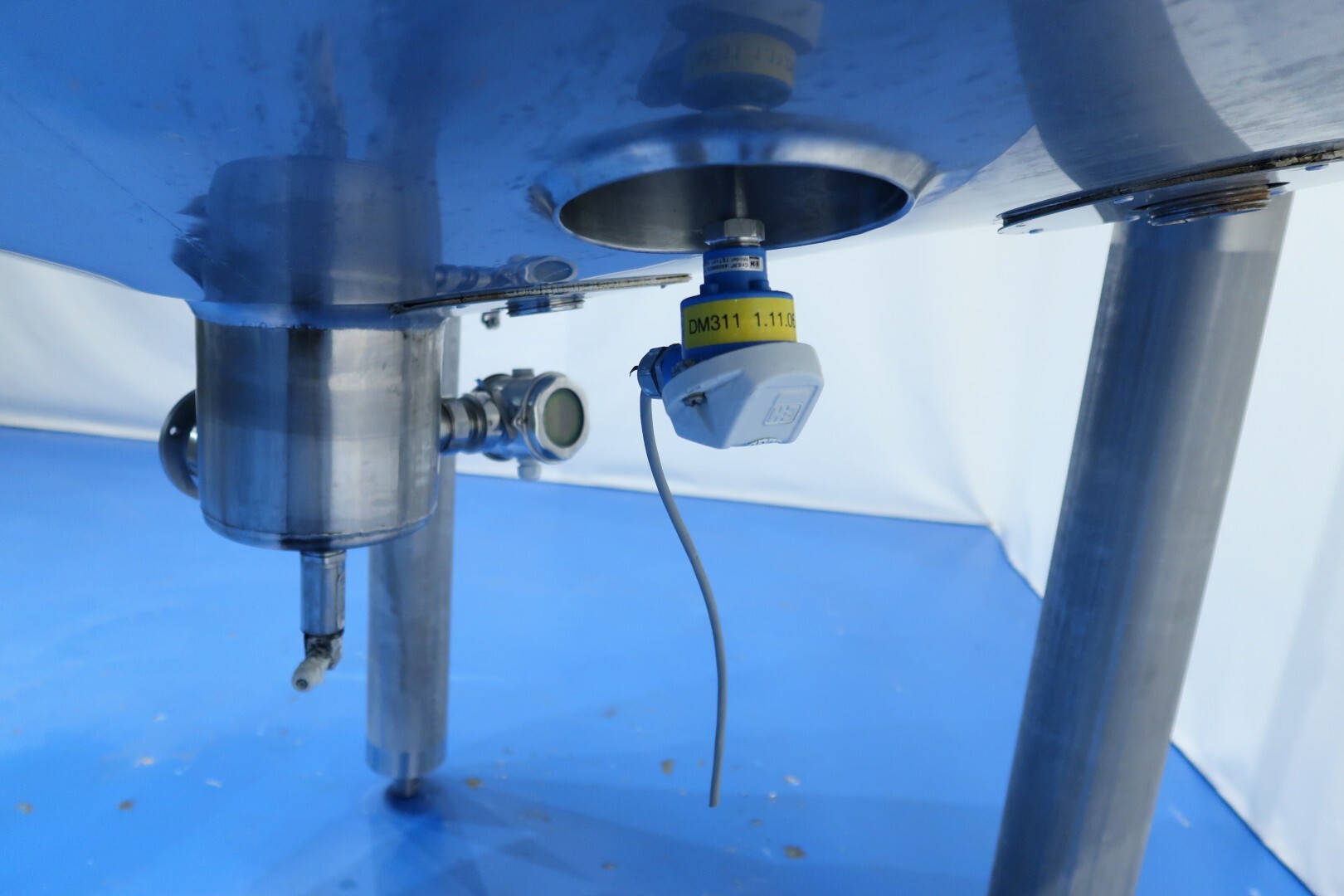

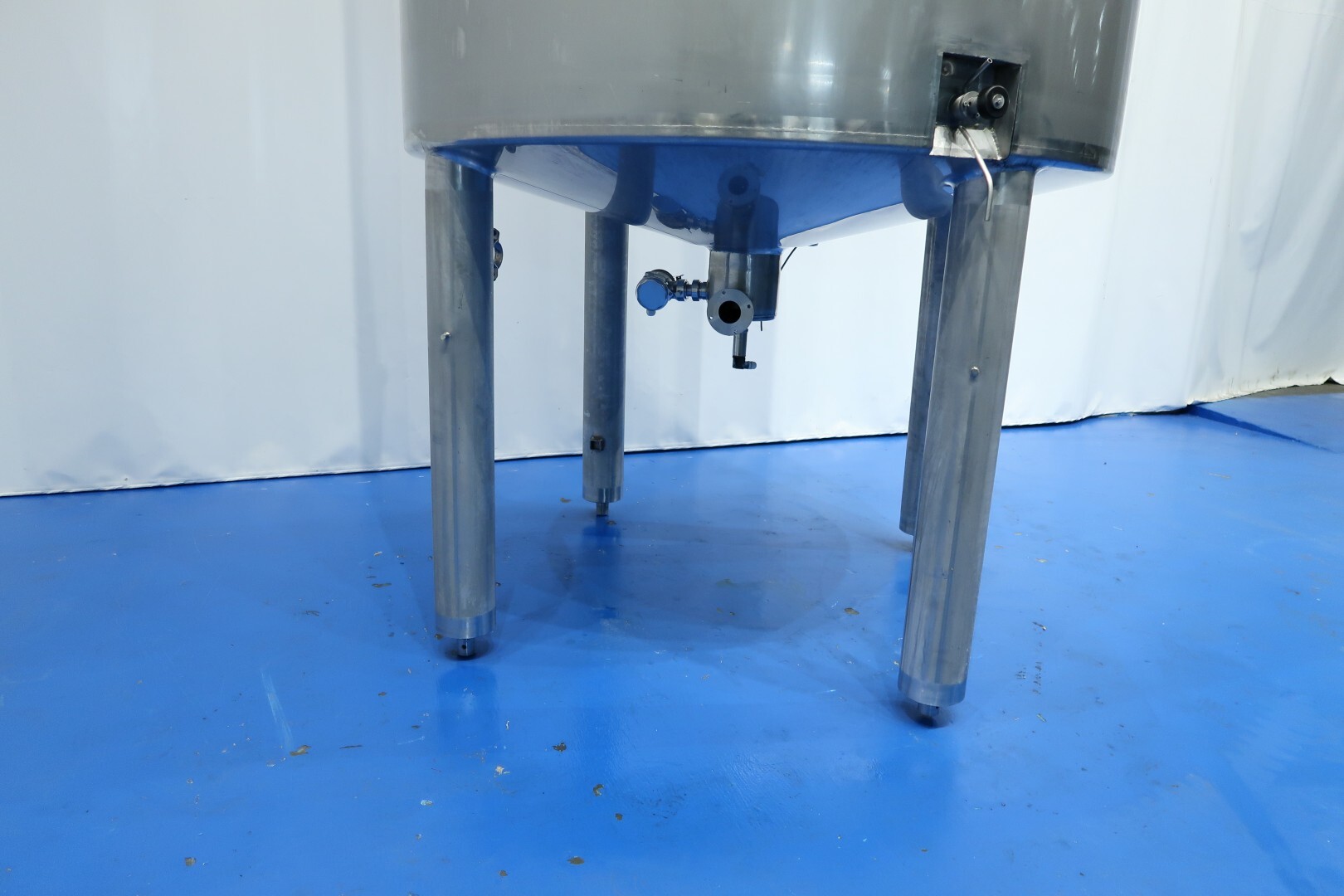

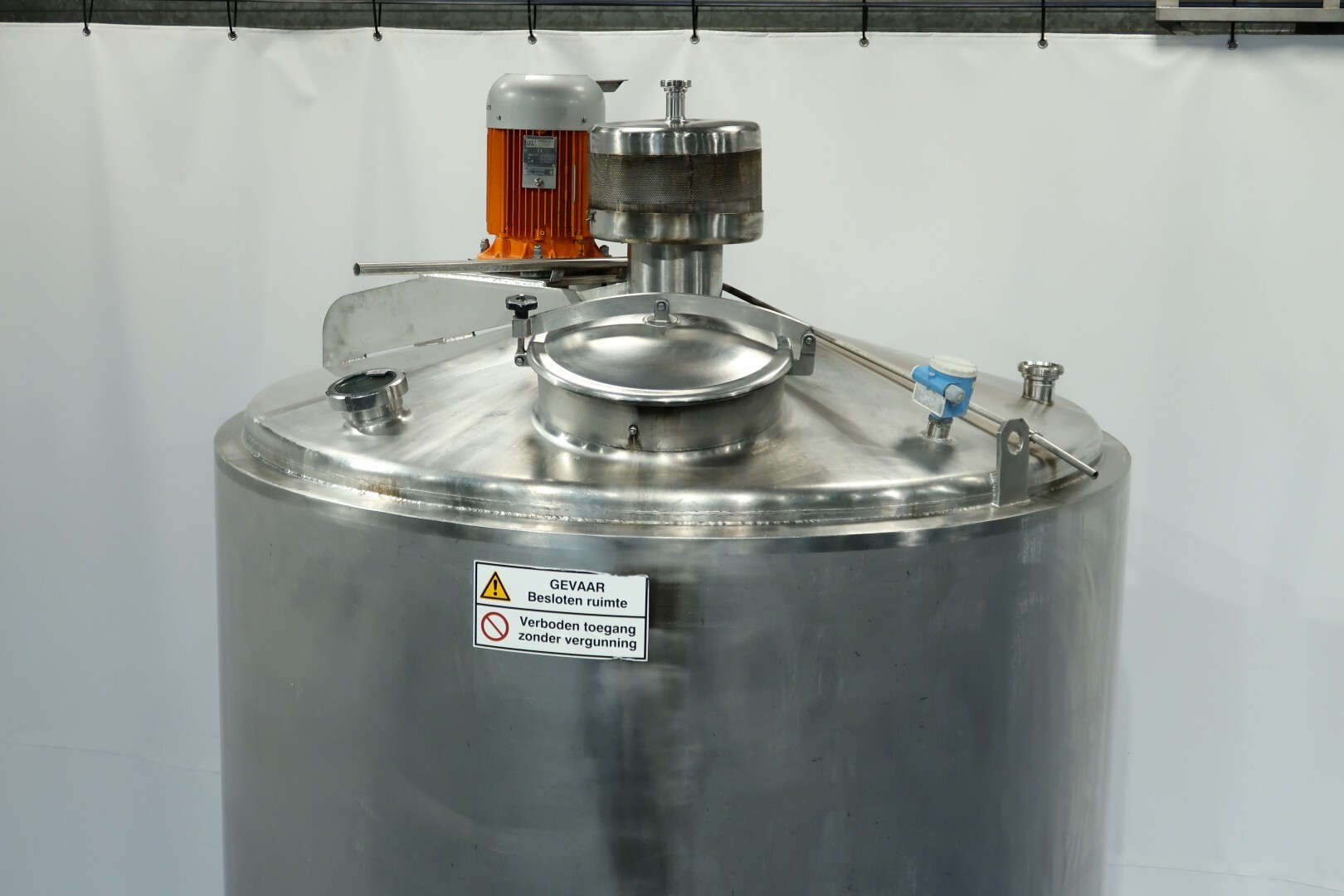

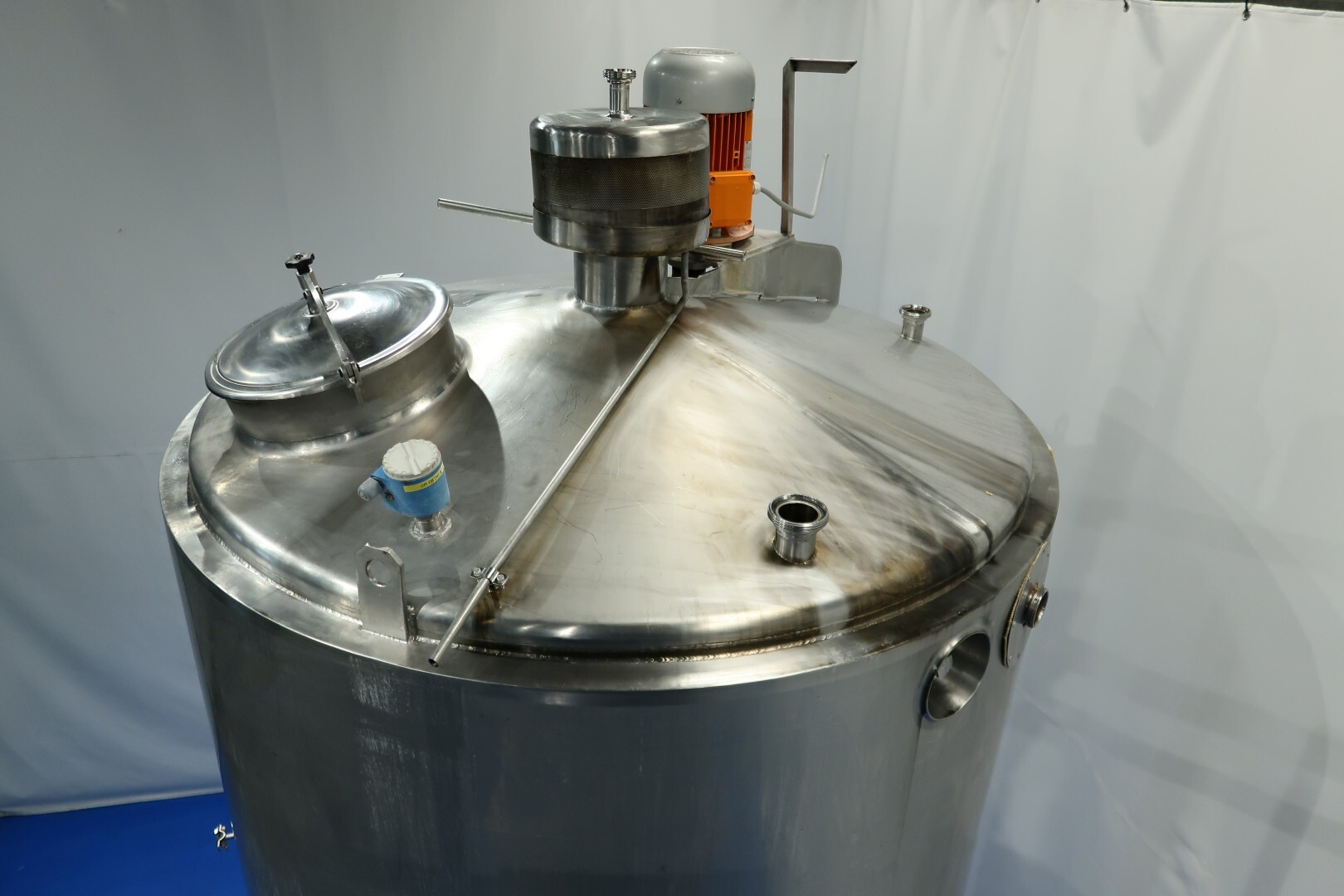

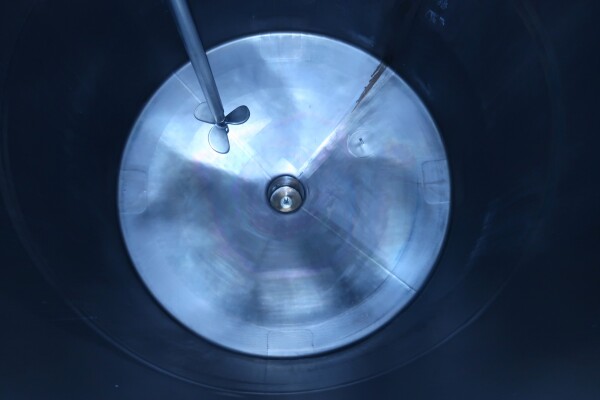

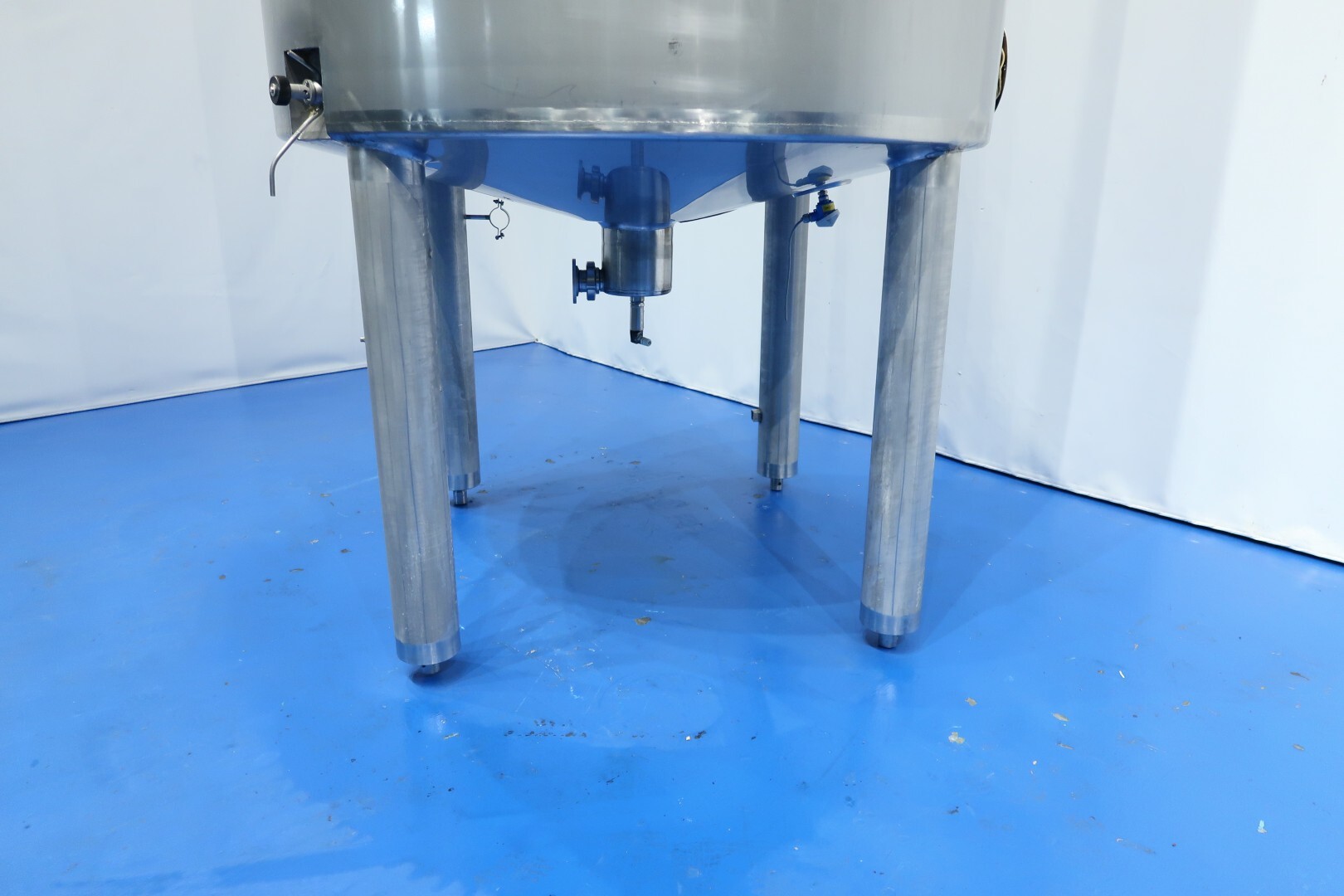

Double-walled, insulated vertical mixing tank. Formerly used for cooling and mixing cream. Driven by a Jongia JDR propeller stirrer: 0.9 kW - 3.5 A - 460 rpm. Insulated side and bottom walls. Pressure jacket: design 20 bar - test 10 bar - working pressure 3 bar. Pressure inside the tank: atmospheric. Operating tank temperature: 0-85°C, design temperature: 0-100°C. Operating jacket temperature: 0-85°C, design temperature: 0-150°C. Cooling surface: 15 m². Product outlet 2.5" DIN, outlet height: 95 cm. With cleanable sampling valve. Bottom: 1 temperature sensor, 1 level sensor, and 1 pressure sensor. Top: 1 level sensor, air vent, 1 CIP spray bowl, manhole on the top, round diameter 43 cm. 4 adjustable feet, internal dimensions: tank diameter 180 cm - cylindrical height 265 cm.
Documentation including drawings available.
