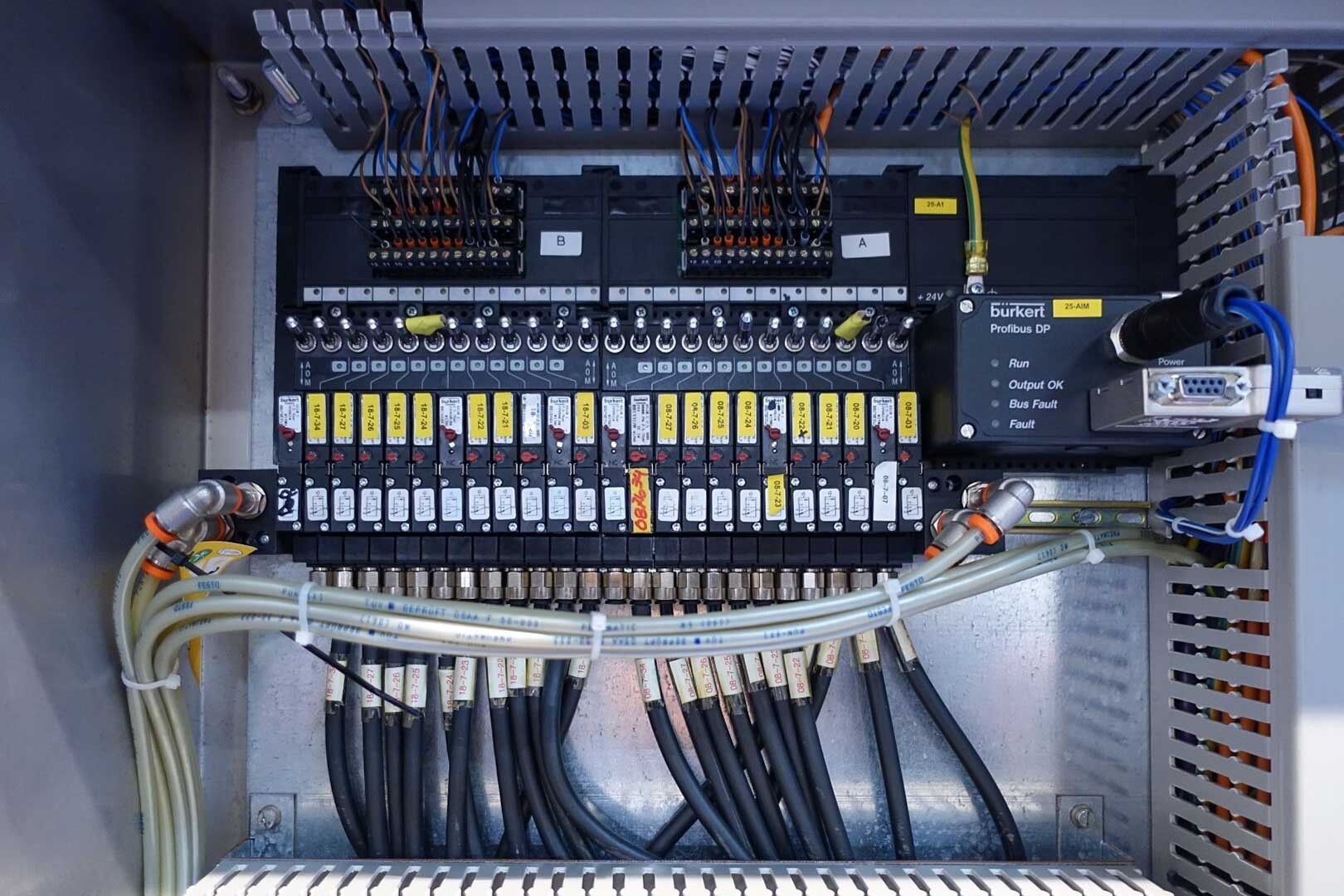

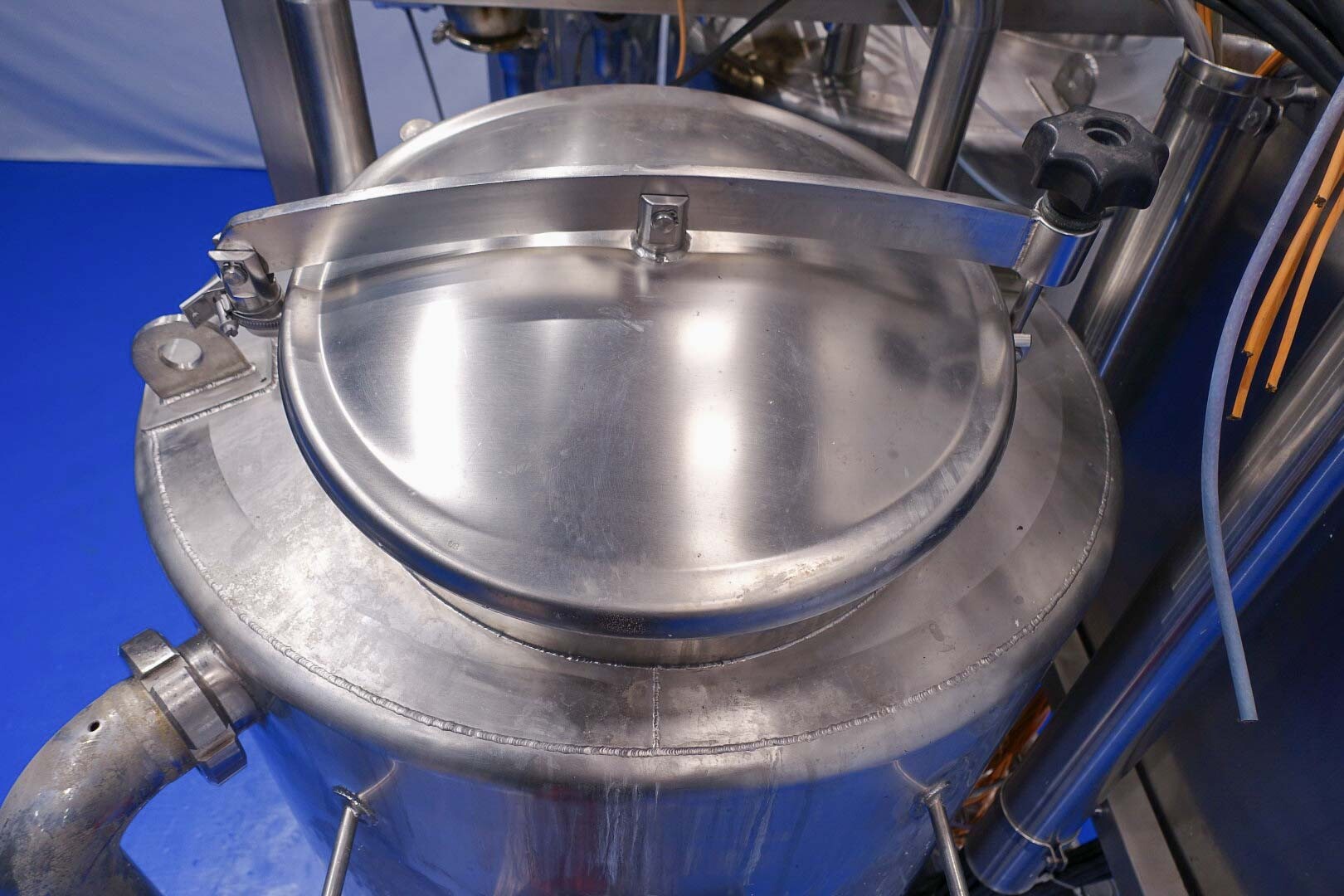

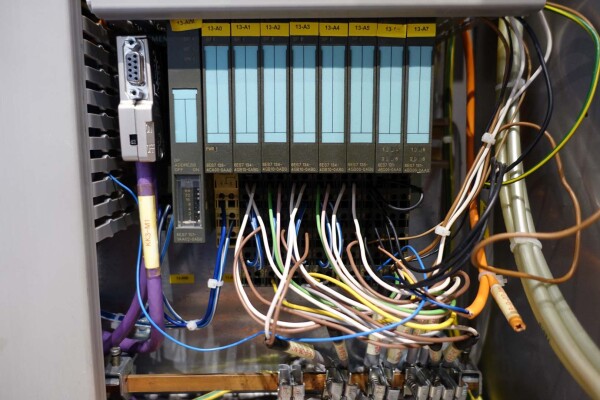

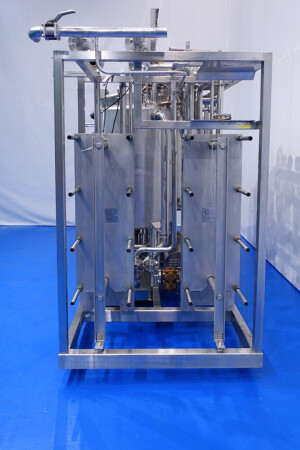

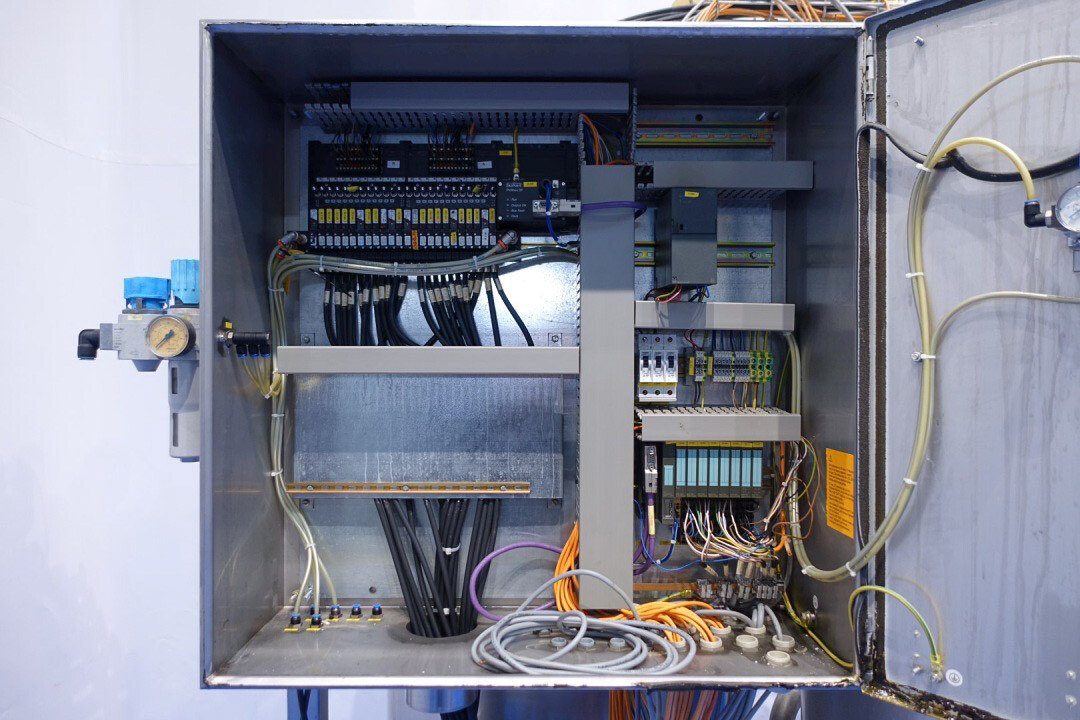

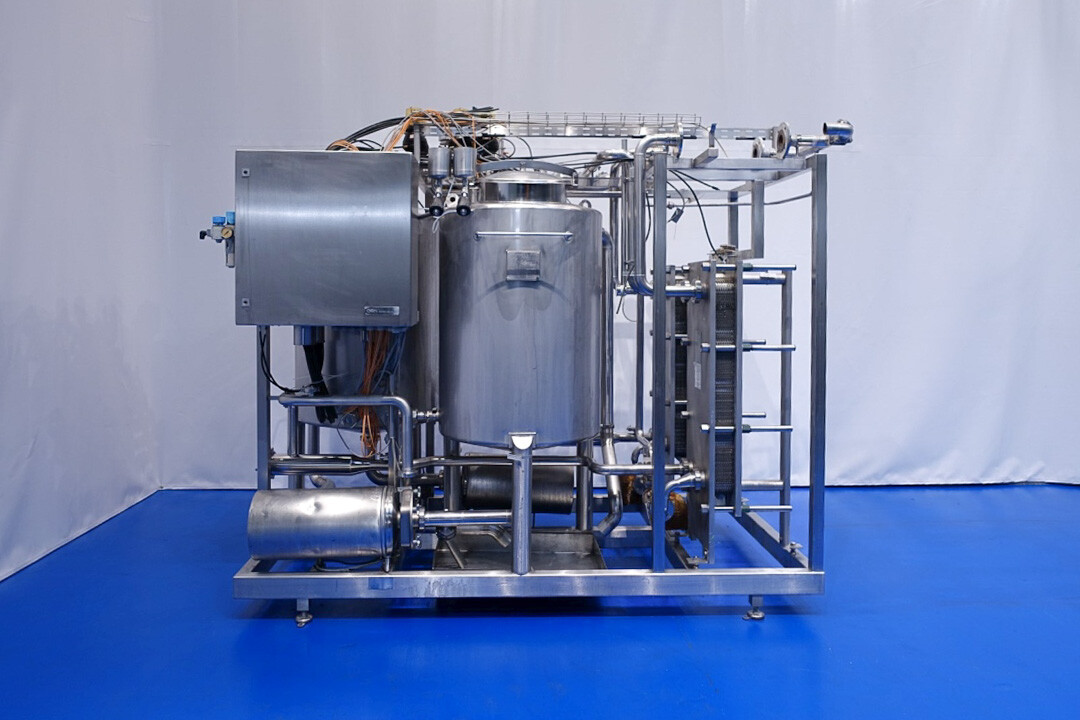

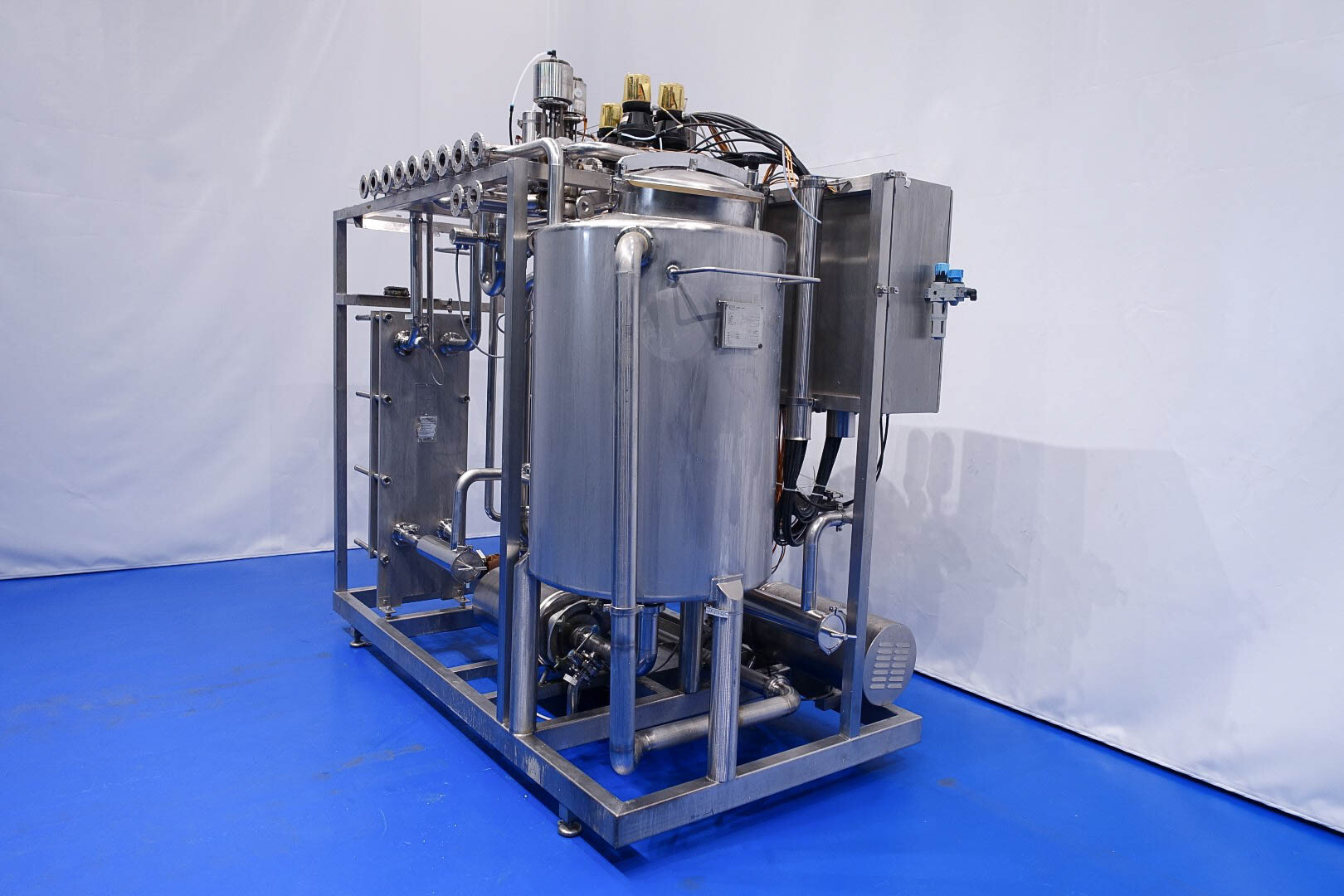

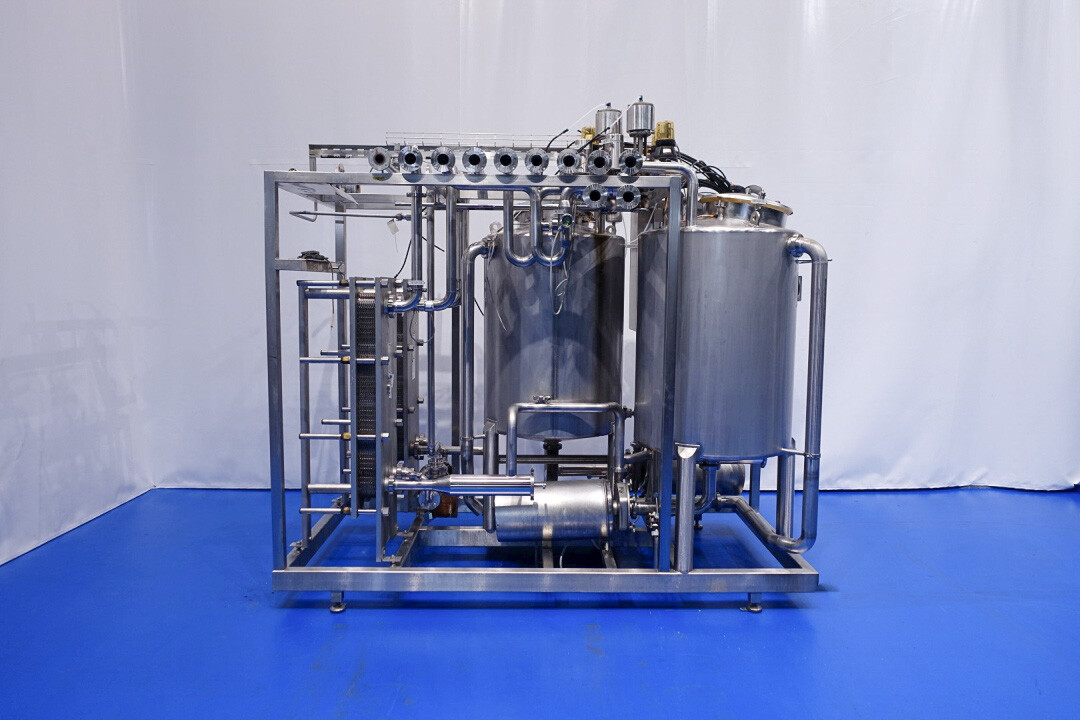

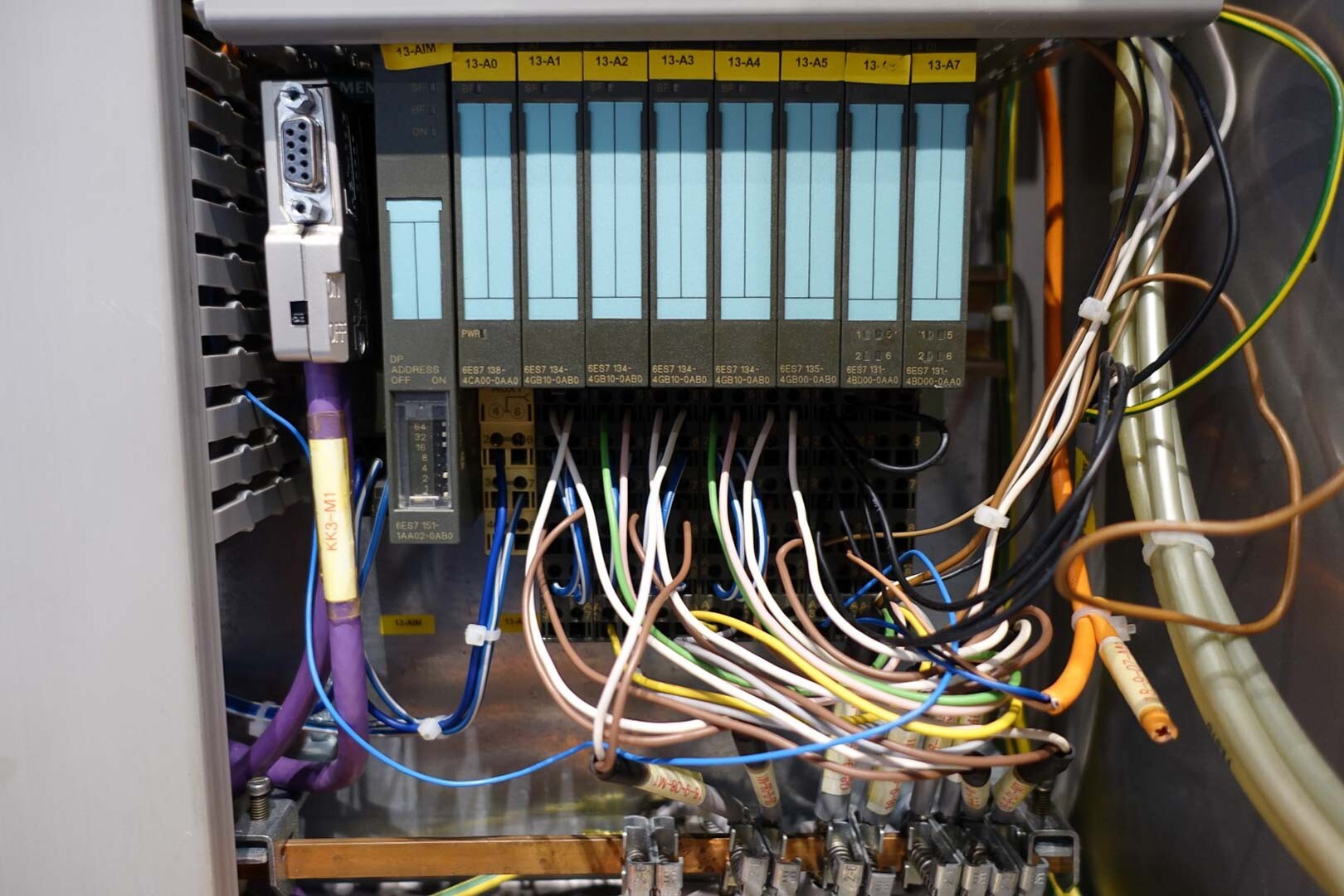

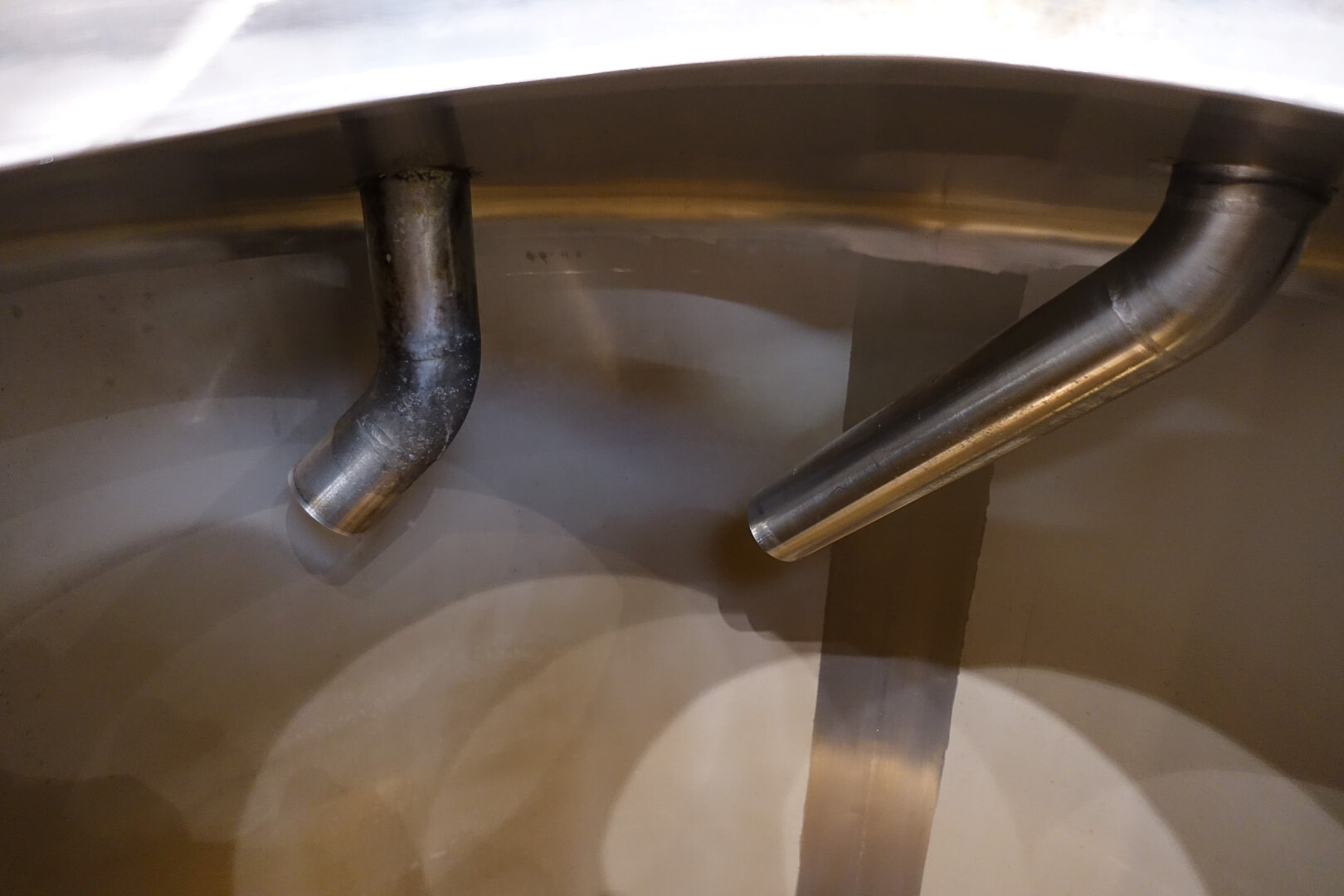

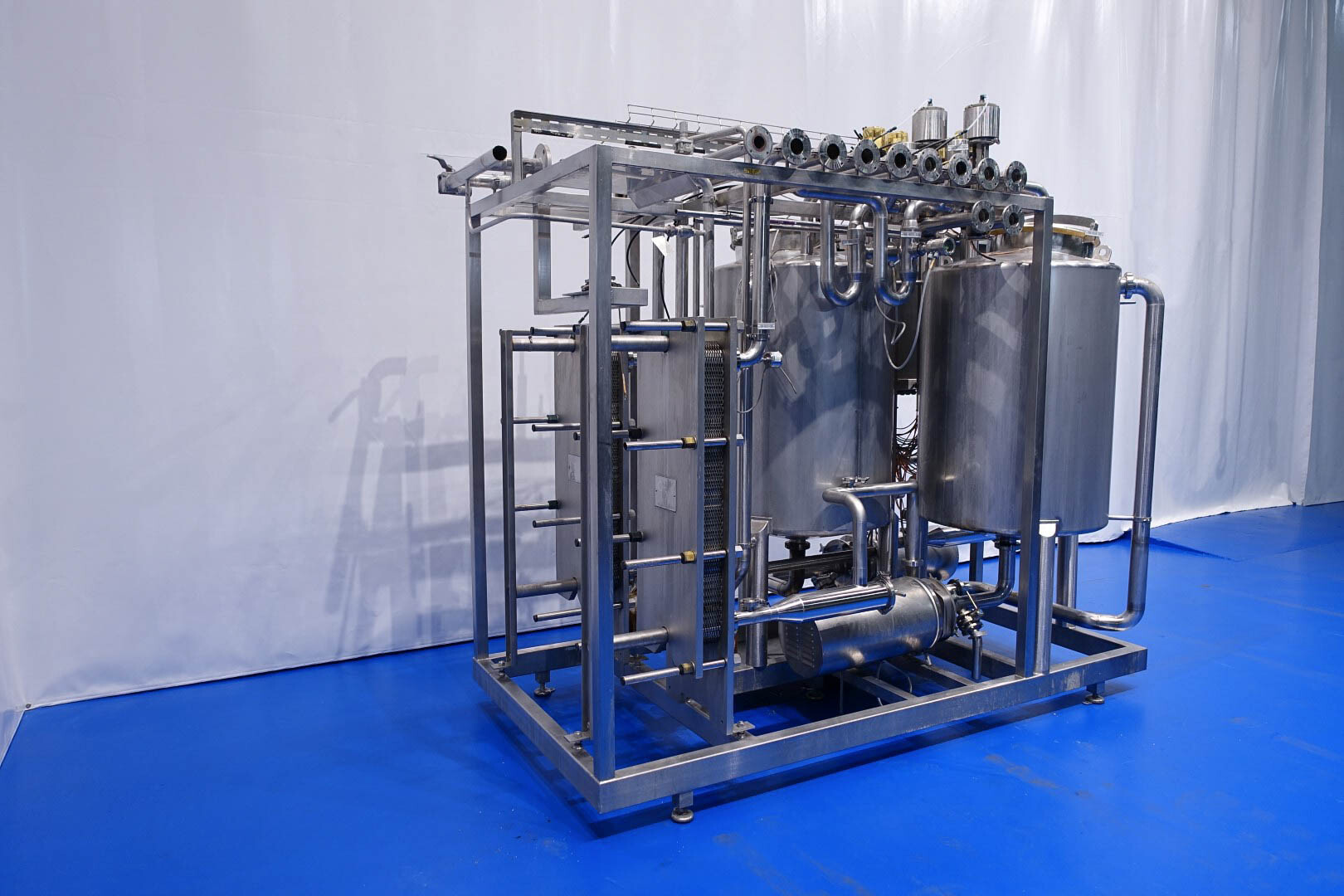

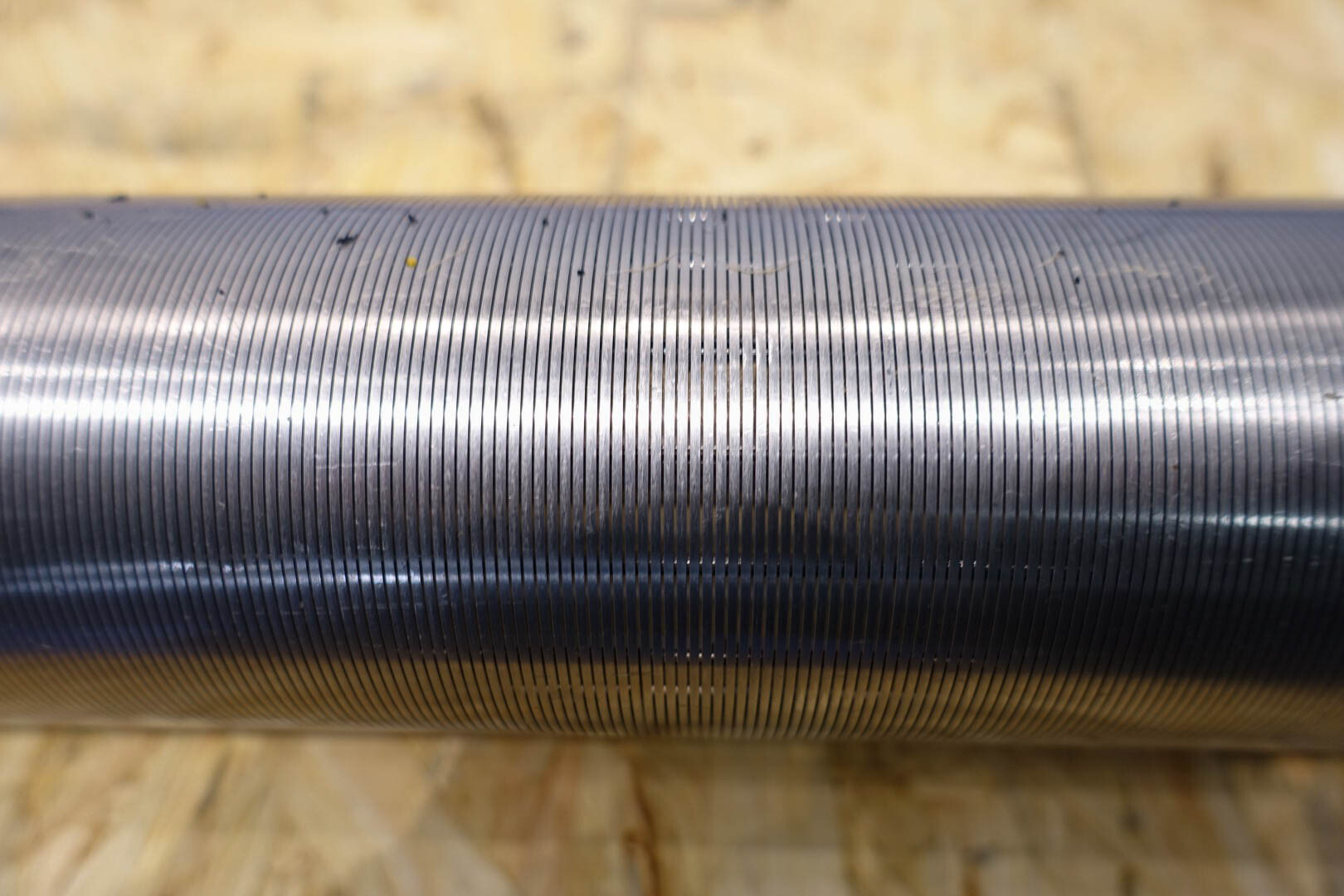

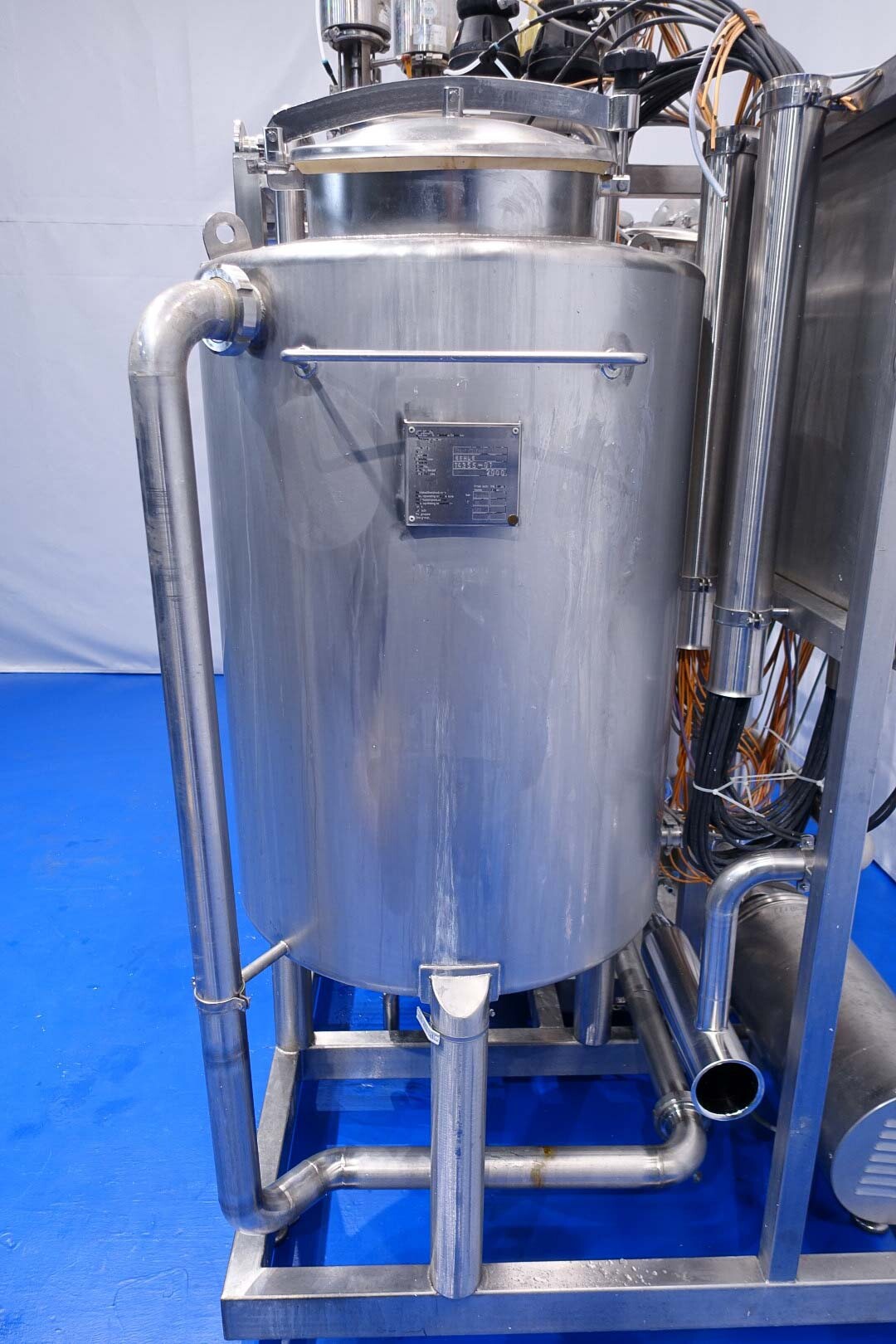

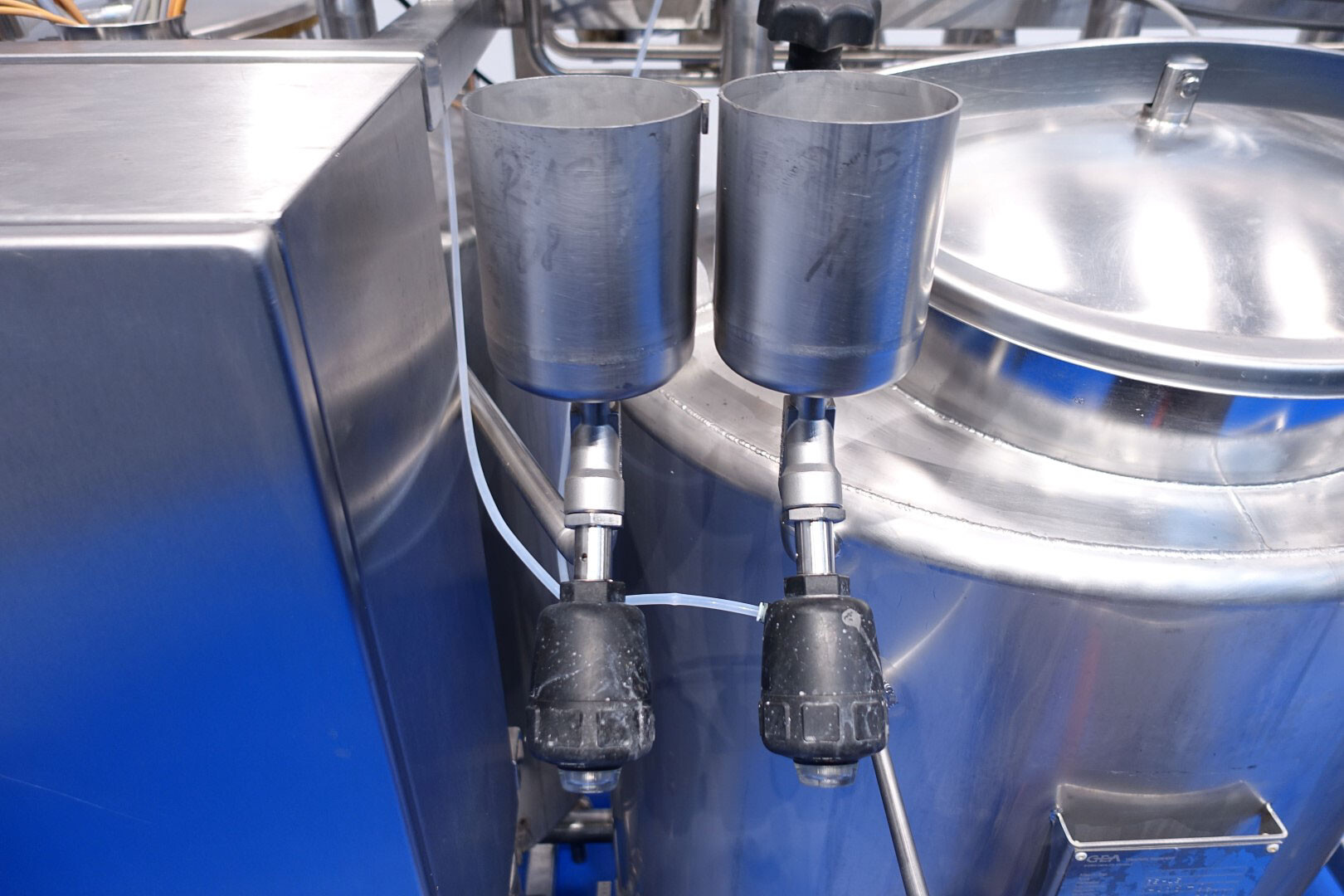

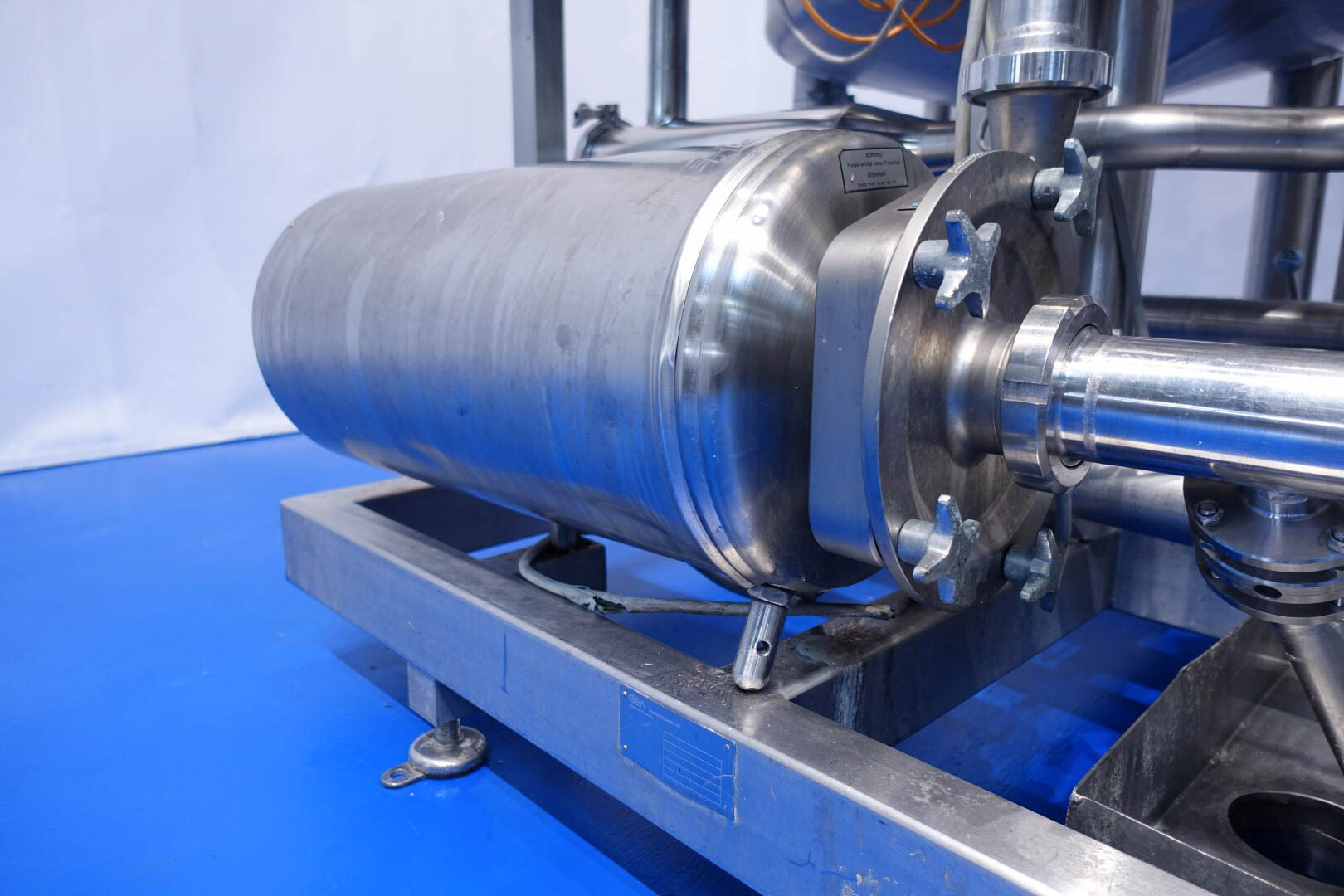

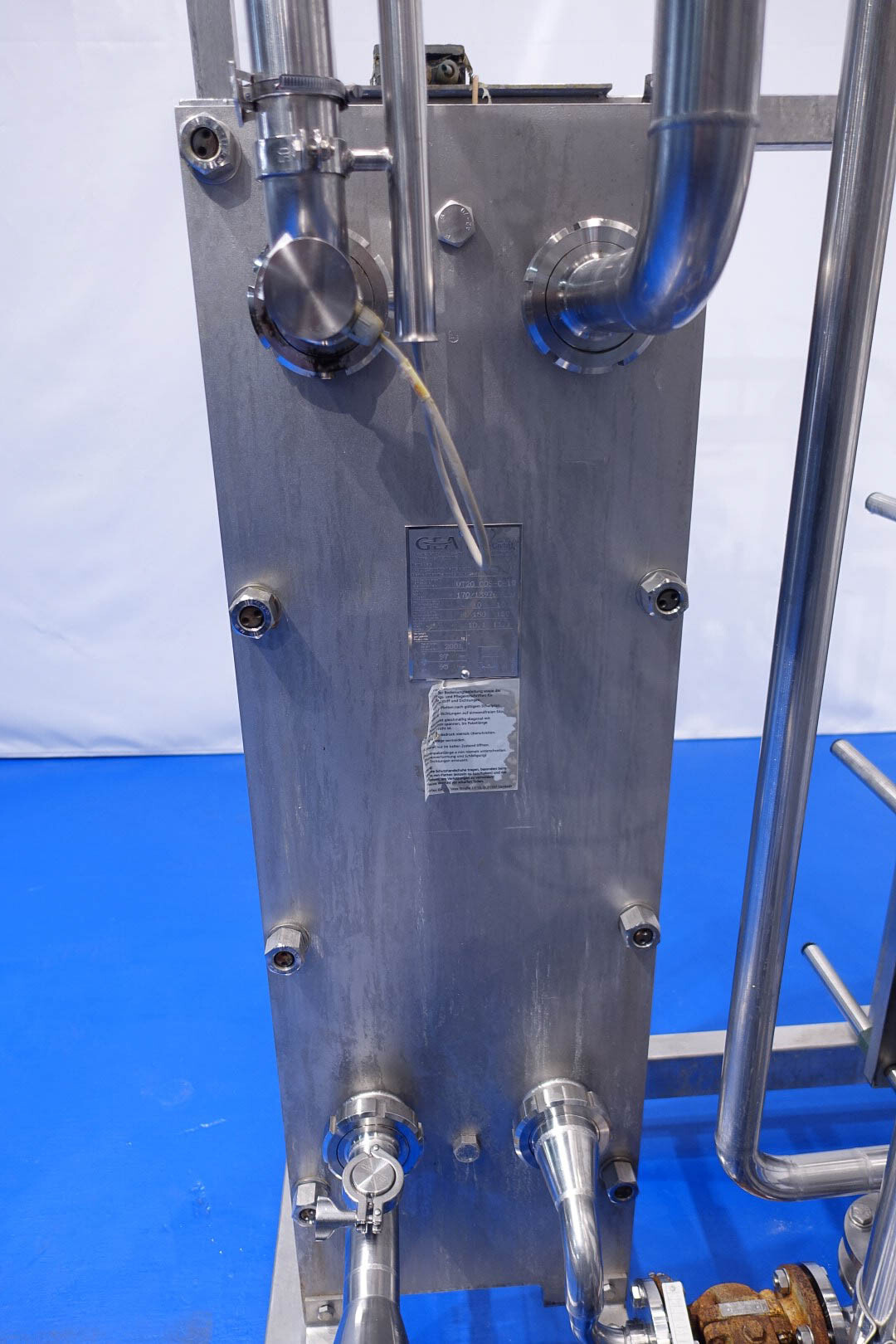

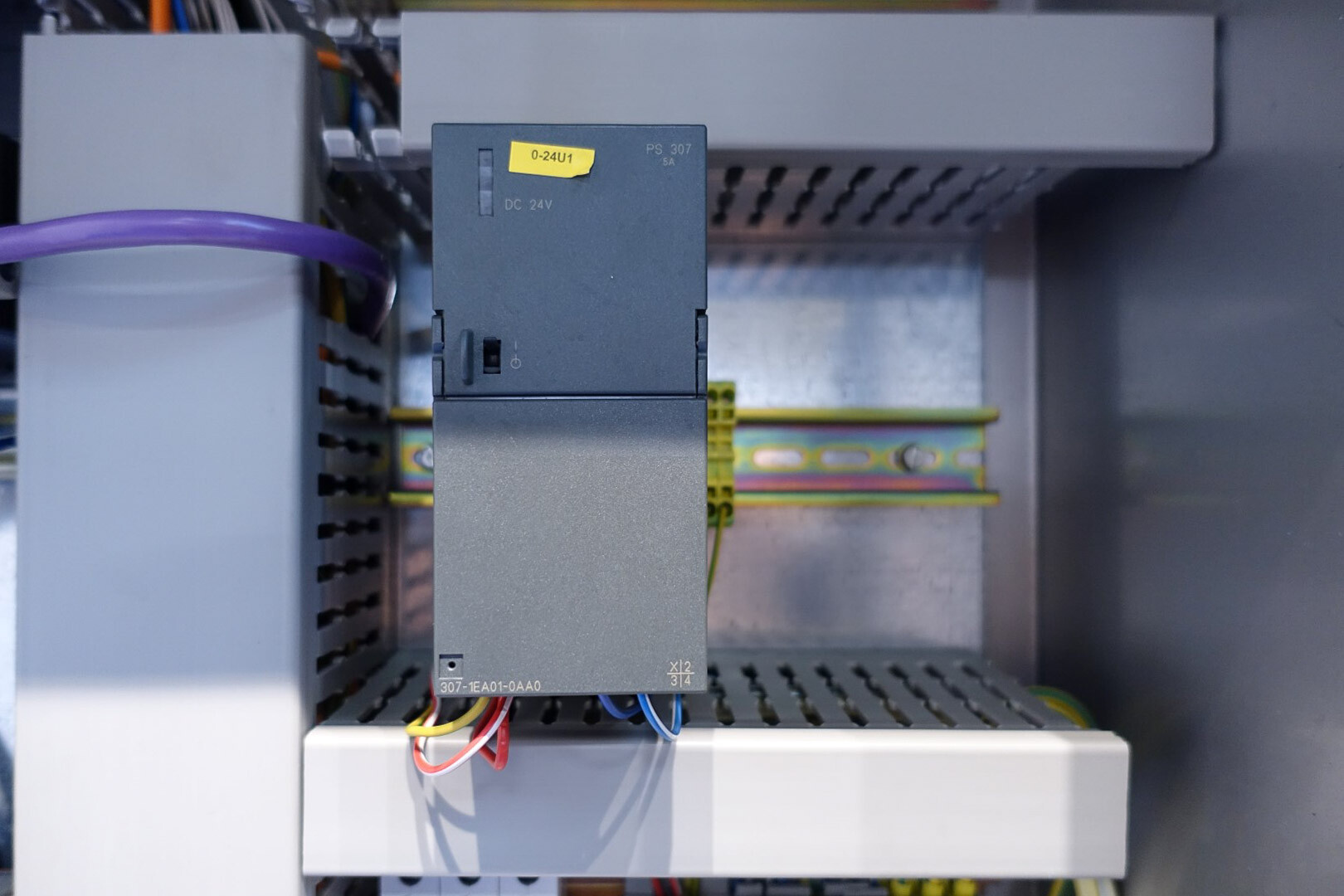

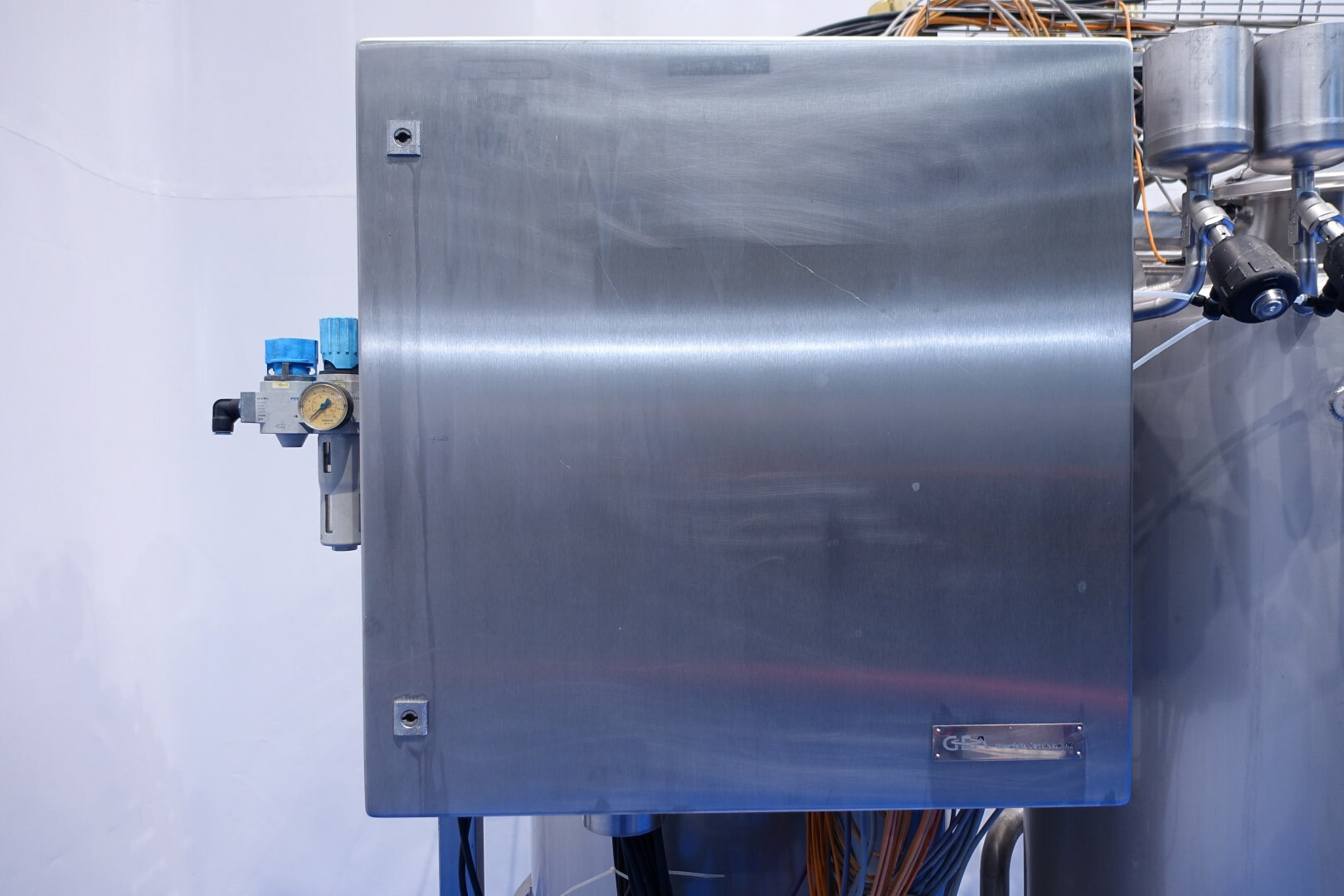

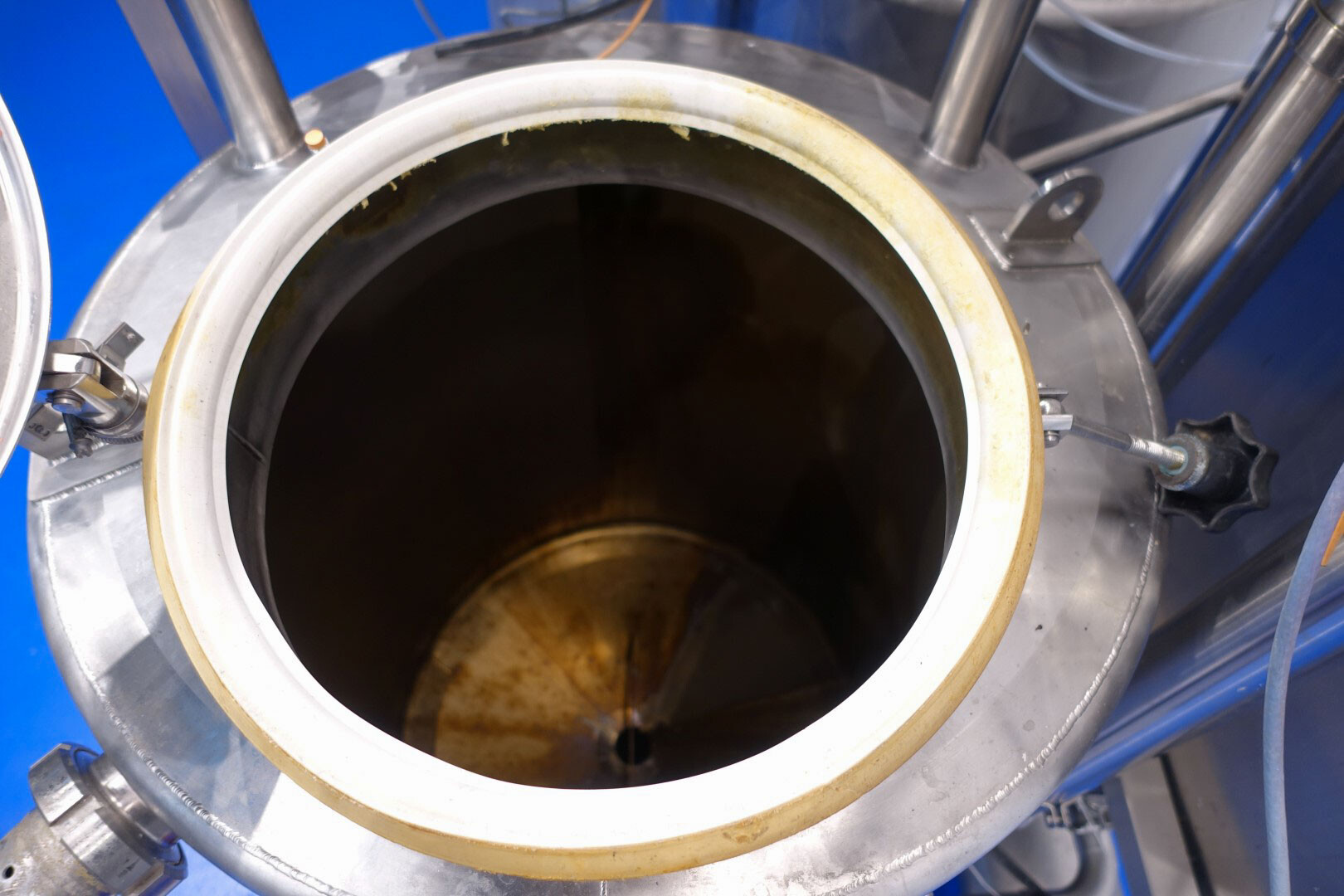

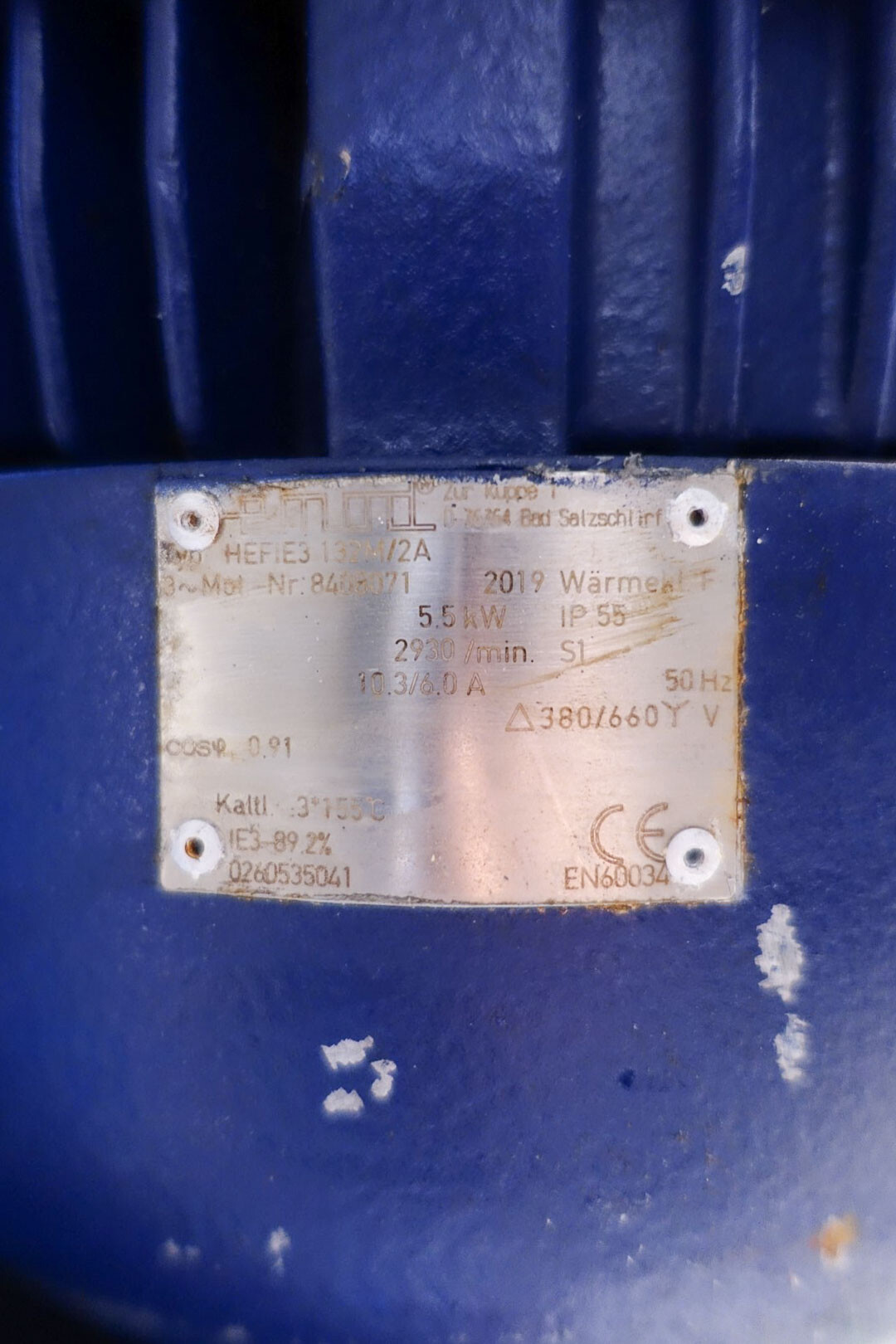

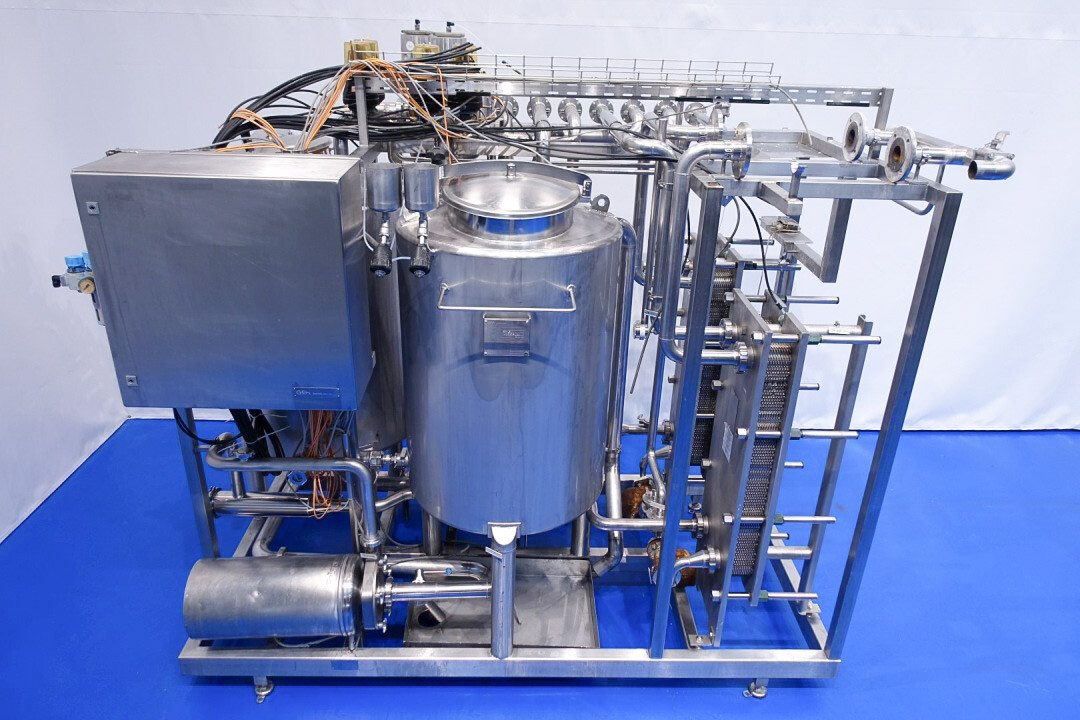

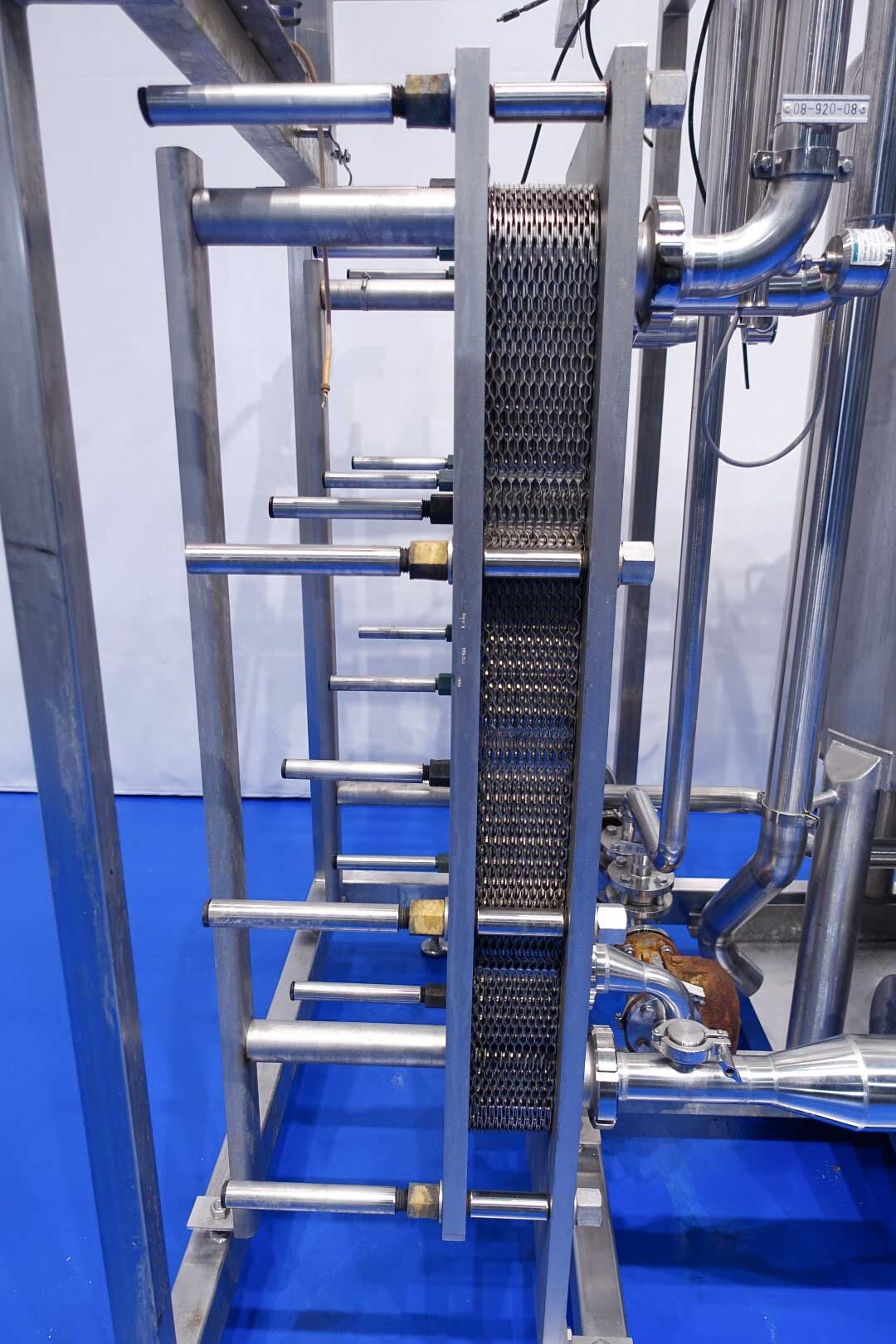

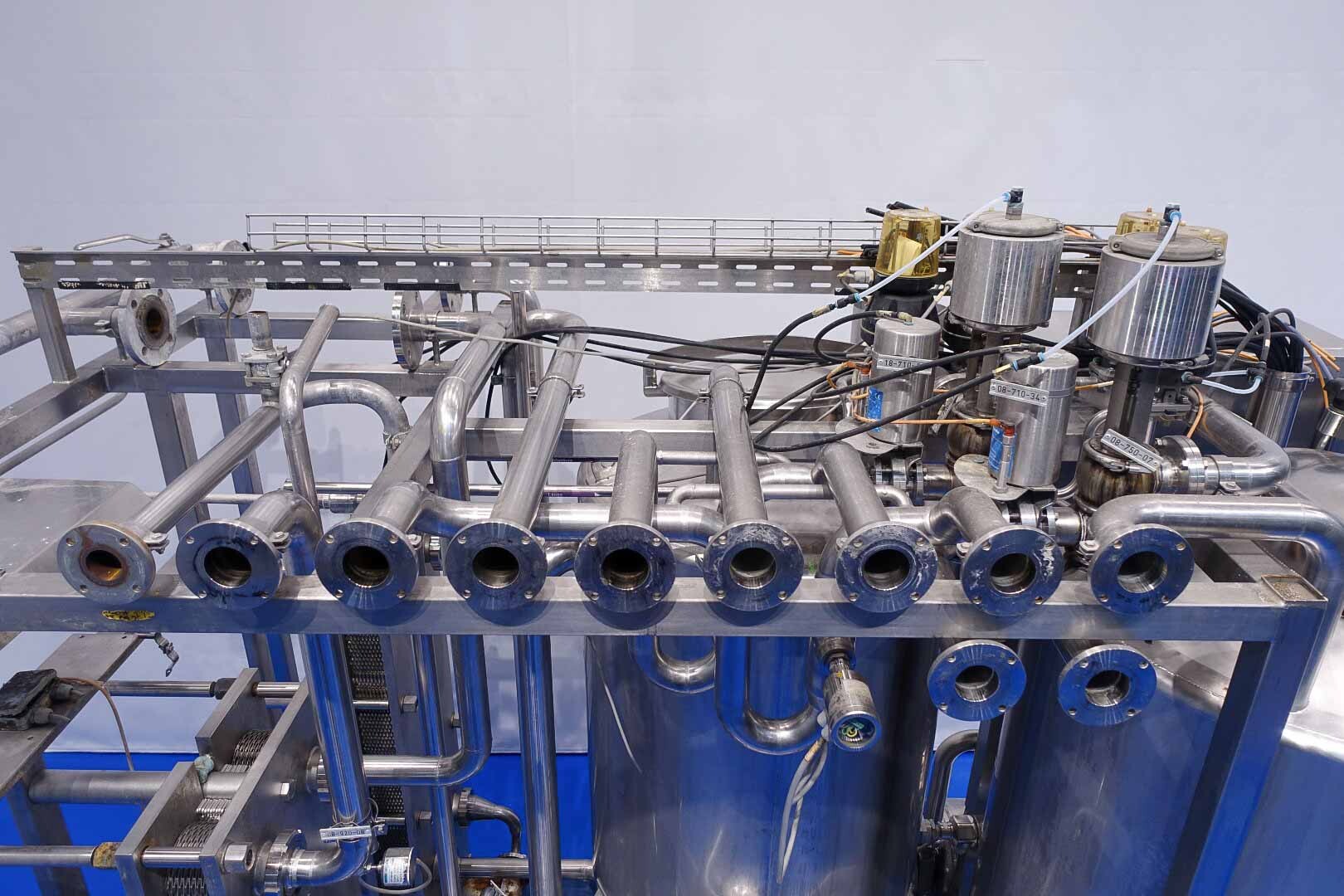

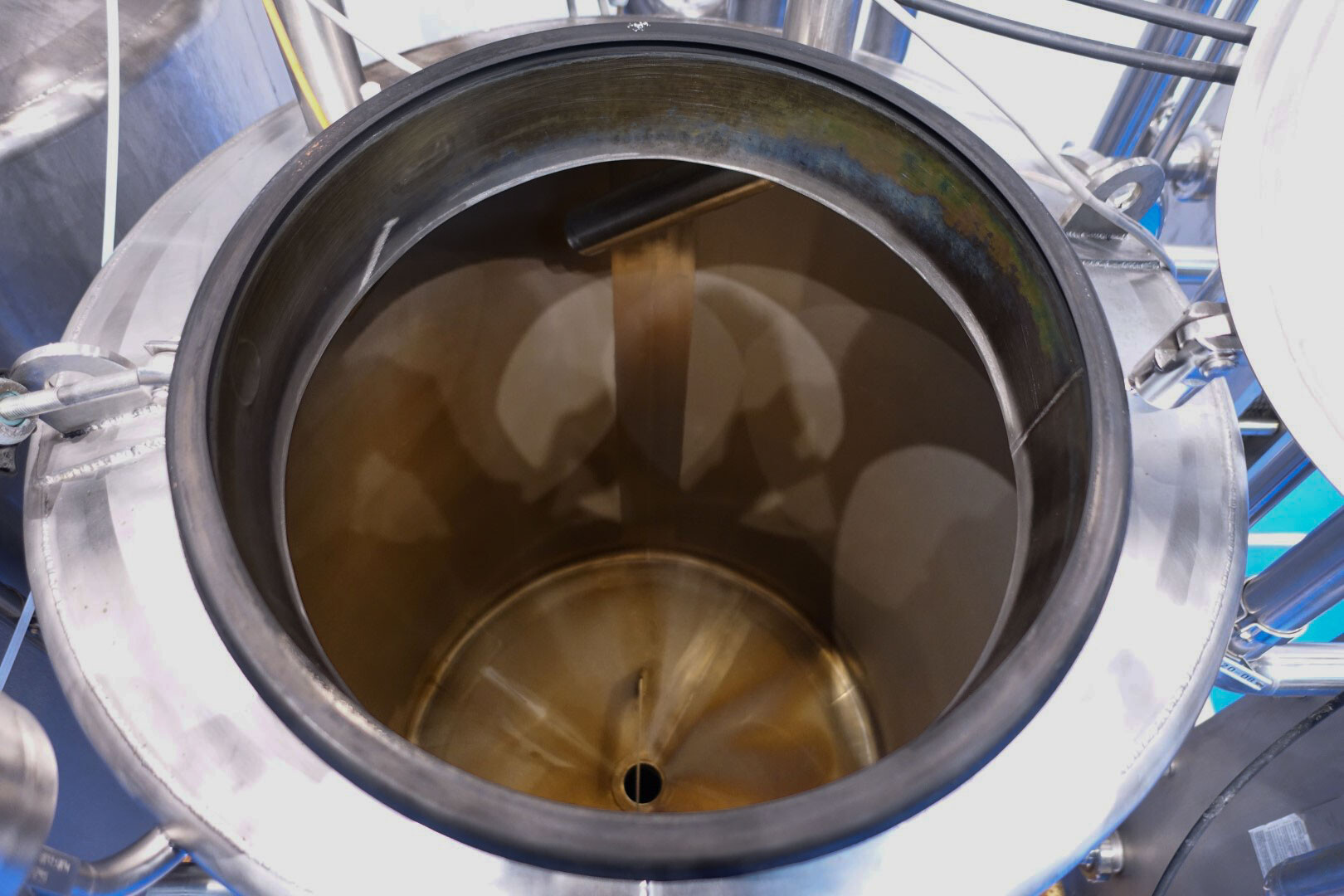

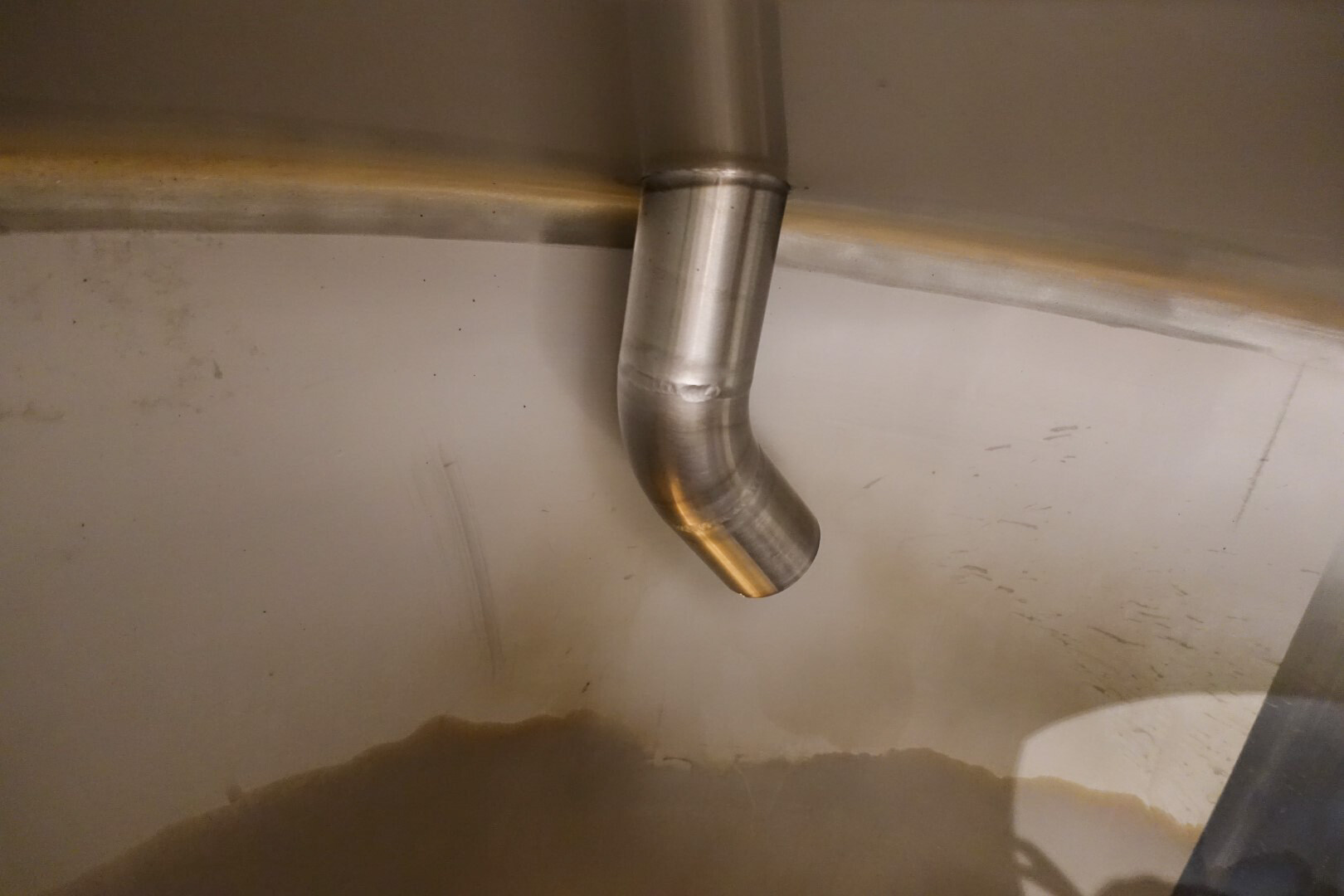

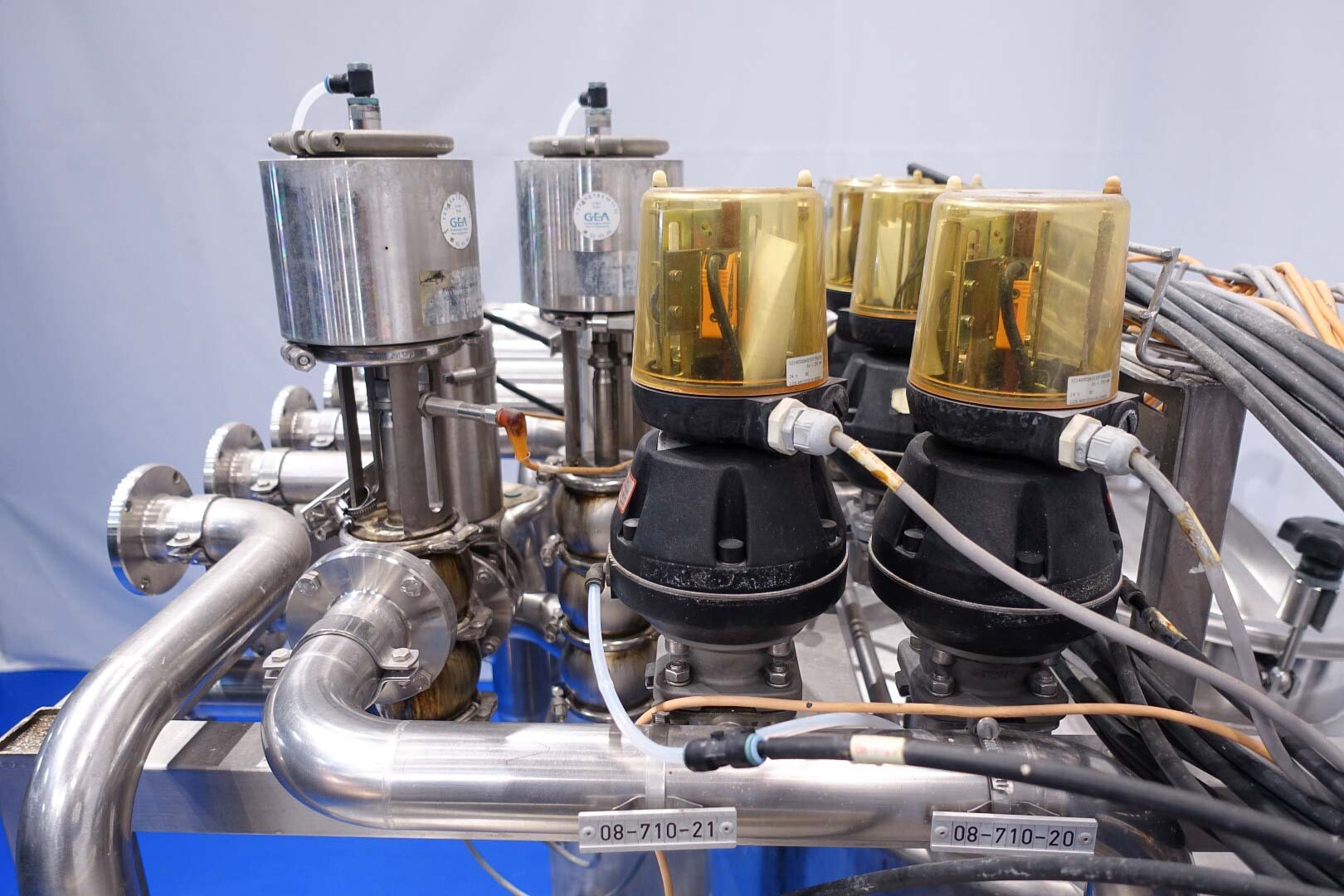

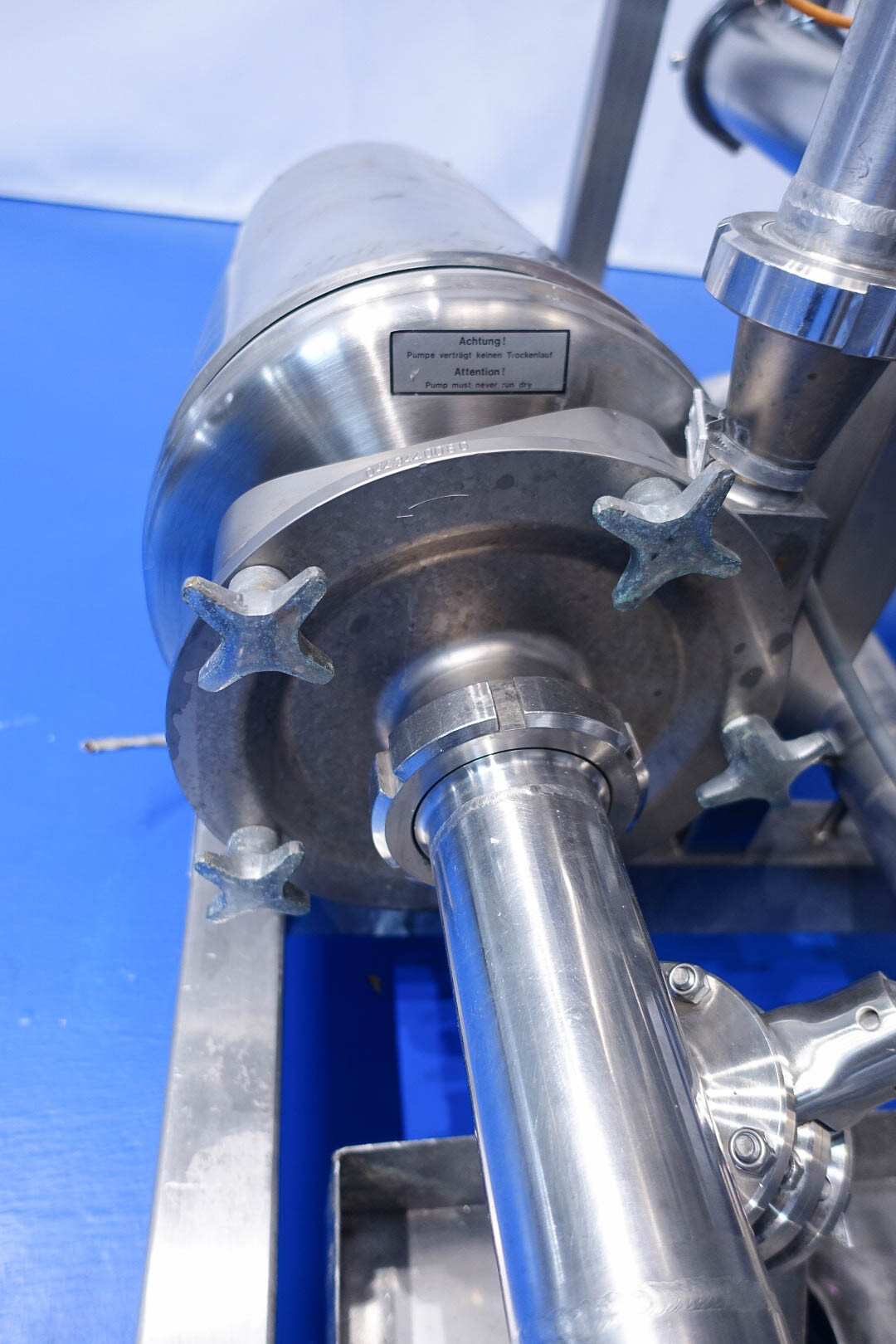

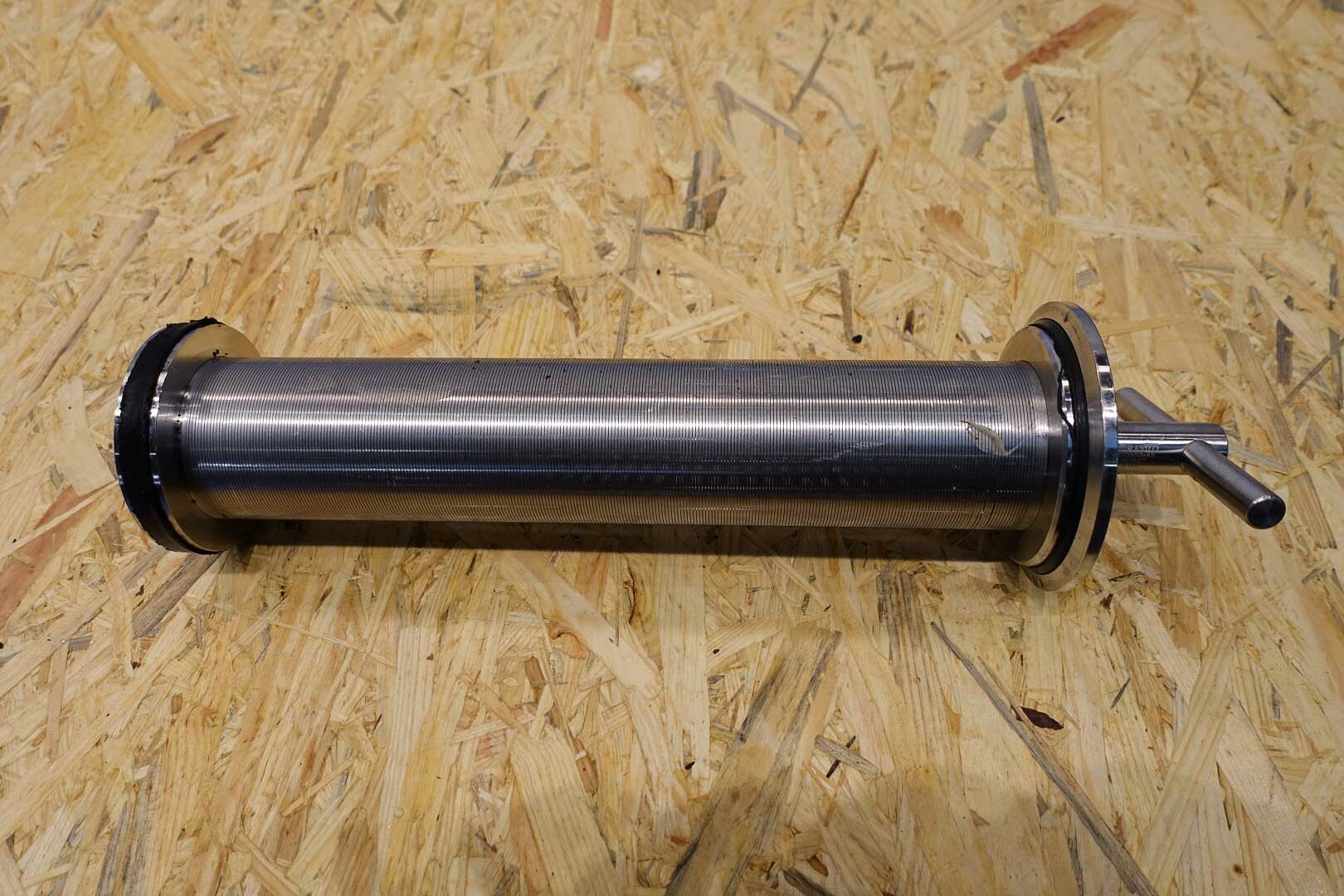

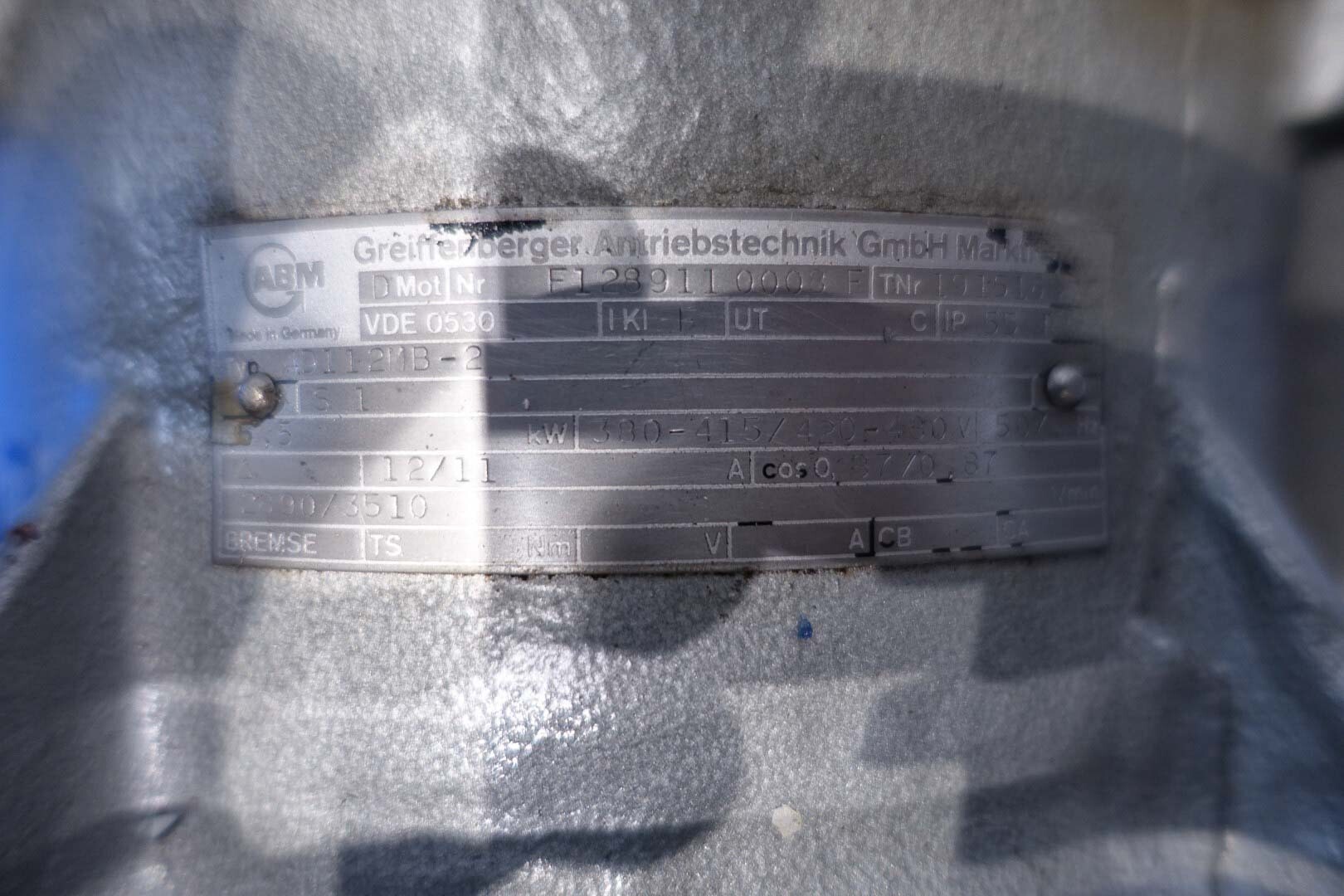

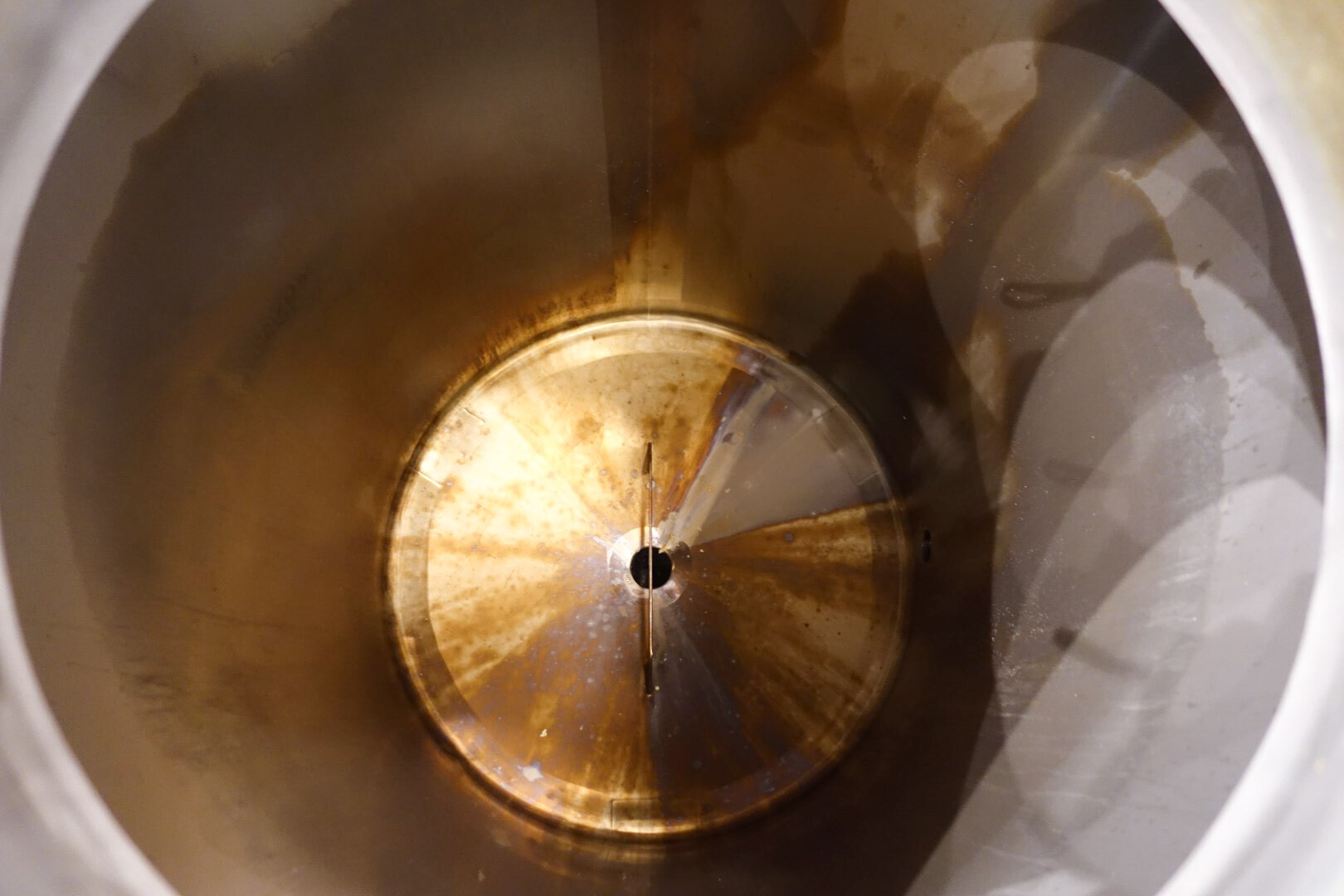

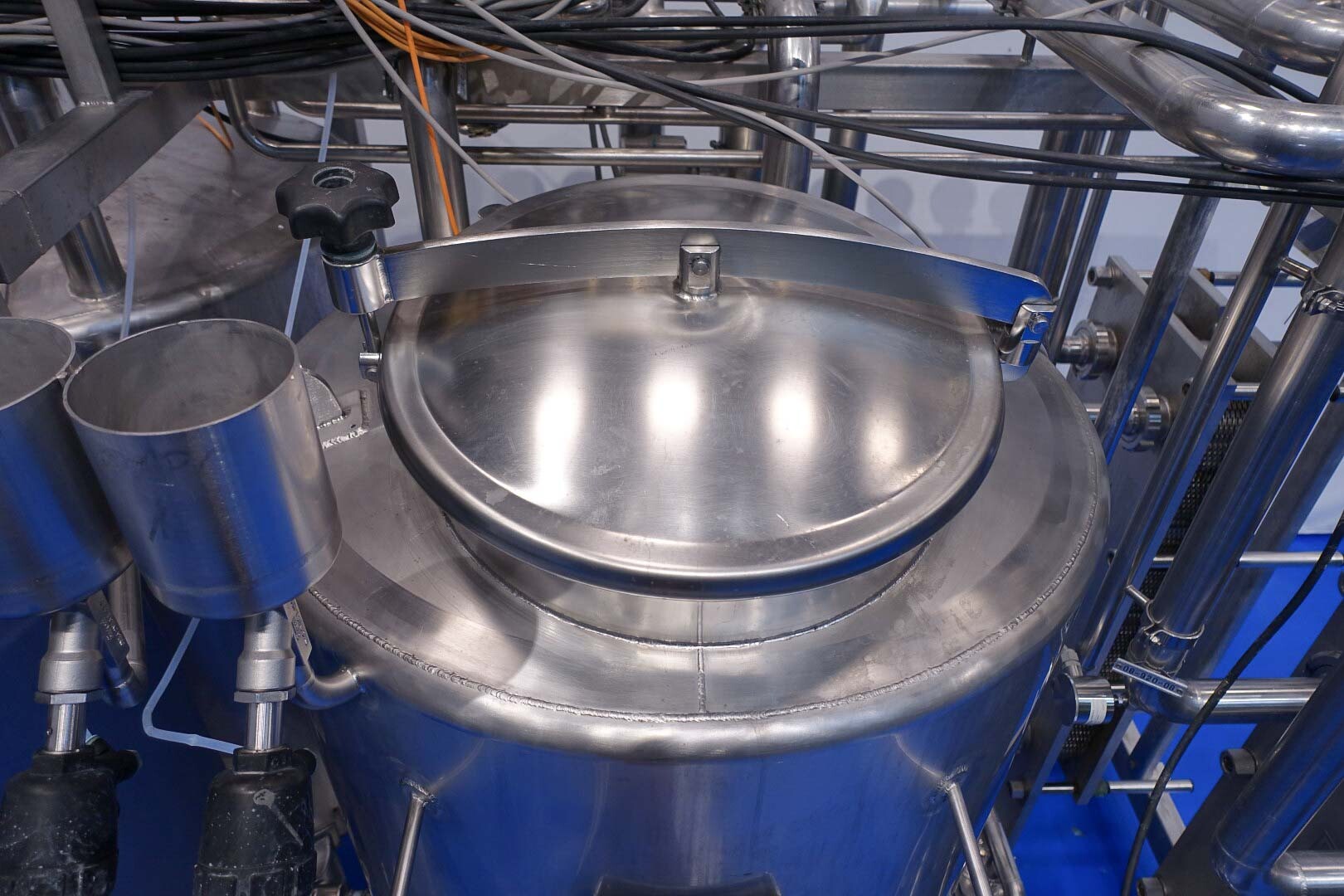

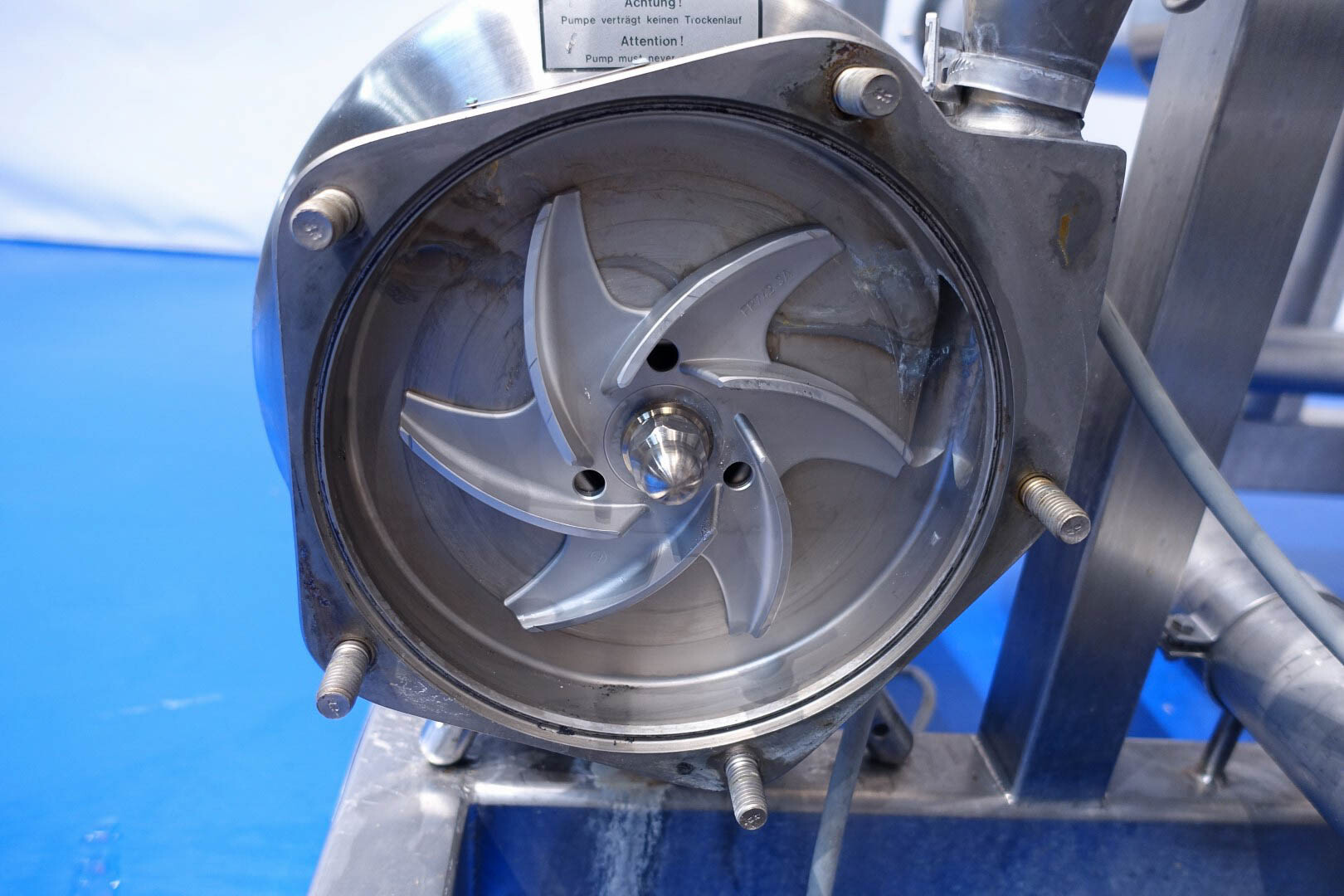

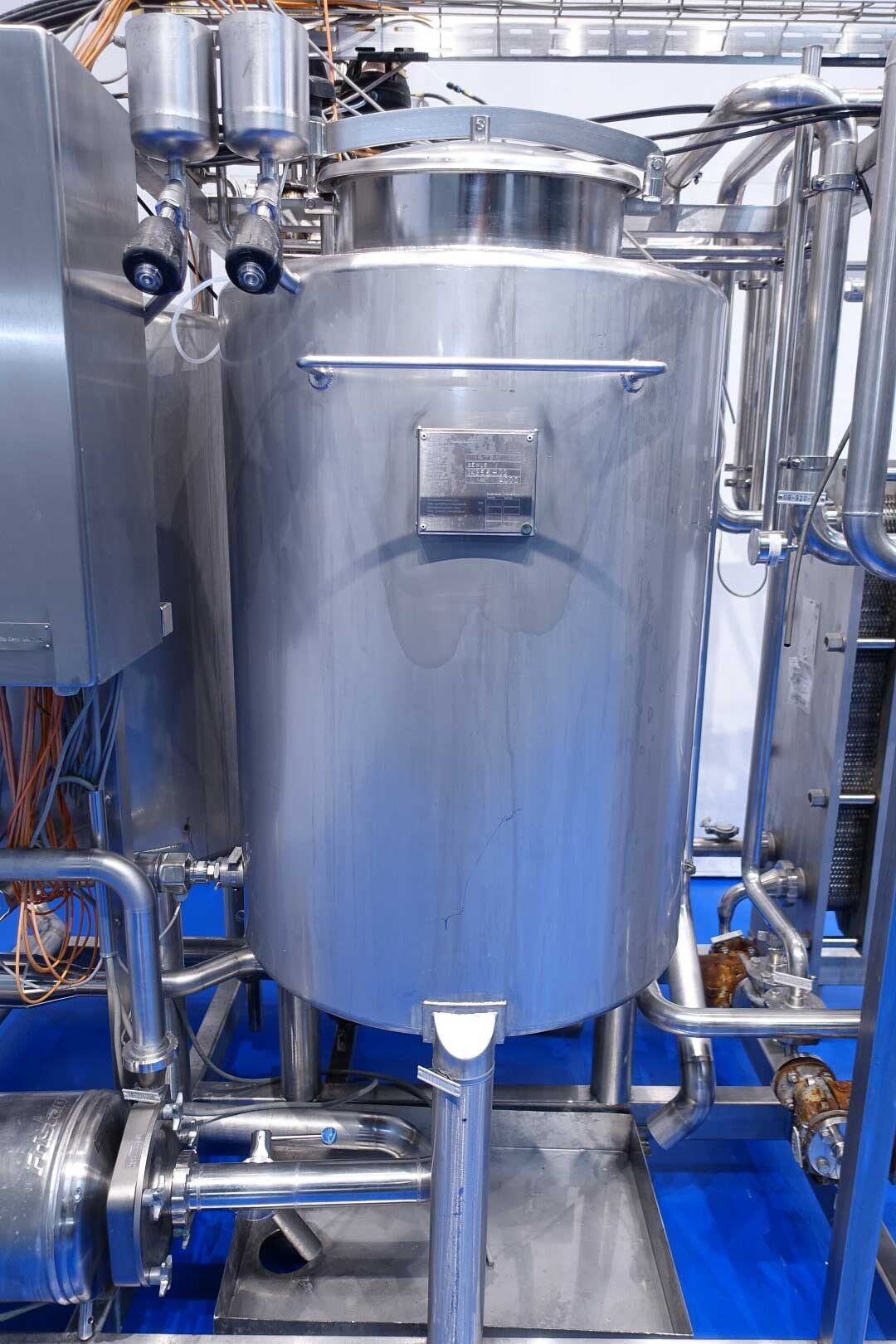

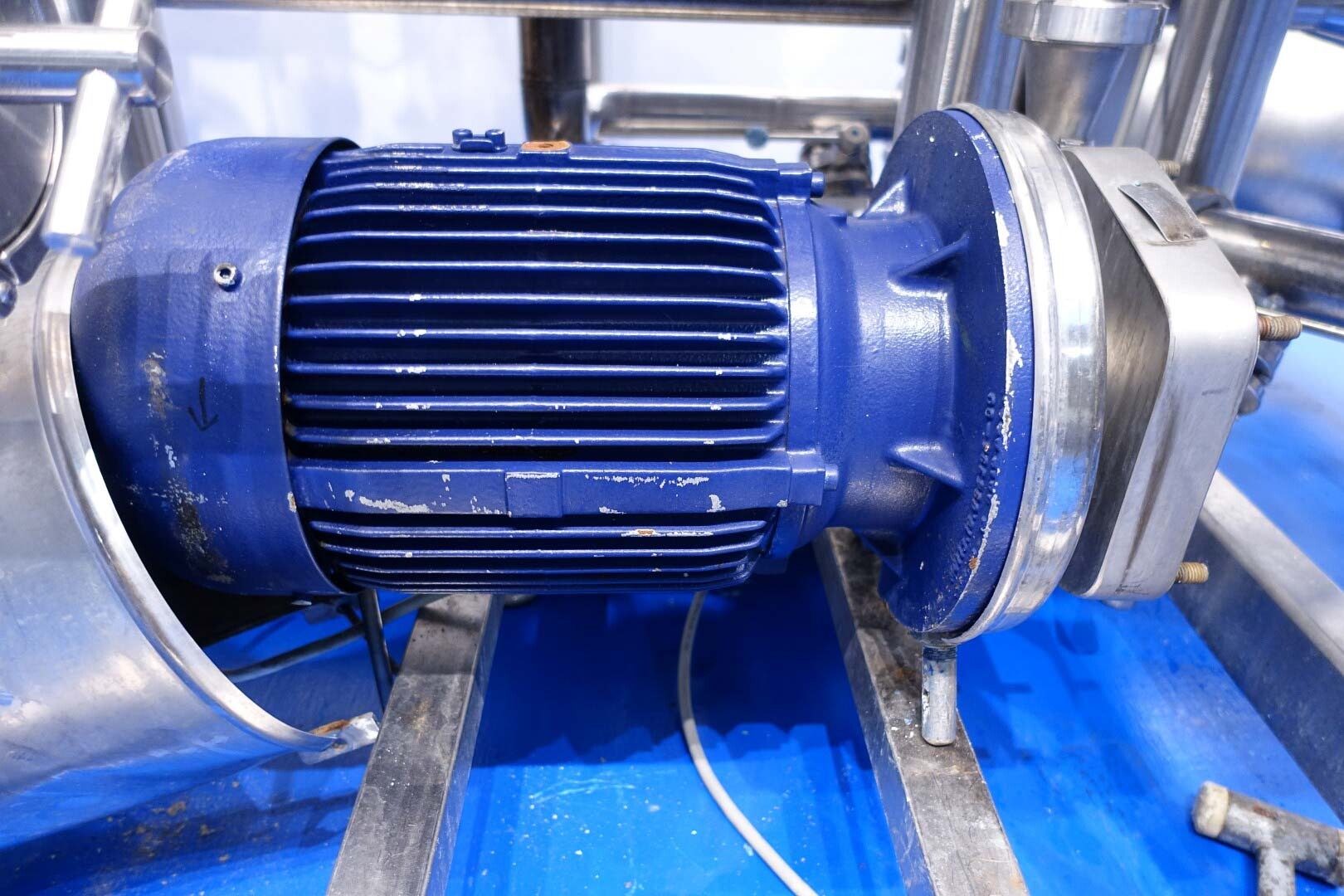

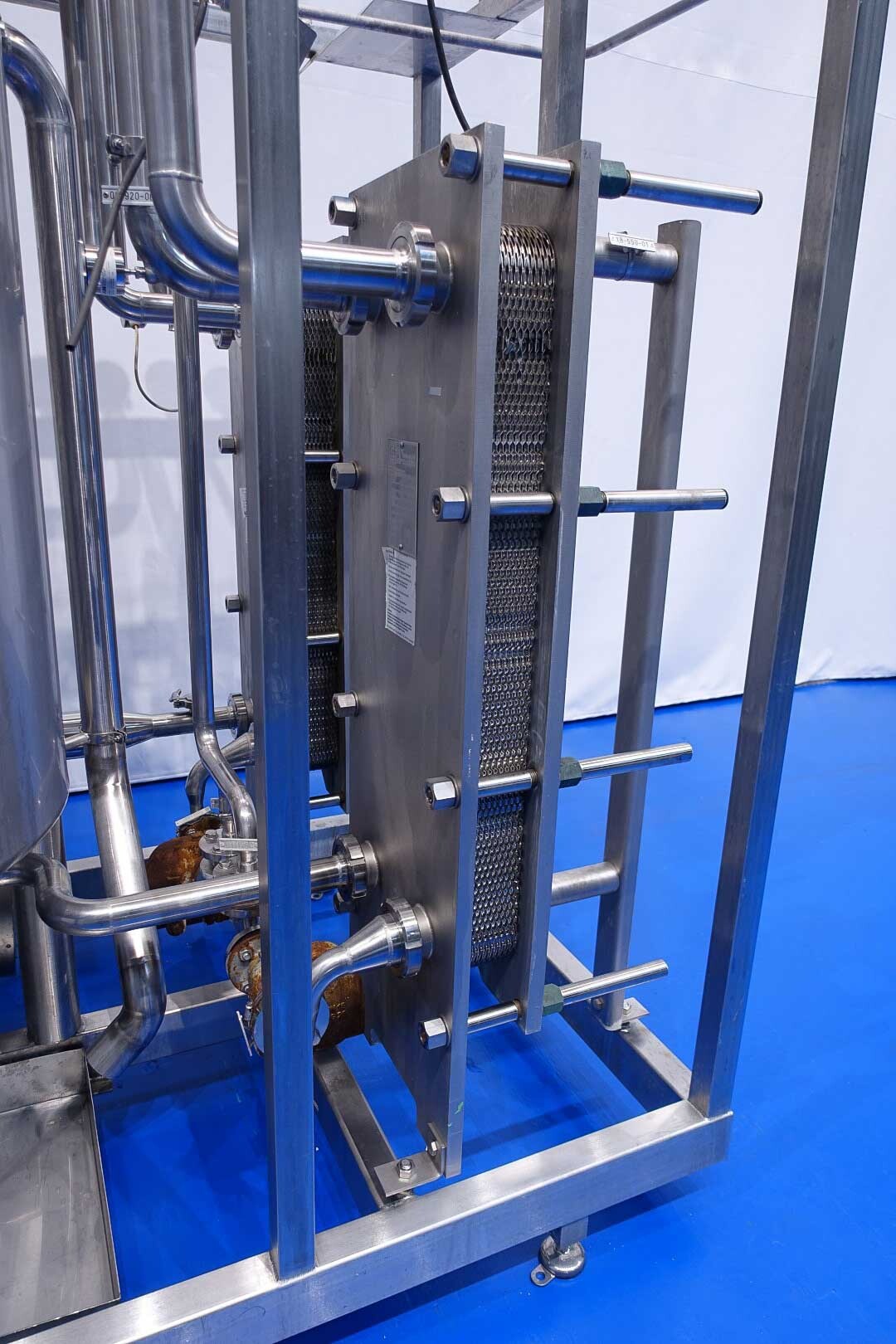

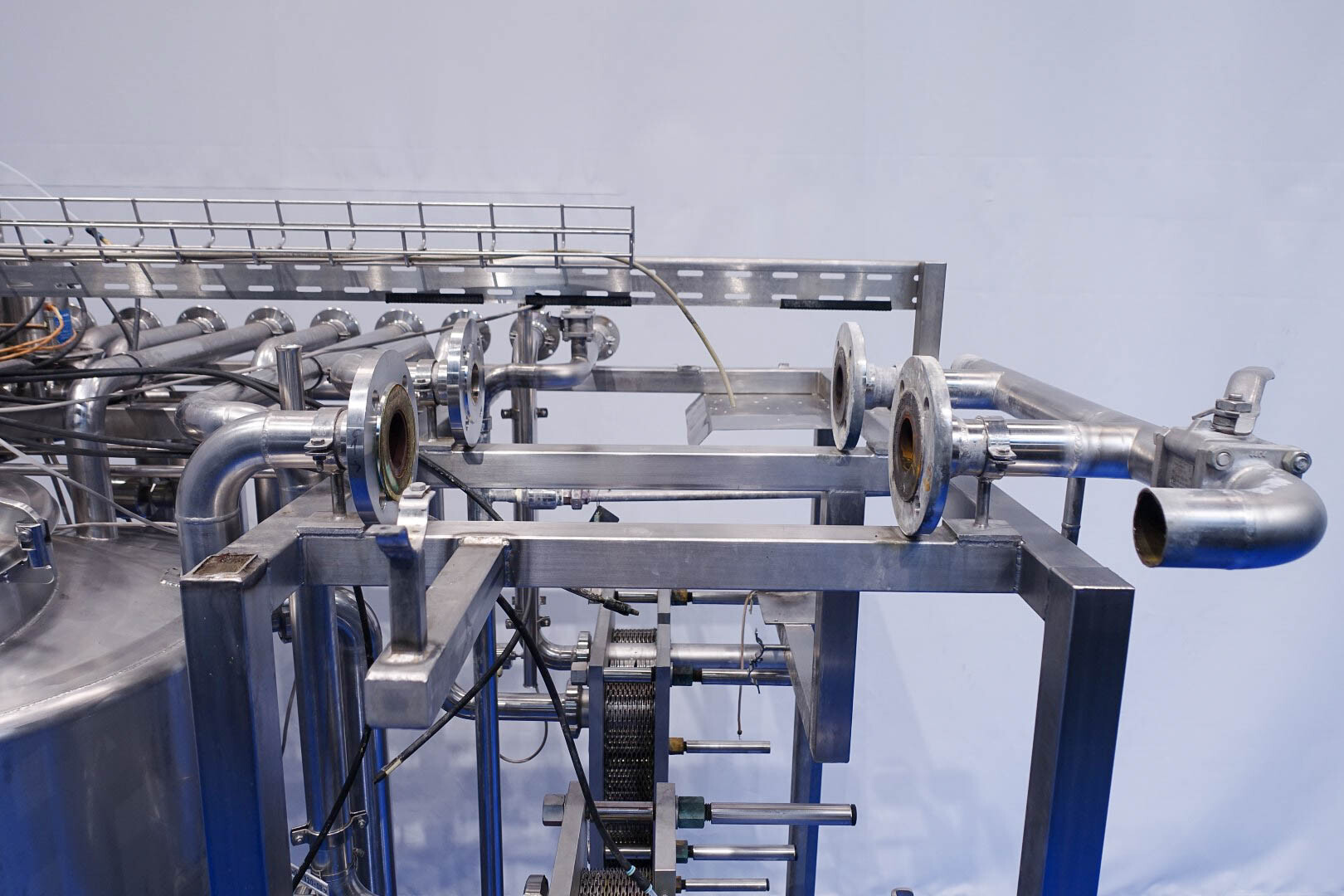

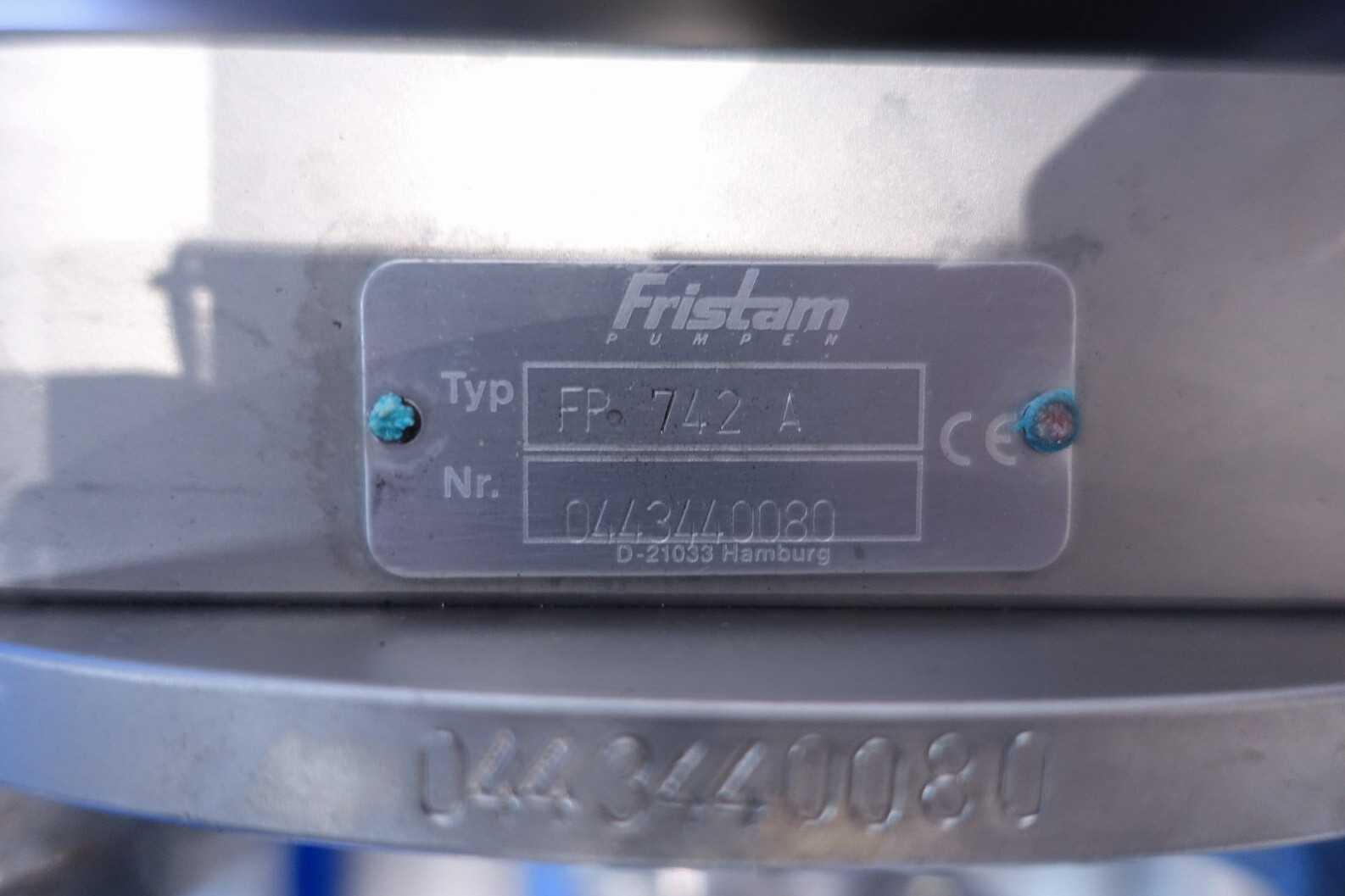

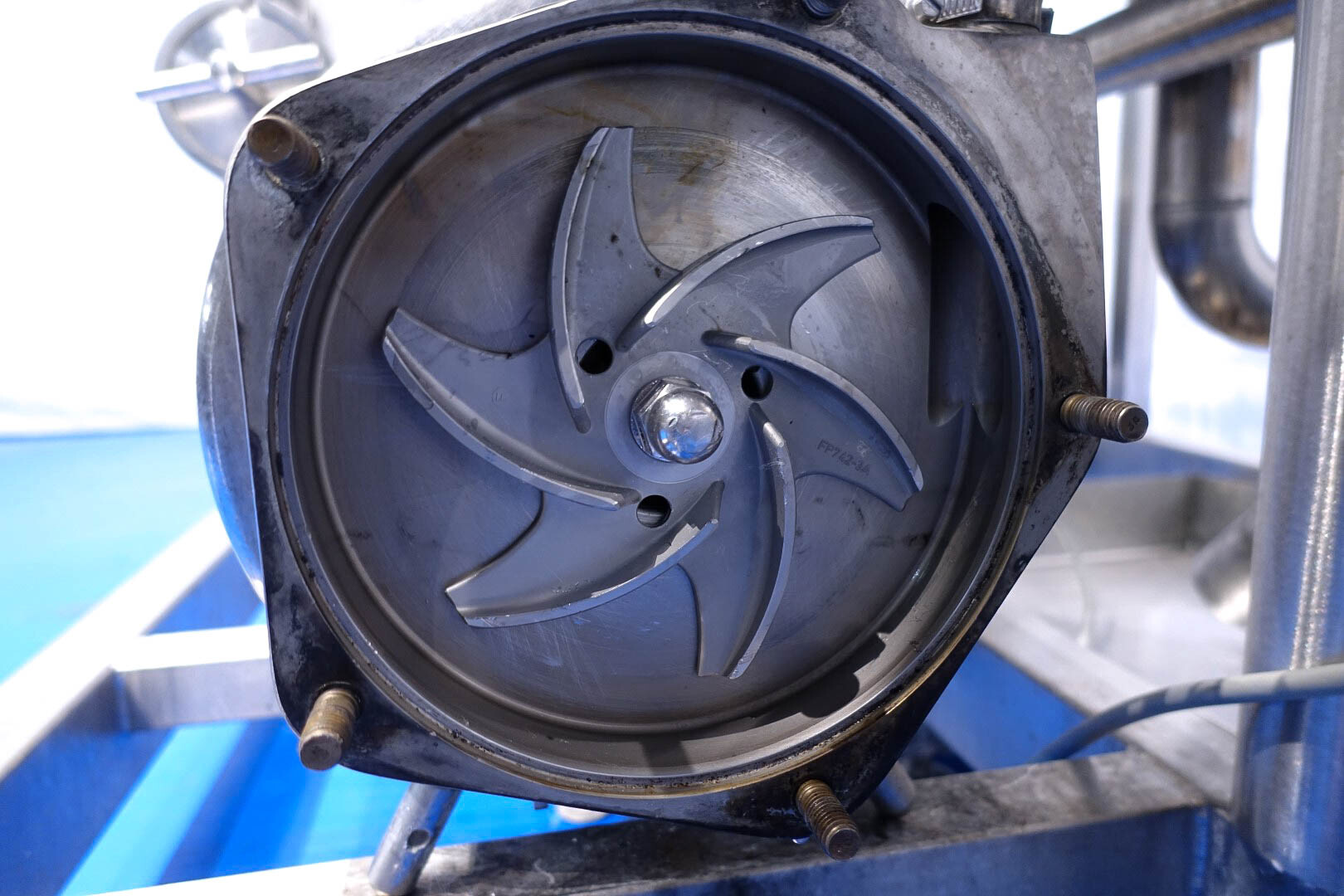

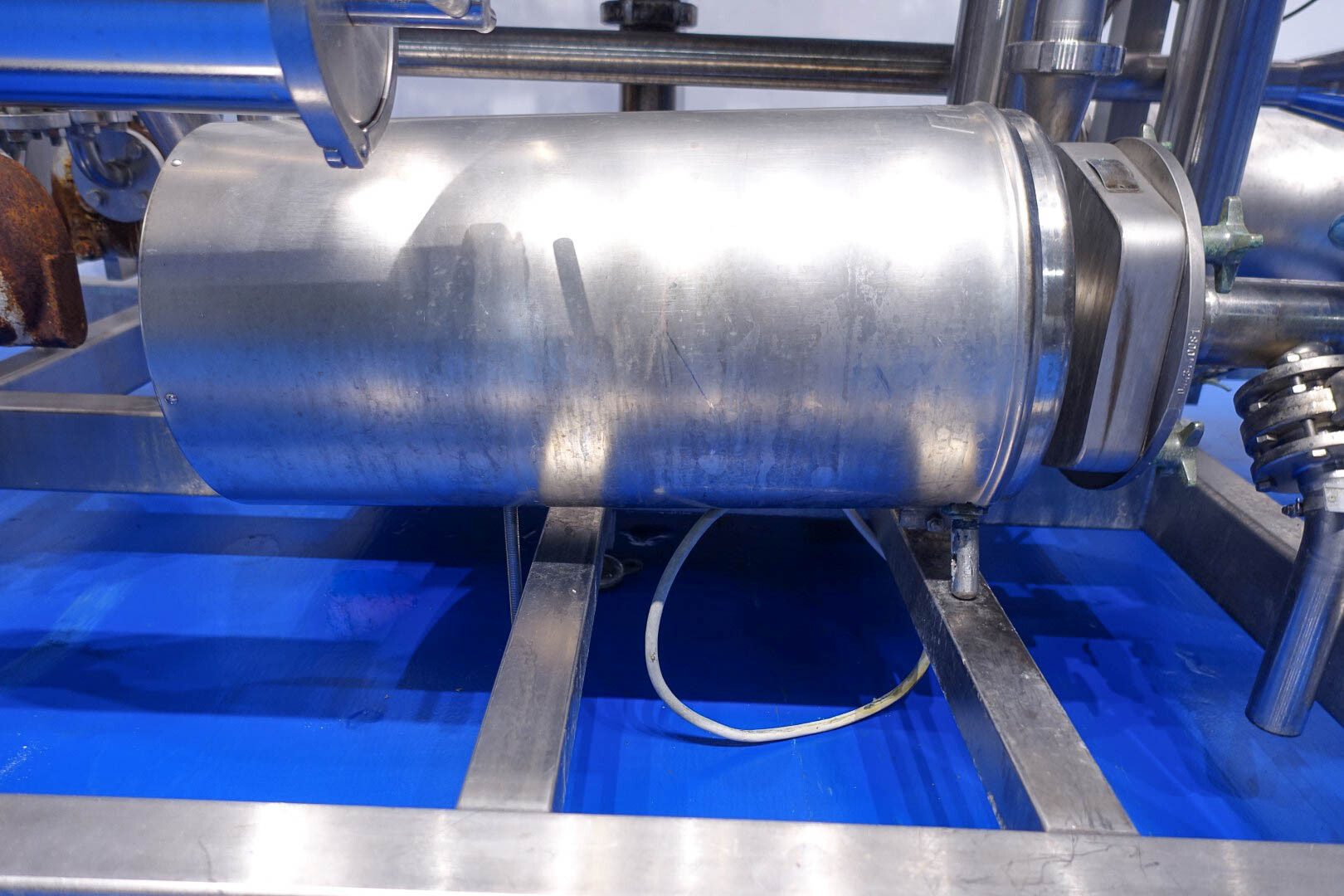

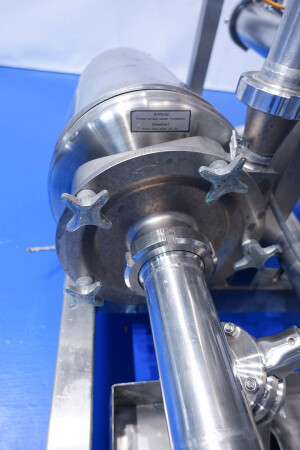

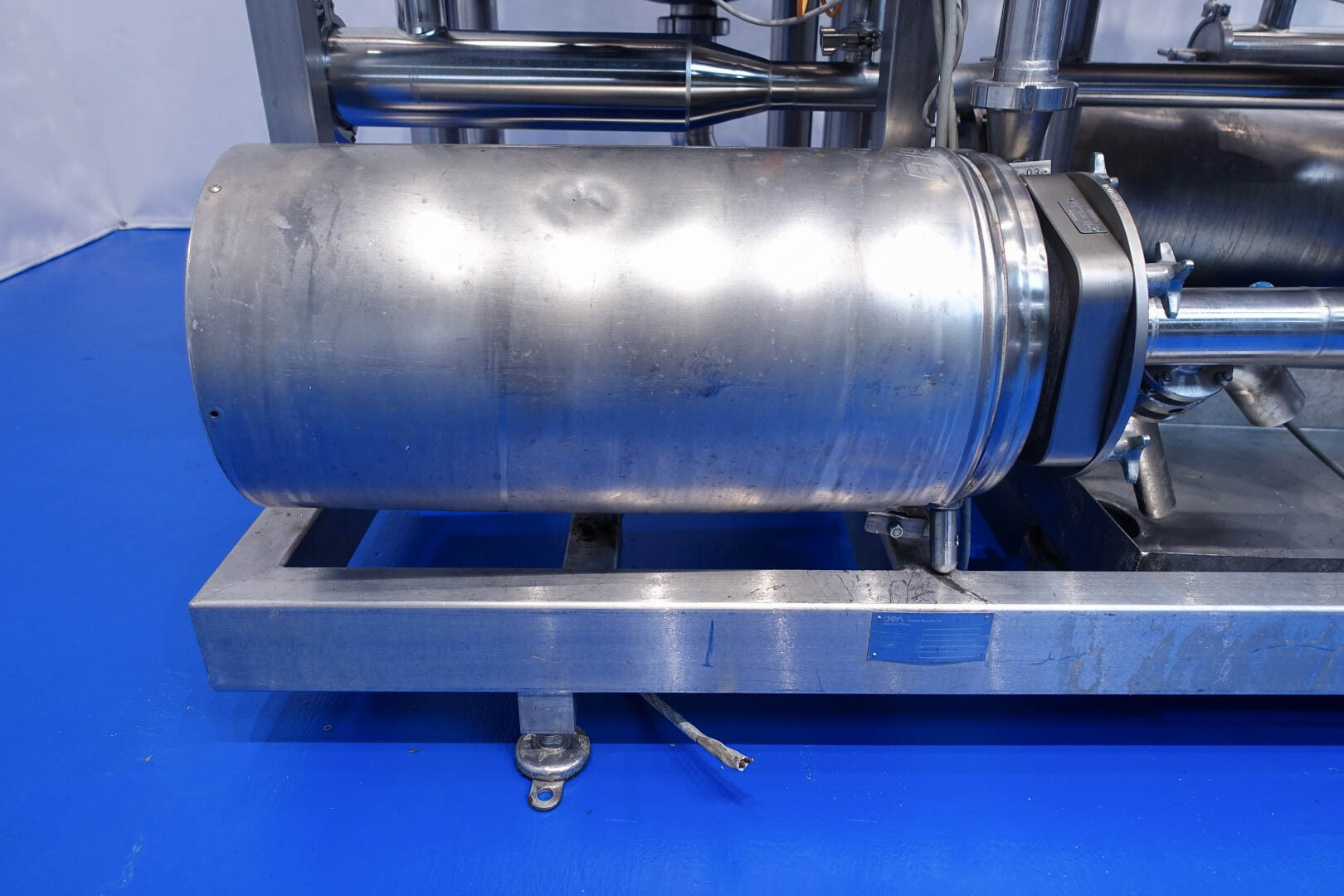

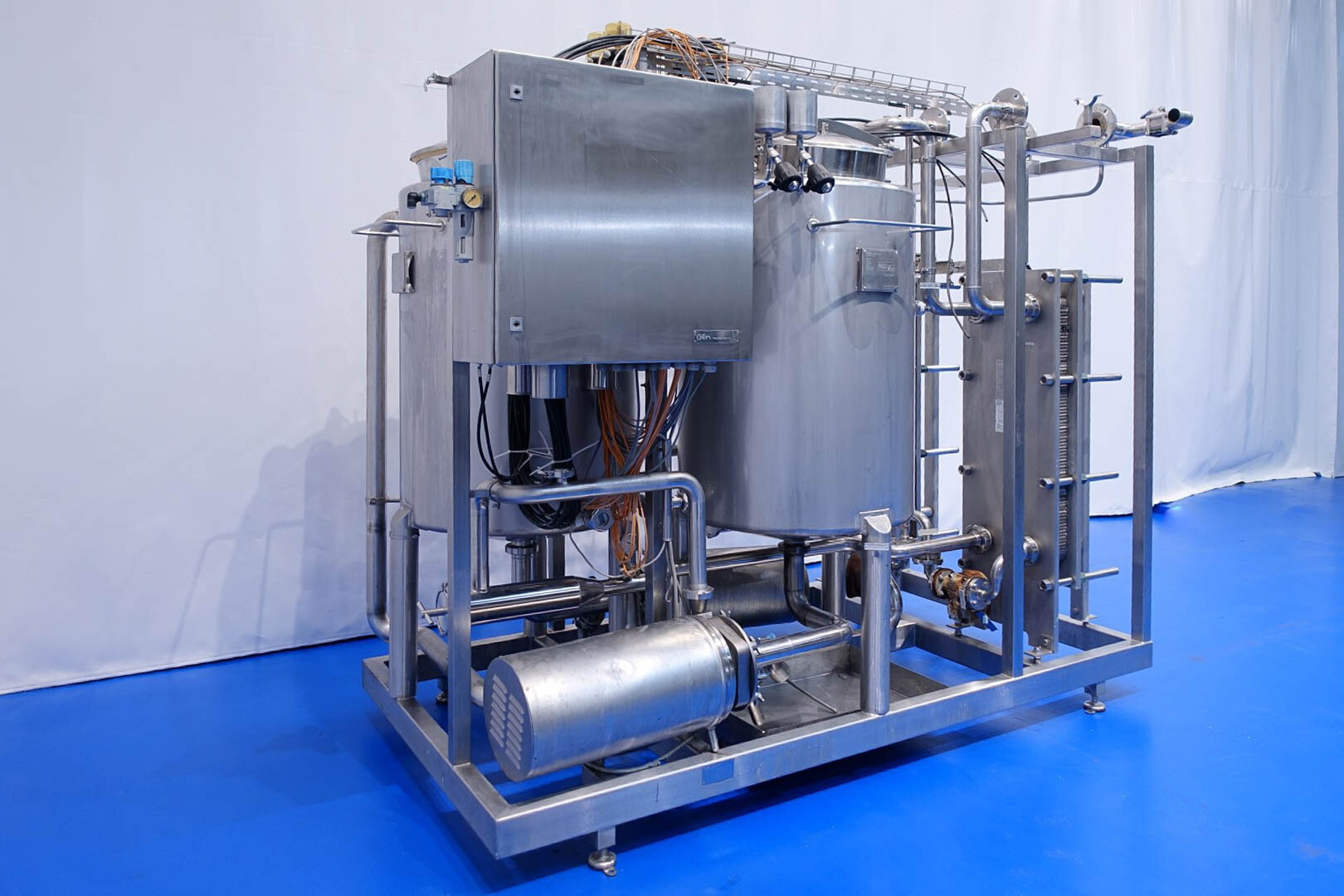

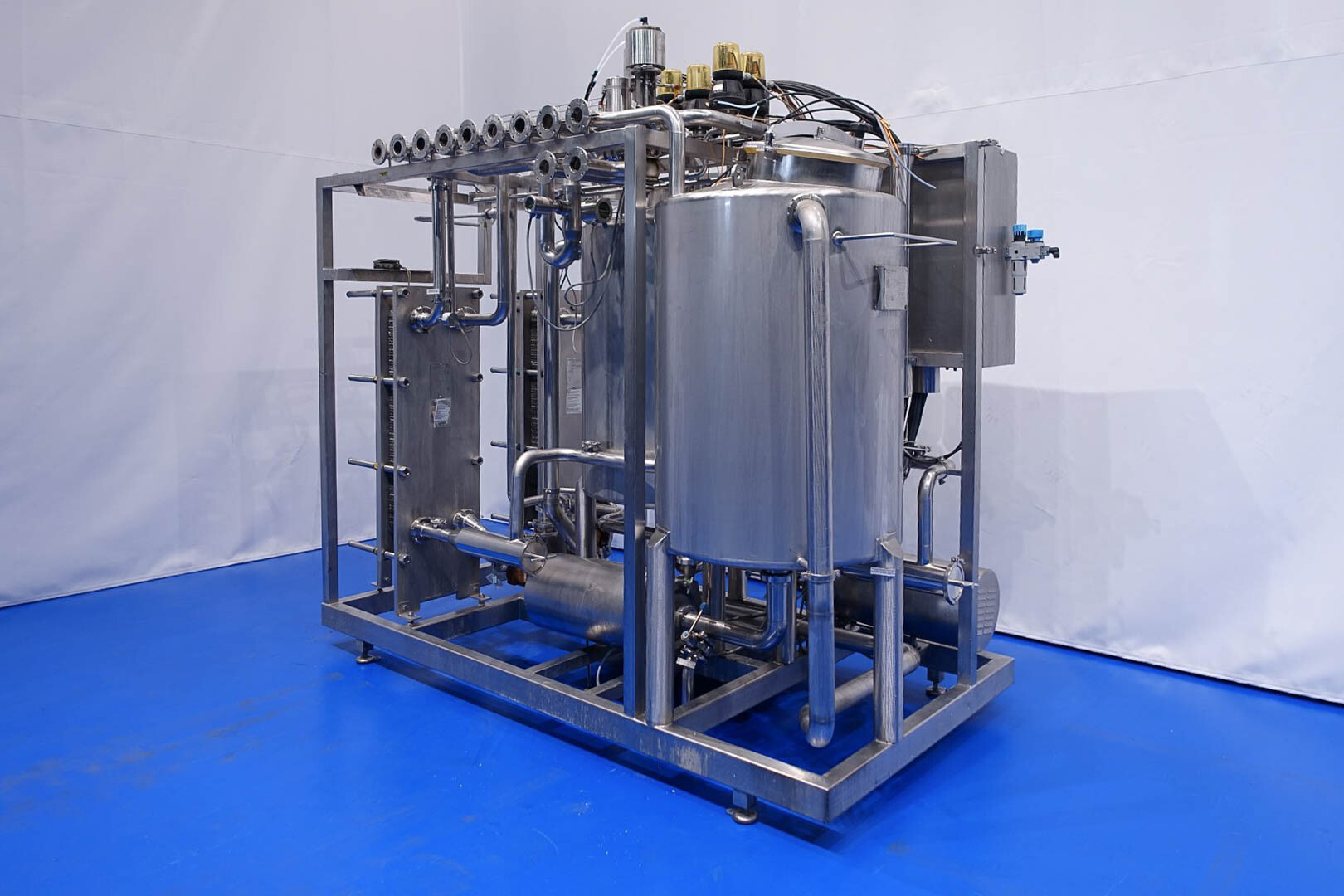

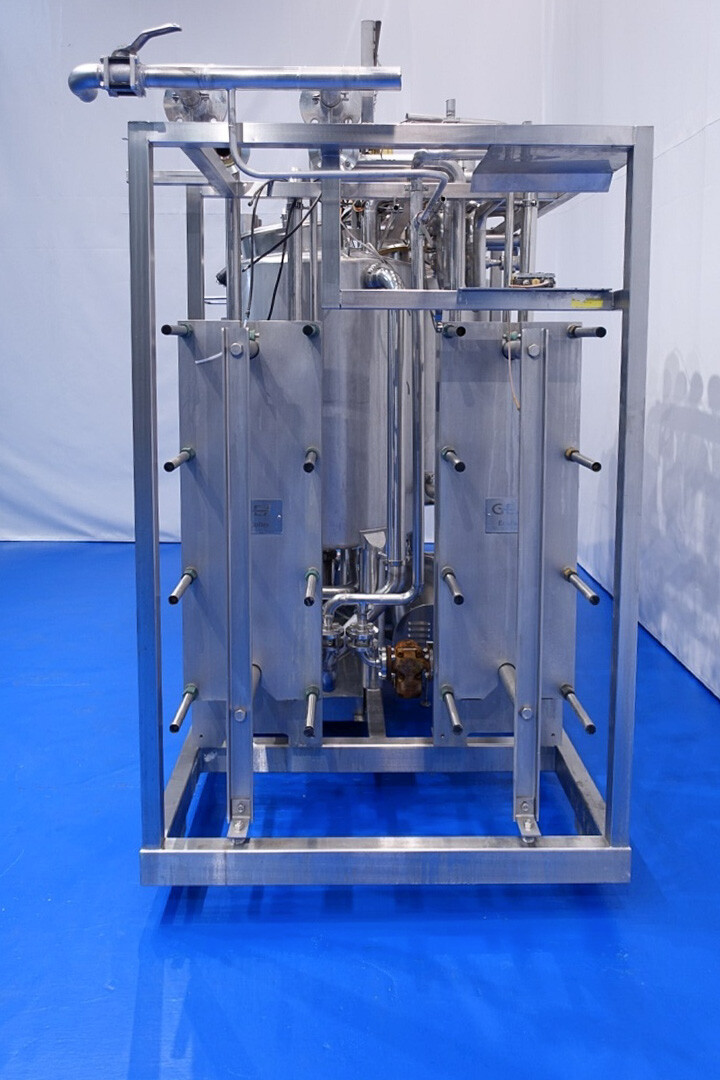

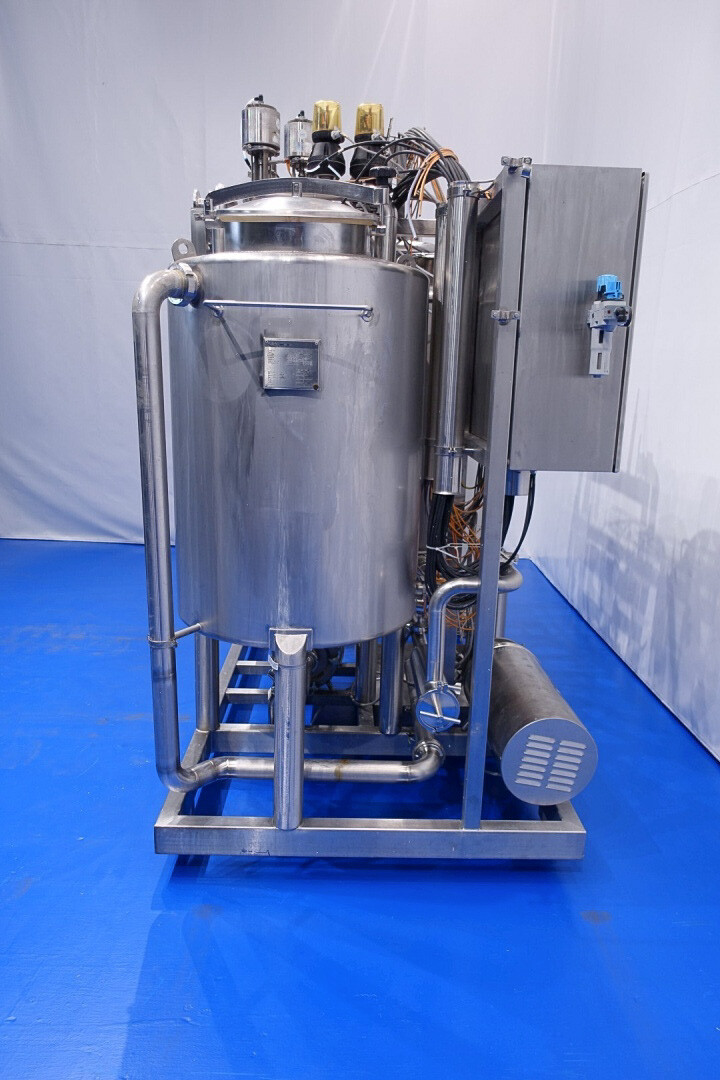

Skid mounted double CIP unit, 2 independent CIP units mounted in 1 frame. Each unit exists of: balance vessel 500 liter, Fristam centrifugal pump CIP + pump, filter and a plate heat exchanger. Pump details: Fristam type: FP742 A - no. 0443440080 motor: ABM 5,5 kW - 12 A - 2.890 rpm - 50 Hz - impellor Ø 175 mm - connections in: 2,5" Din - out: 2" Din. Pump 2 identical only no. 2 0443440081 and motor: 5,5 kW - 10,3 A - 2.930 rpm., both giving 25-50m3/h at >4bar - connections in: 3" Din - out: 2" Din. 2x GEA plate heat exchanger to heat the cleaning detergent to the set temperature. Both type: VT20CDS-C-10 - no.: 170/13975 and 170/13976 - 1 section 22 plates. 11x pipes at the side of skid with connections 2" Flange. Controls: Siemens remote I-O box. Complete with piping for condensate and cip + return valves, 2 small vats connected to the vat for enzymes adding. (Only steam control valves missing)
