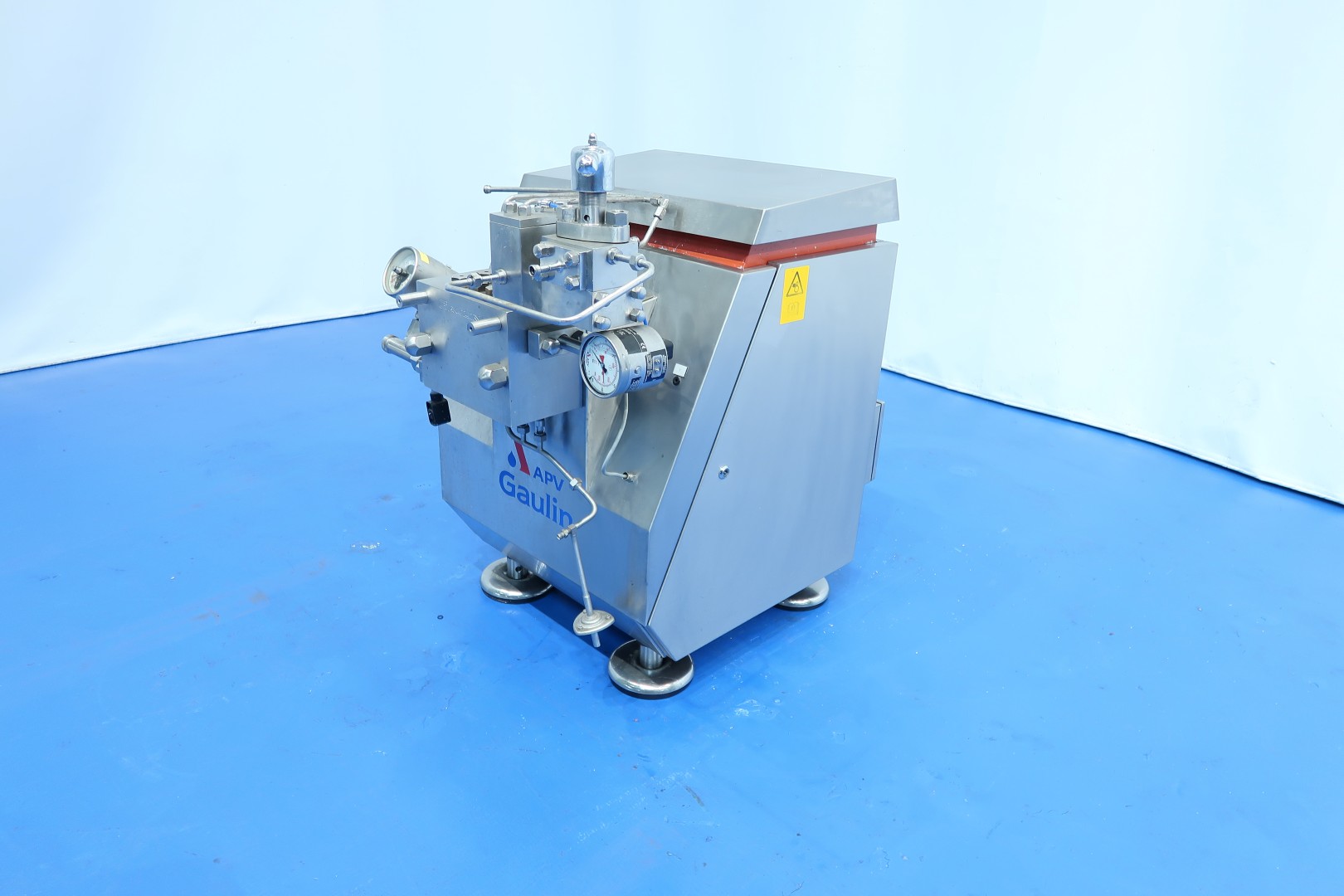

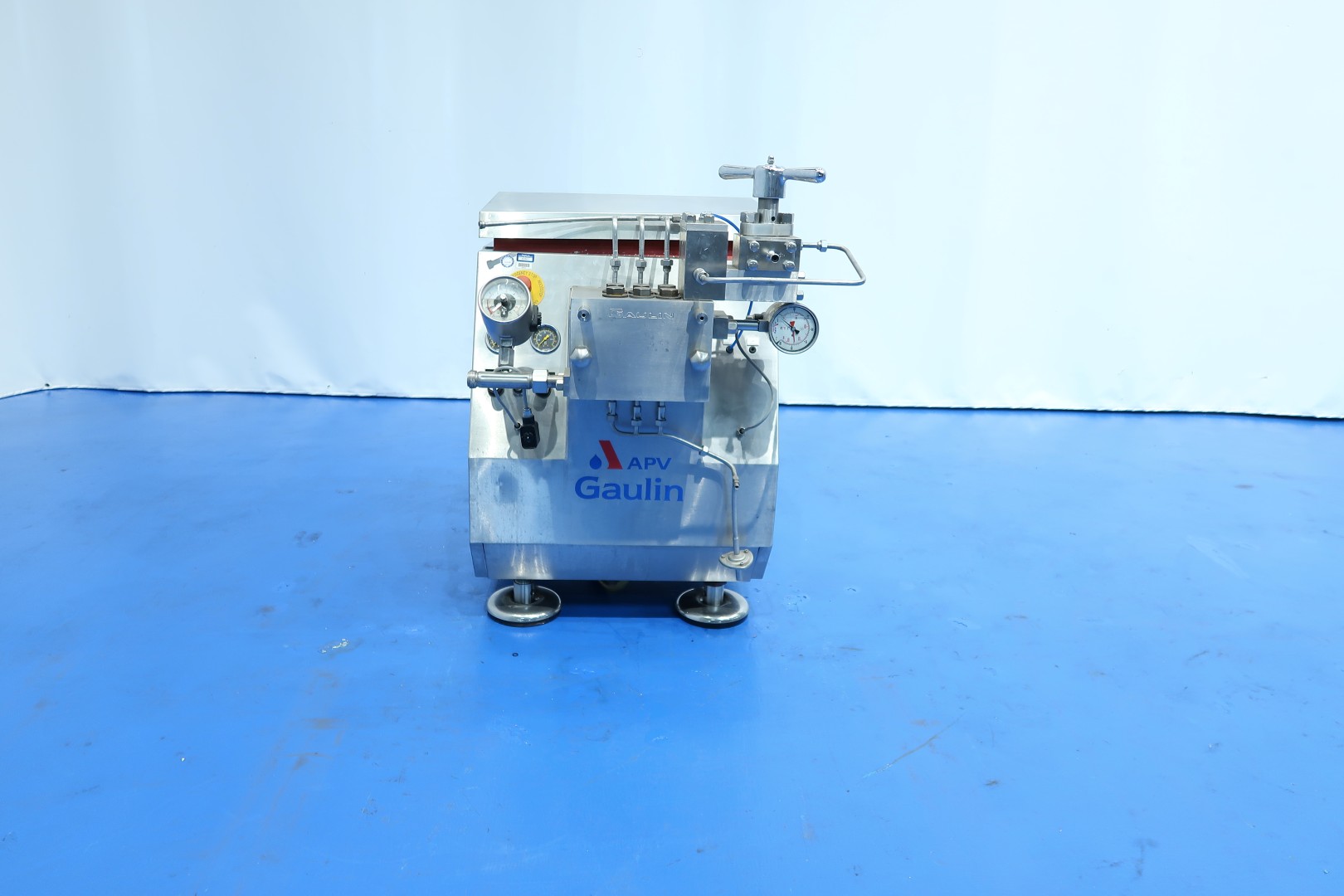

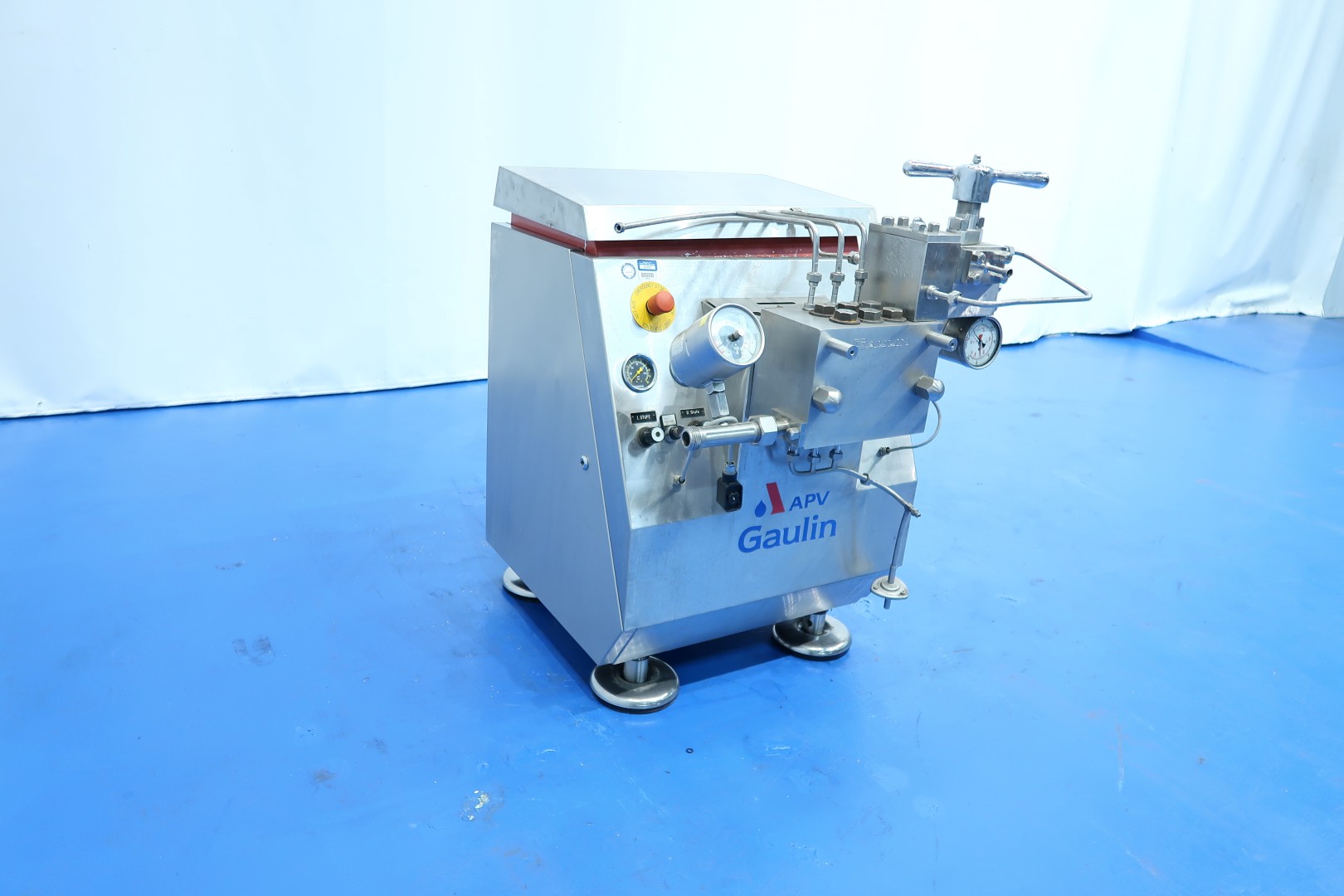

APV 33 Gaulin 5-6 PX

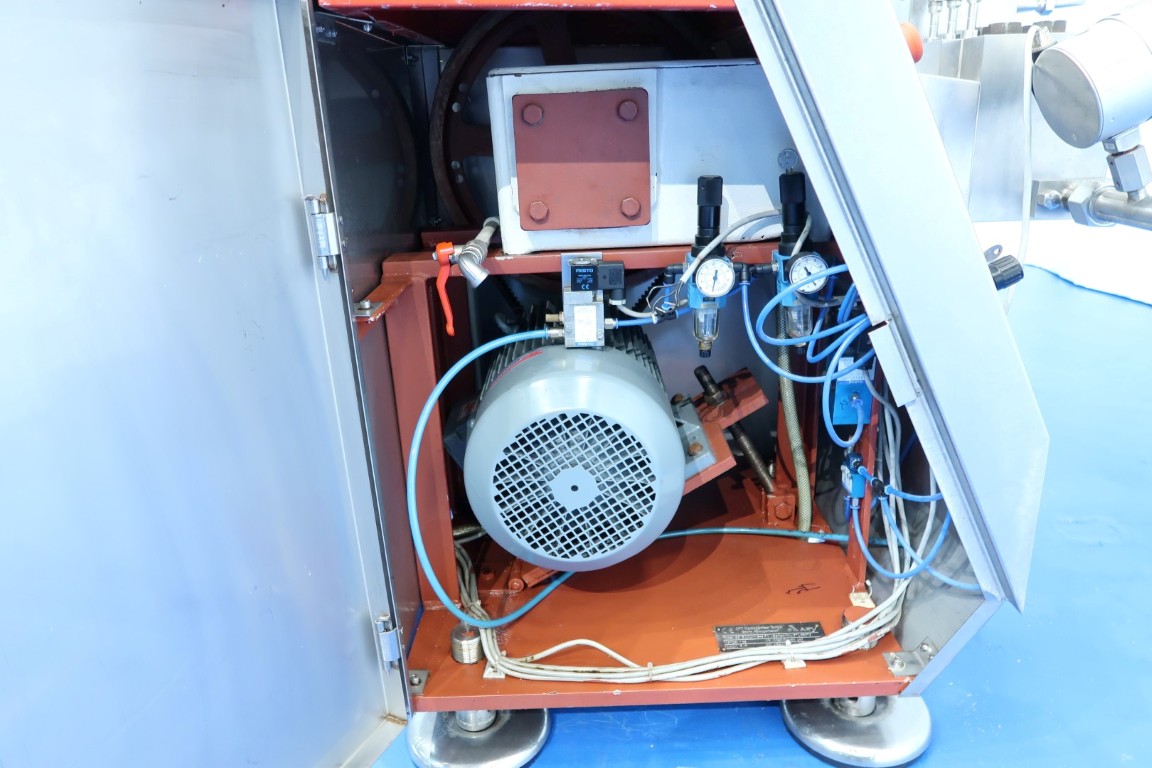

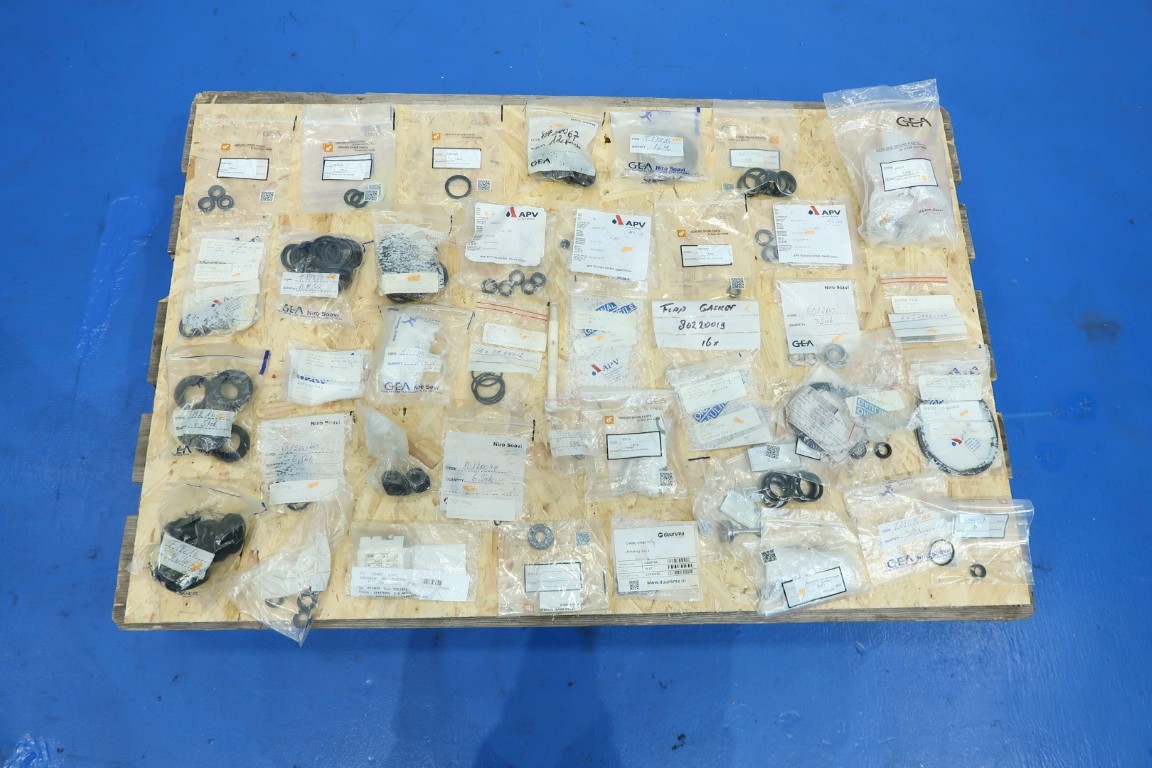

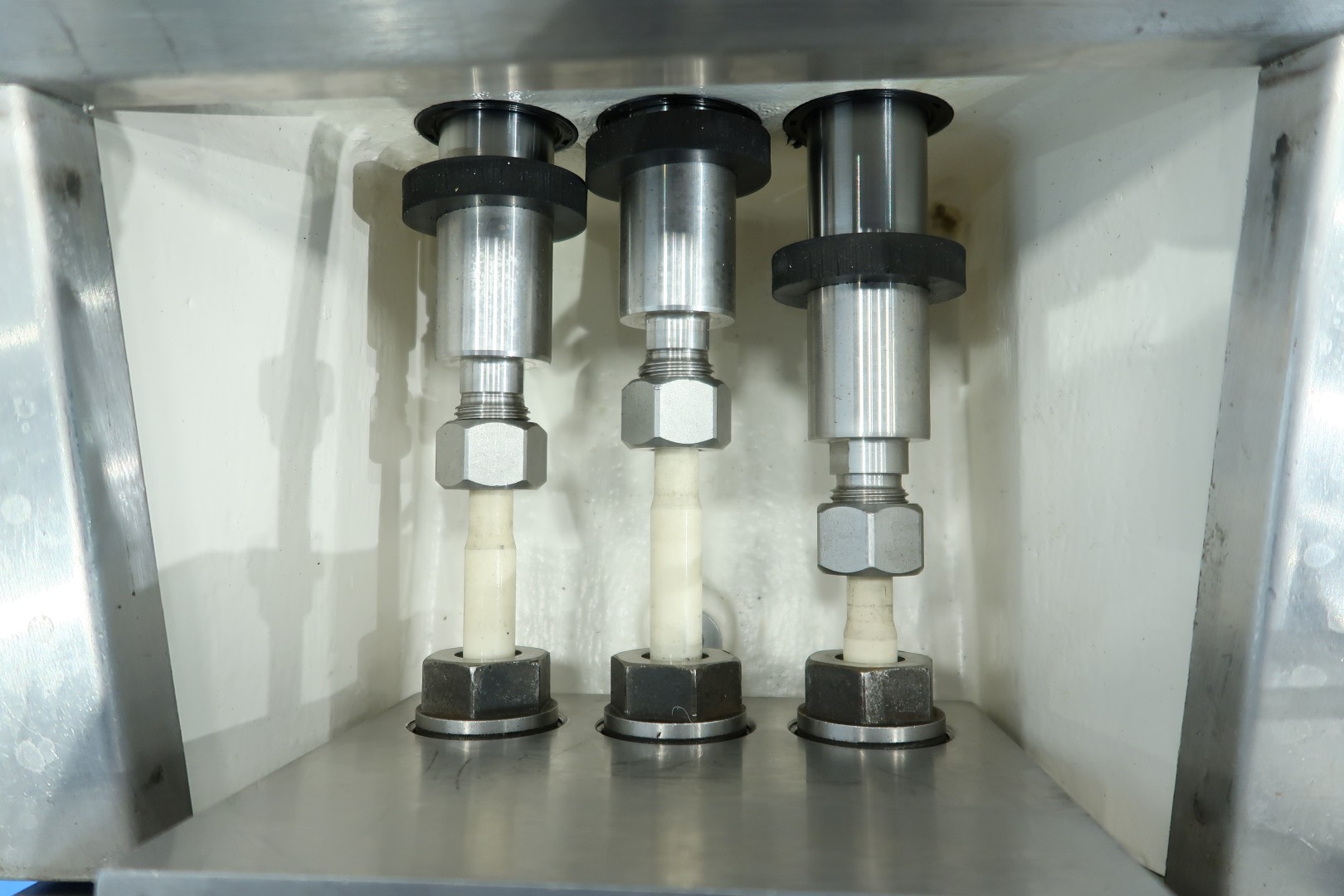

High pressure laboratorium homogenizer. 2 Stages with pneumatic valve control (PVA) with electronic homogenization pressure control. With a switch on the machine can be chosen for manual or automatic pressure control. 3 Ceramic pistons, piston diameter: 14 mm and stroke: ca. 40 mm. Stainless steel cladded. Connections; in: 22 mm (31 mm) - out: 8 mm (10 mm). Manometer on inlet and at 2nd stage. Current motor power: 3,8 kW - 9,5 A - 710 rpm - 50 Hz and maximum pressure in current confirguration with this motor 400 bar. Integrated controls. Spare parts. Manometer on inlet and on cylinderblock (to read off homogenizing pressure). With adjustable feet and 4x feetplate. Can run in combination with a pilot UHT (STN16241). Operating manual with parts list, technical drawings and electrical diagrams (in Dutch) available.
