AZO Zoatec IL1

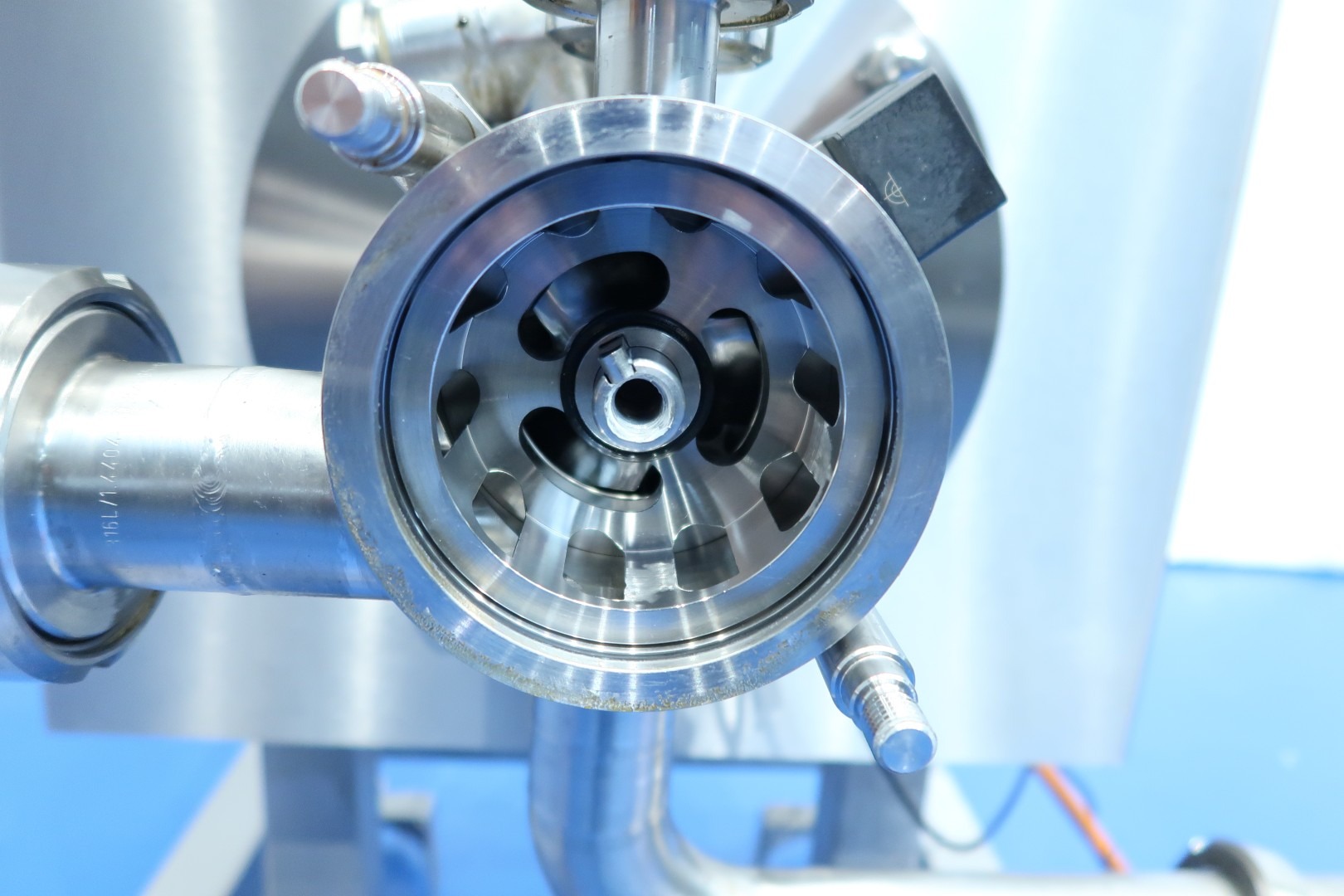

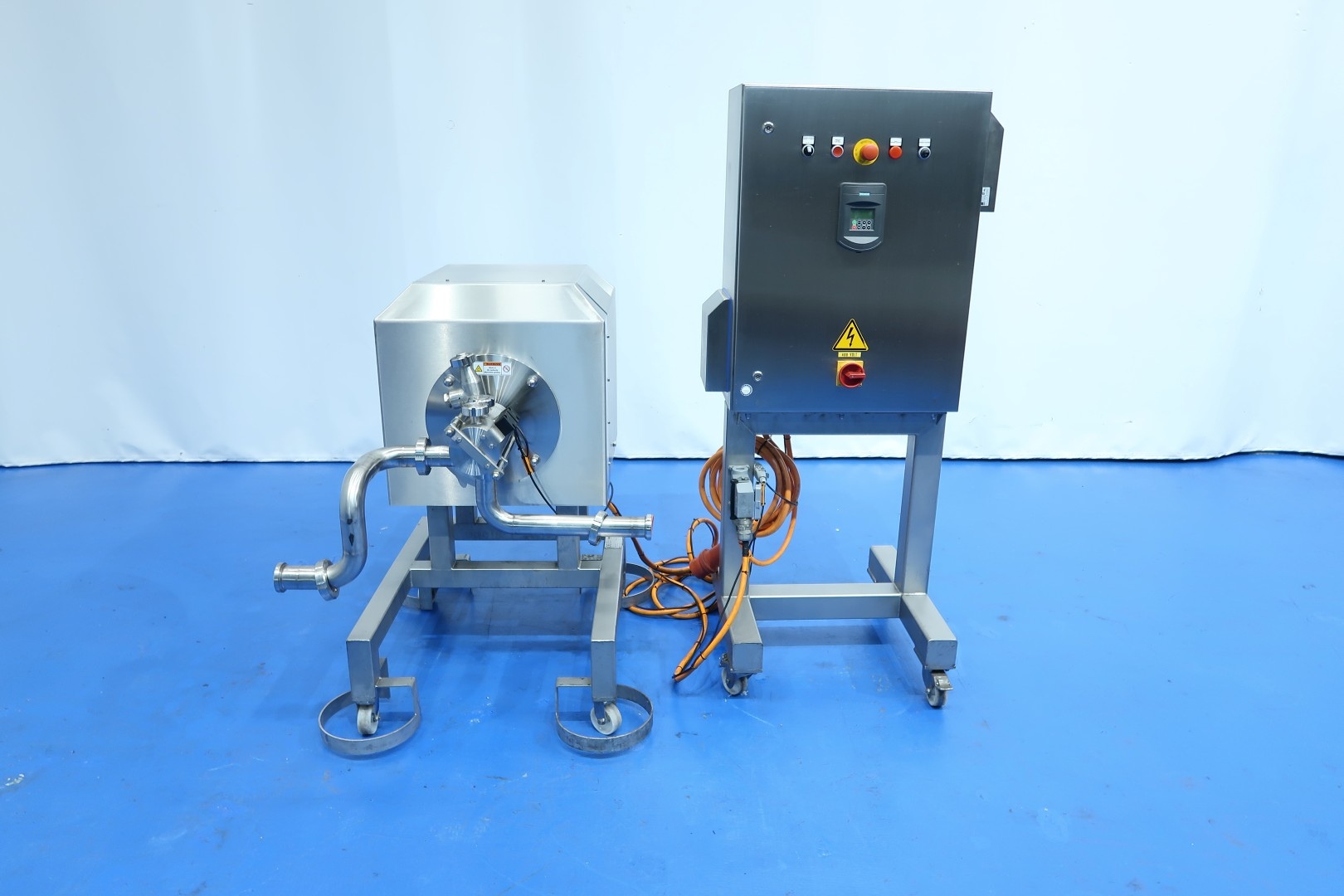

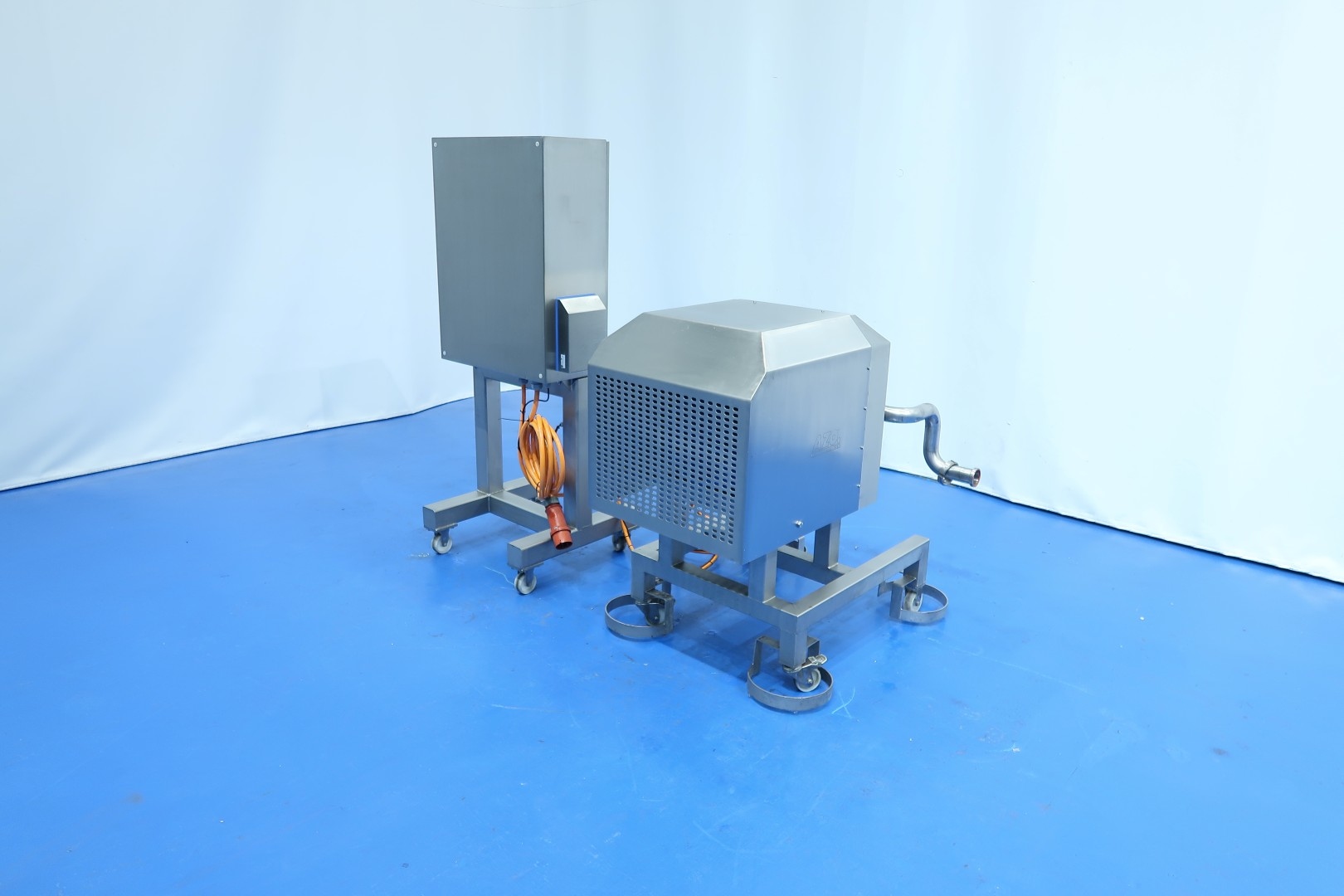

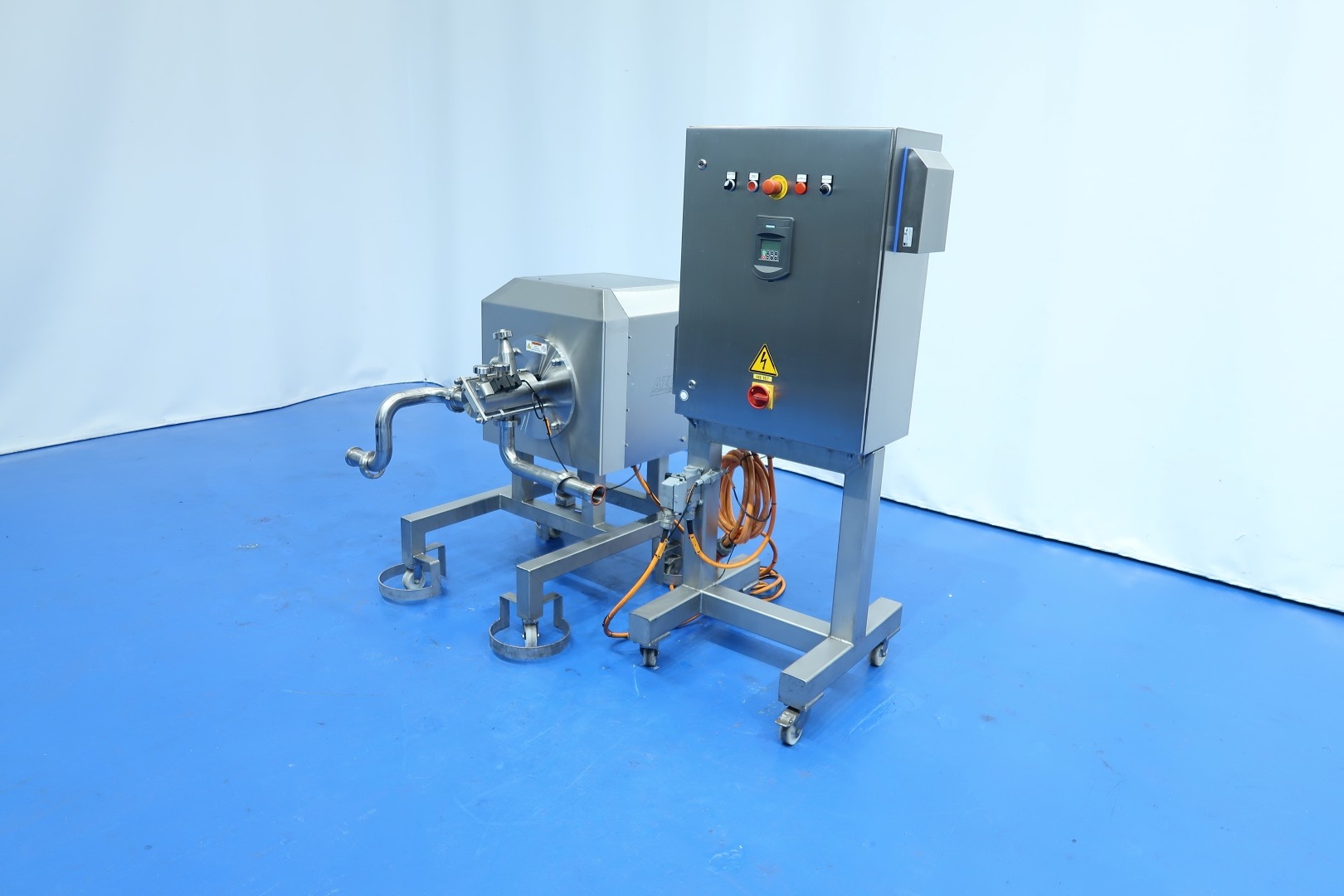

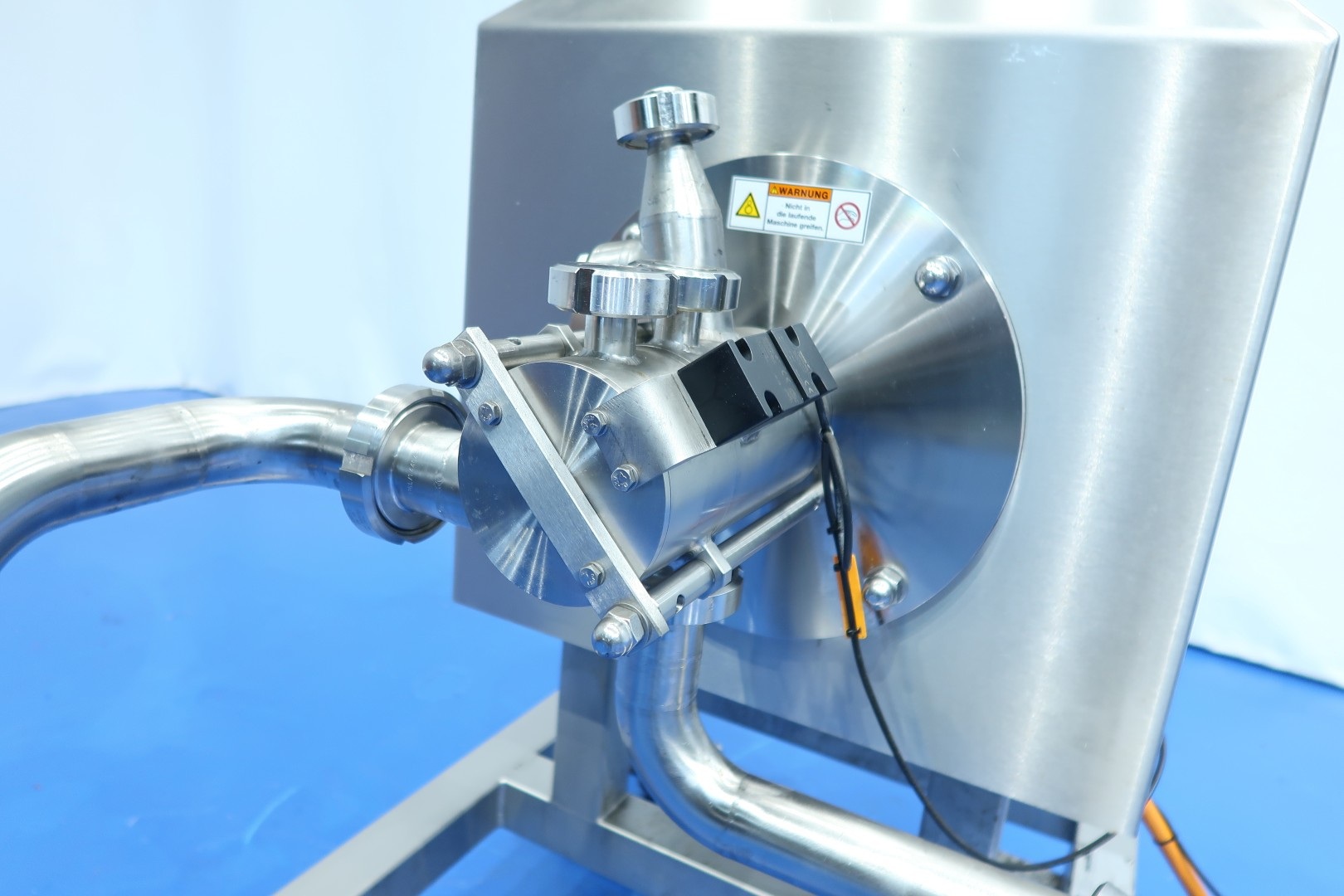

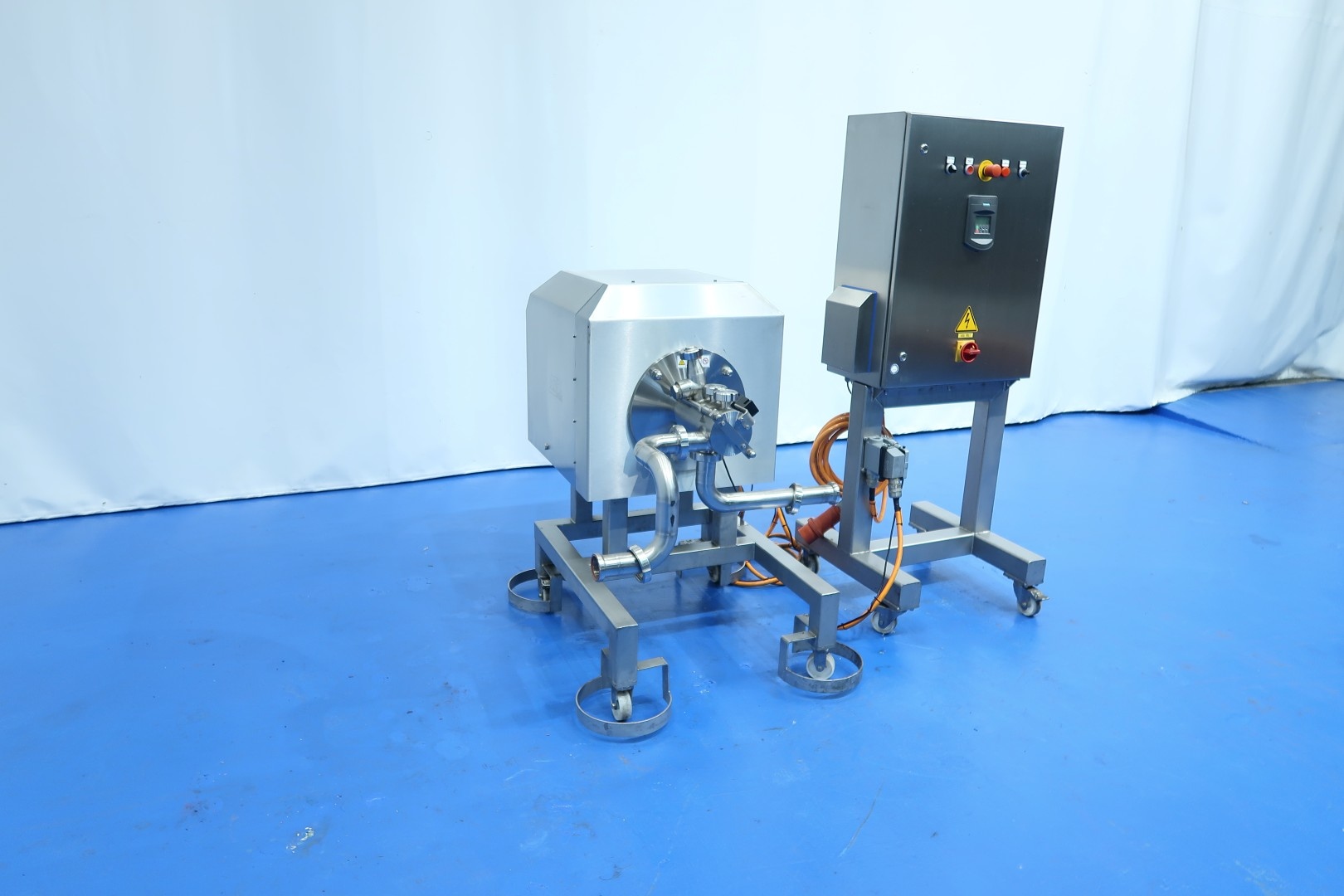

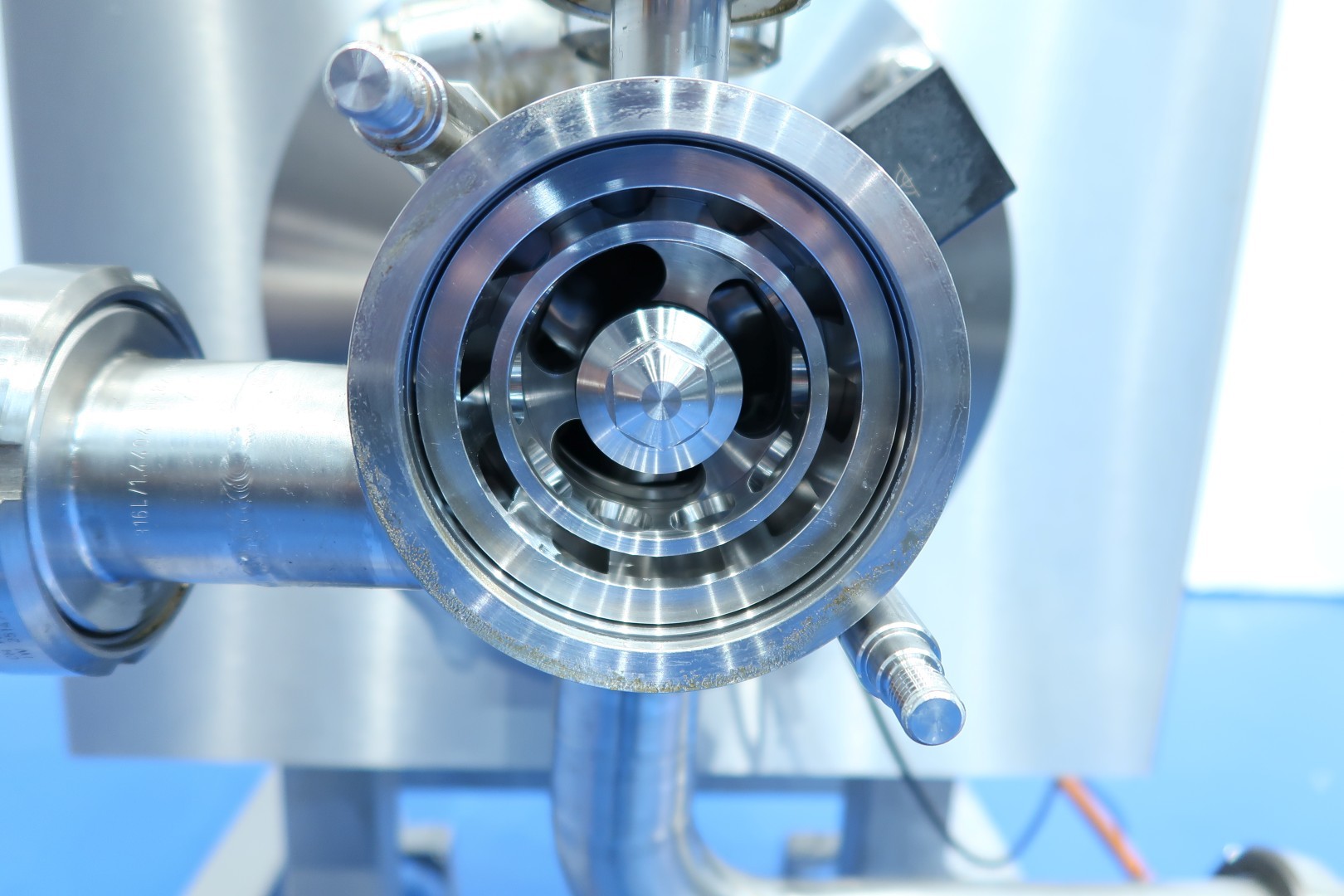

Inline mixer with Rotor-Stator system. Designed for effective dispersing, homogenizing and emulsifying of liquid and viscous products. Can be used as standalone machine or placed in a batch or continuous line. Machine and control panel built on SS mobile frame. Including multiple sizes:

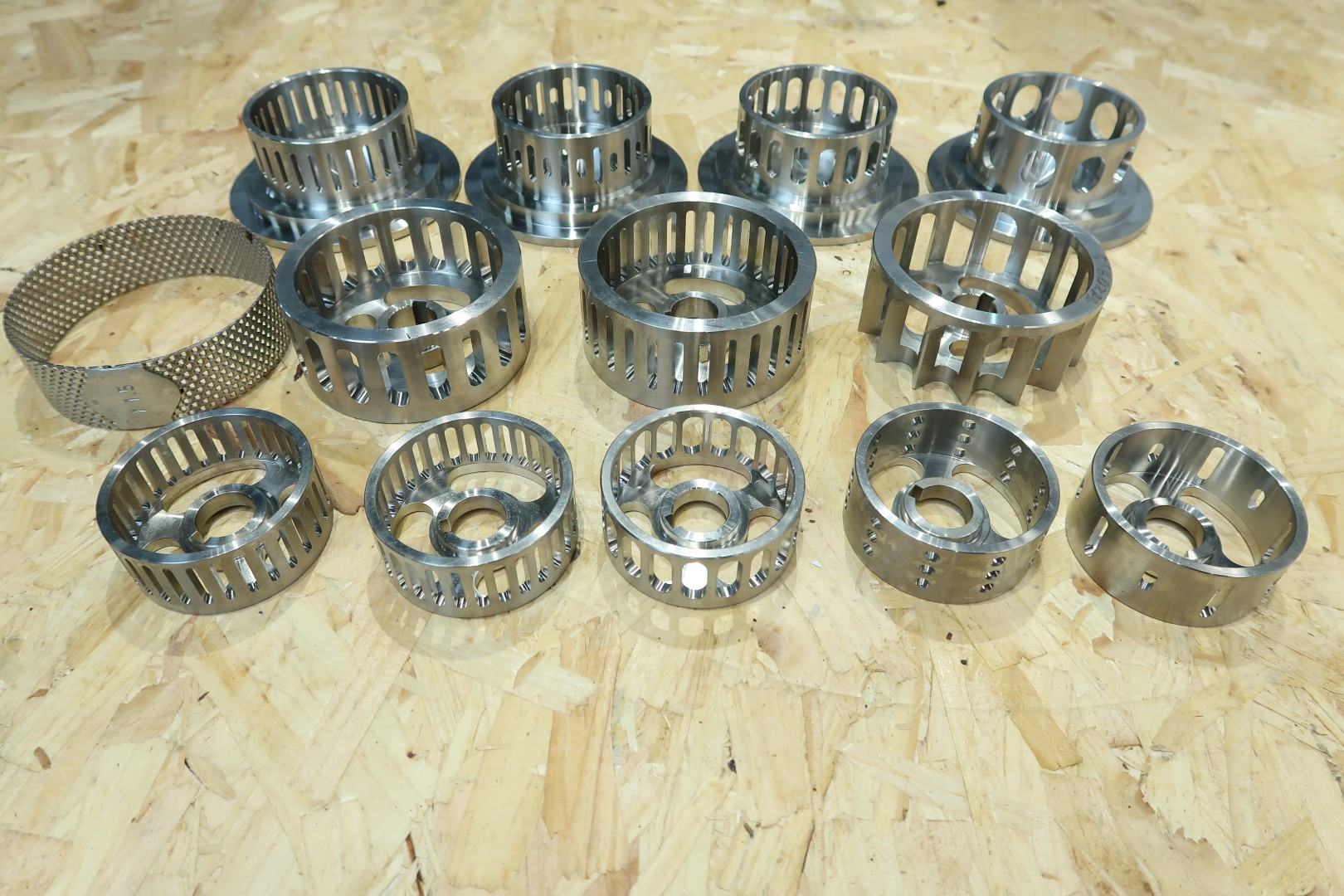

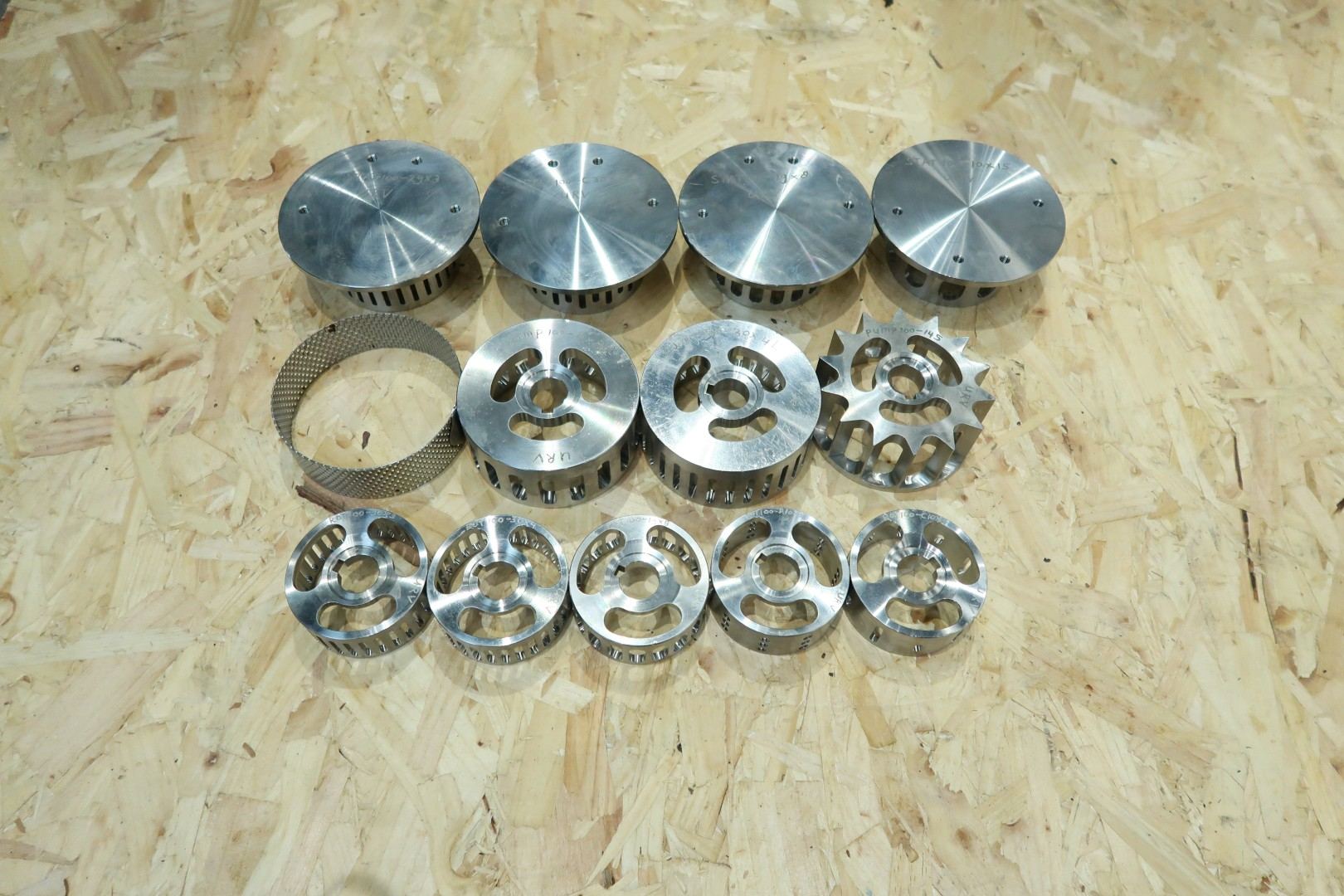

- Stator: 100-29x3 URV,
- Stator: 100-C30x4 URV,
- Stator: 100-19x8 URV,
- Stator: 100-10x15 URV,
- Pump: 100-19x8L,URV,
- Pump: 100-30x4L URV,
- Pump: 100-145 URV,

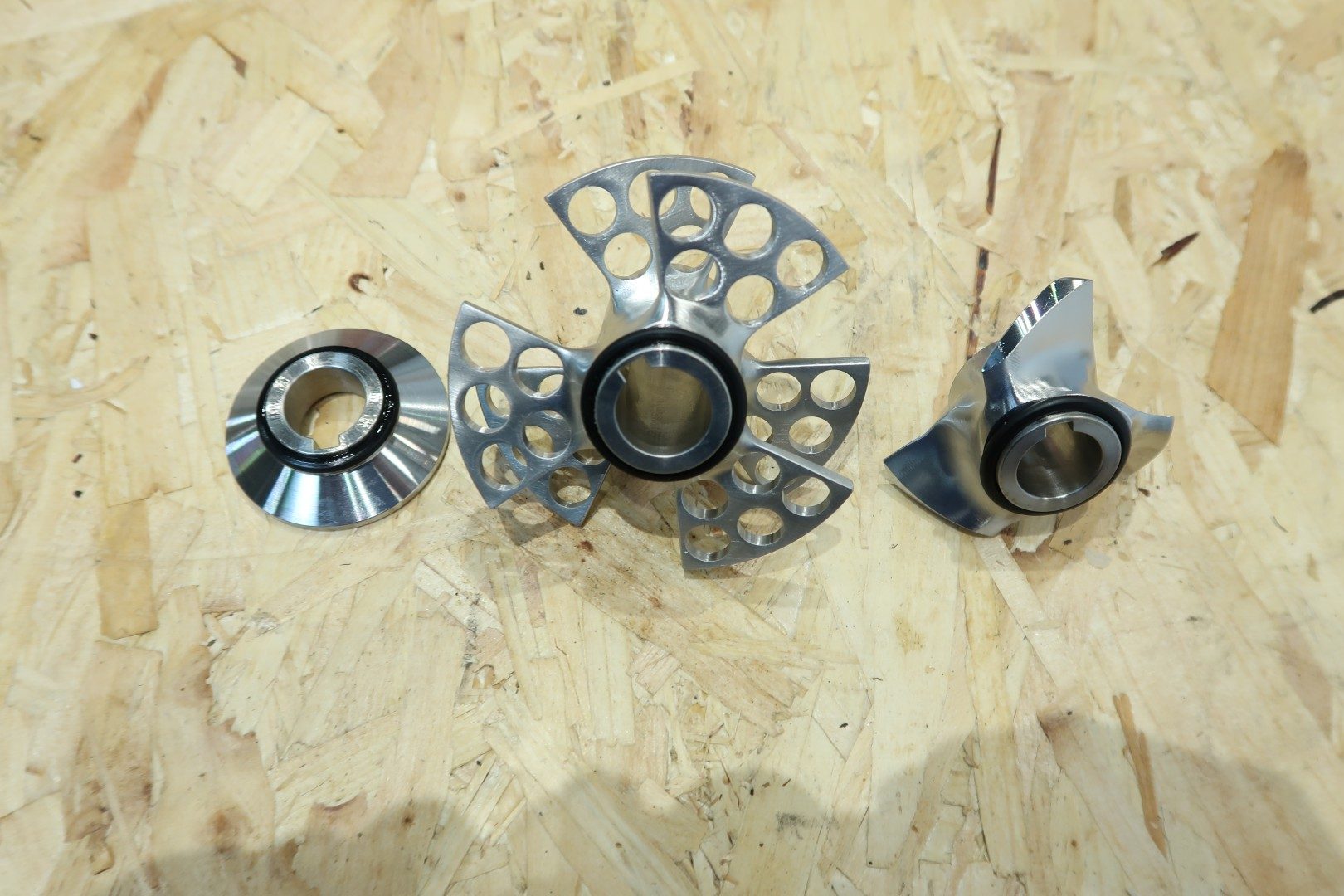

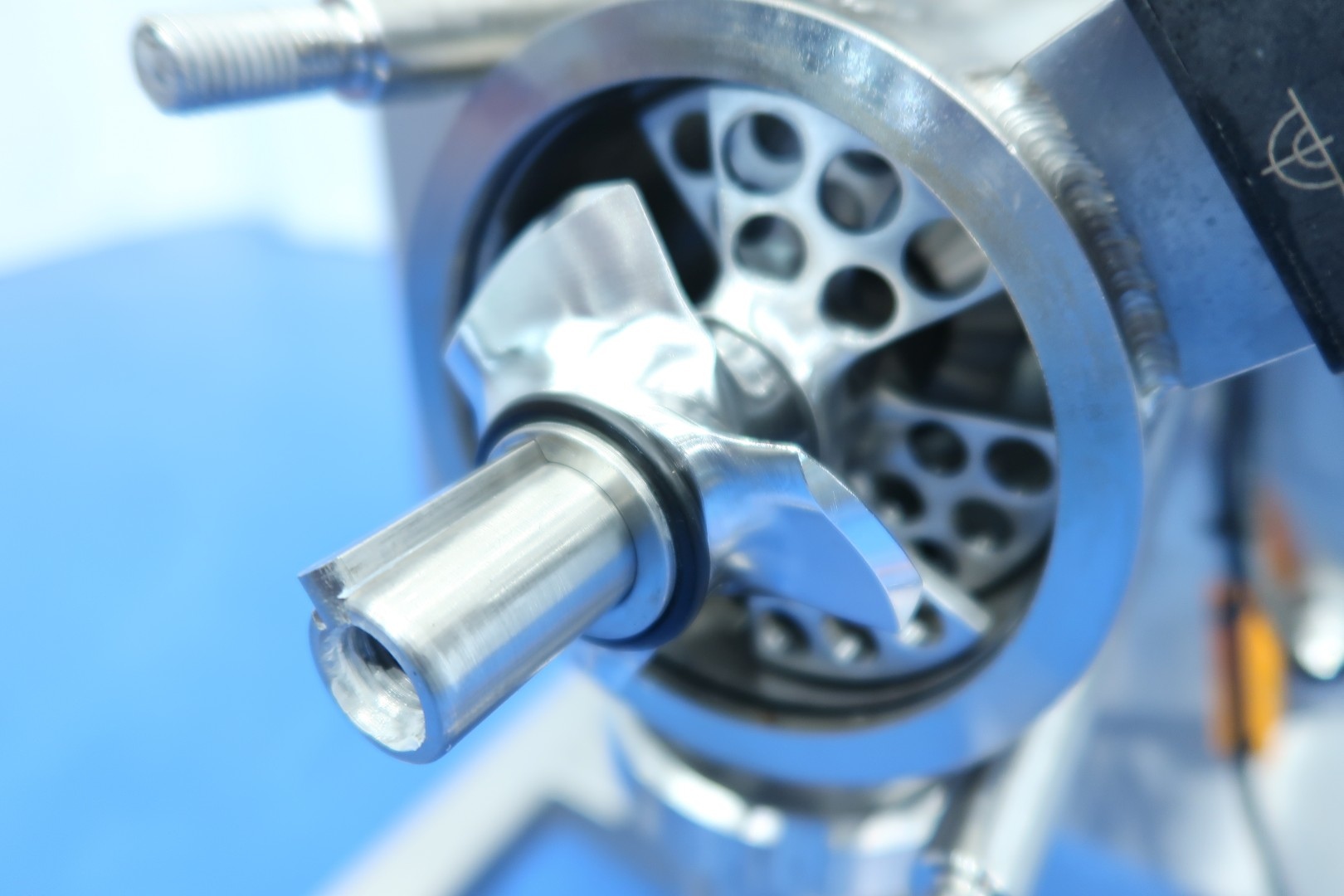

- Rotor: 100-30x3 URV,
- Rotor: 100-30x4 URV,
- Rotor: 100-19x8 URV,
- Rotor: 100-P10x3 URV,
- Rotor: 100-C10x4 URV,

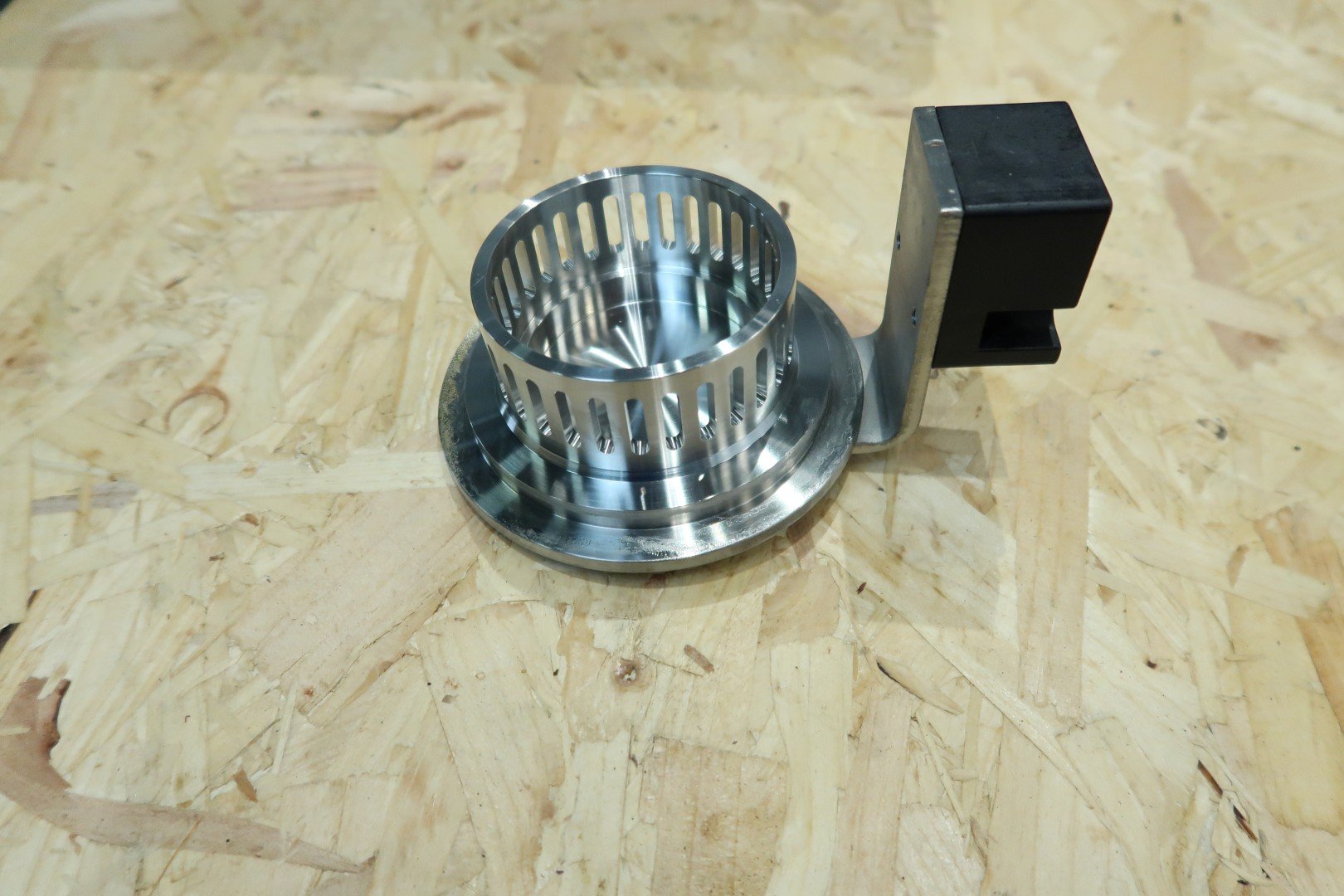

- Sieve: 11,5

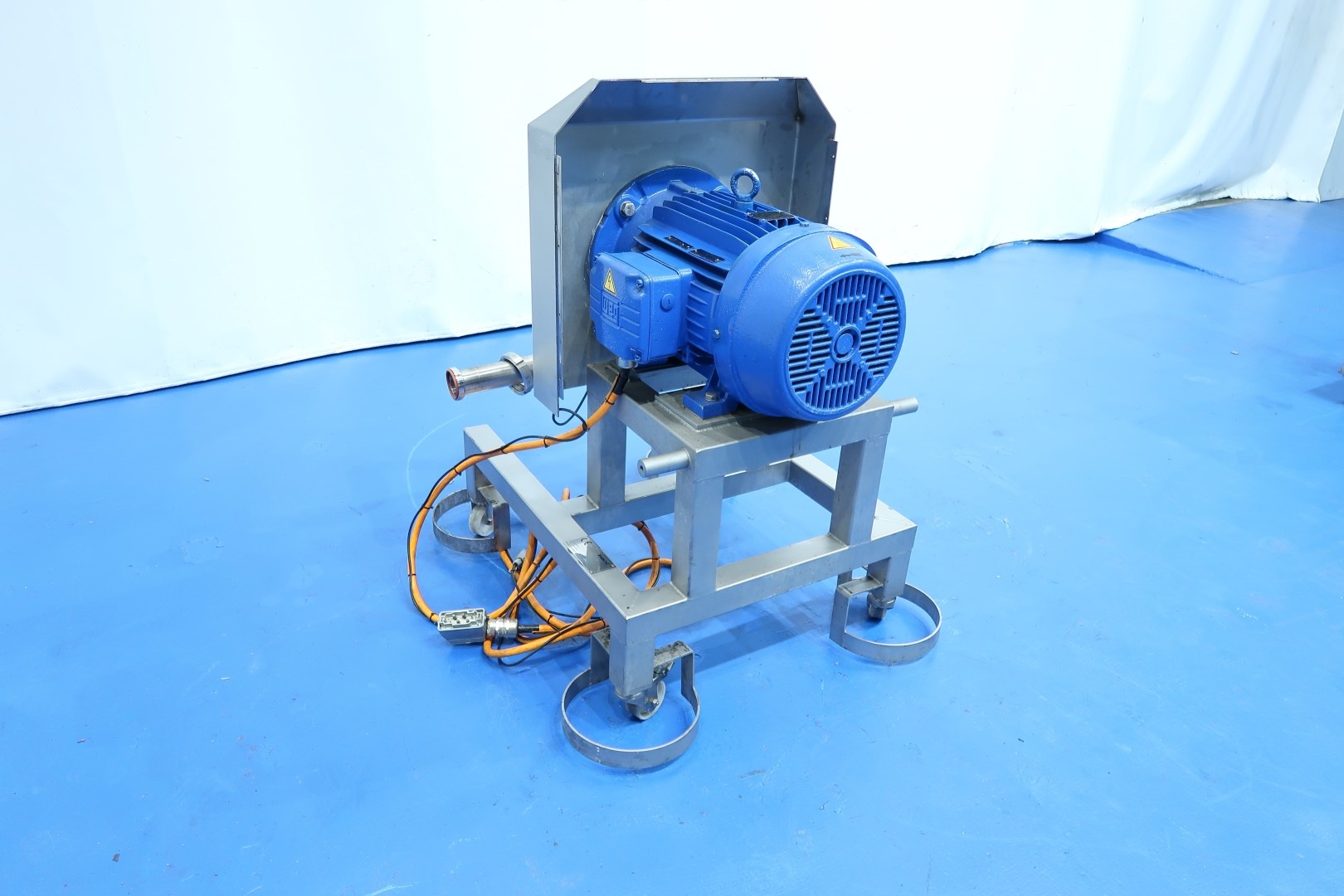

Single jacketed, can also be used as CIP pump. Capacity depending on viscosity and other product properties. Connections: 2x 2"" Din and 1x 1"" Din. Motor: 11 kW - 400 V - 20,2 A - 50 Hz - 2.950 rpm. Control panel with manual controls. Speed controllable via Micromaster freqeuncy convertor and potentiometer on panel. Testmovie available.
