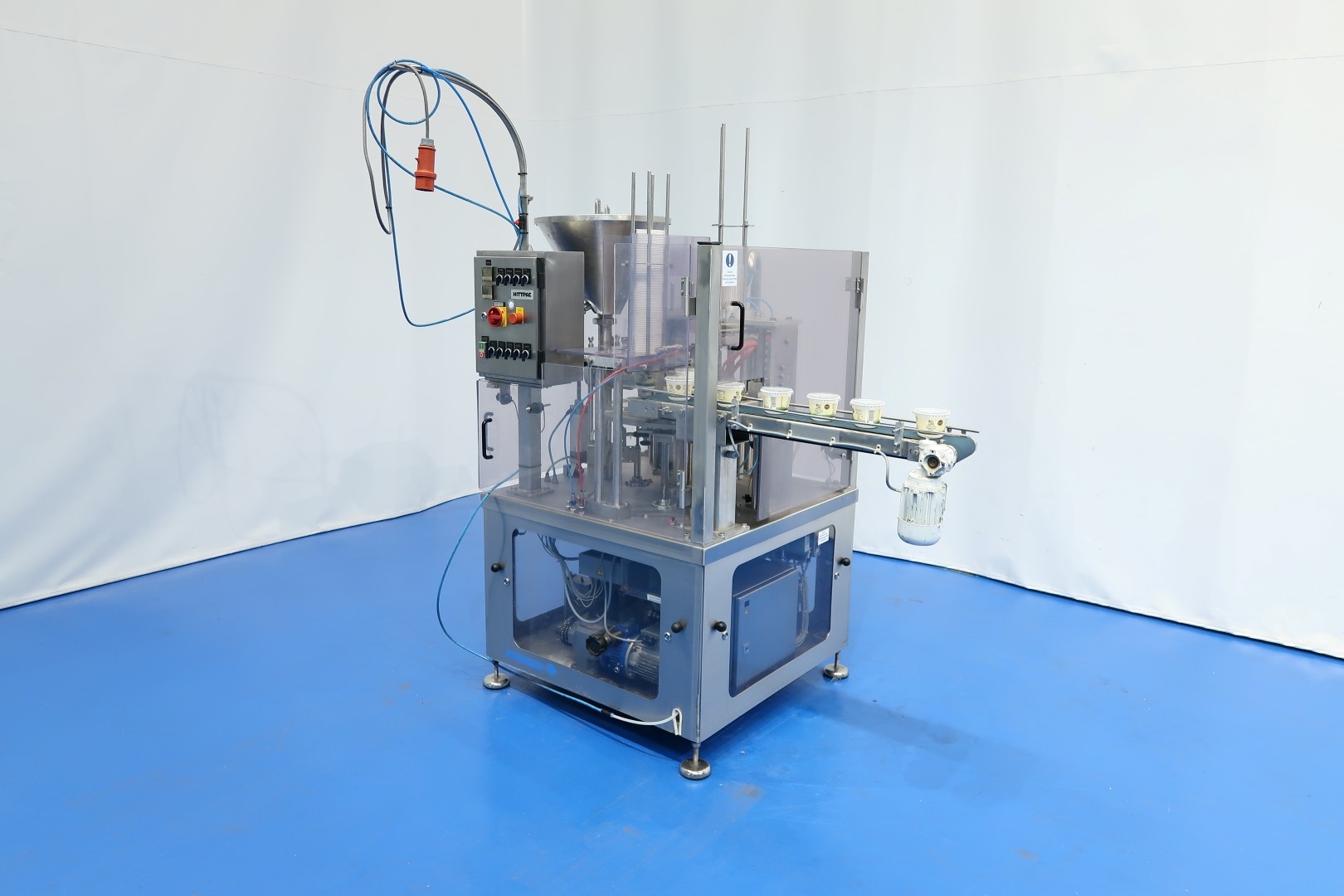

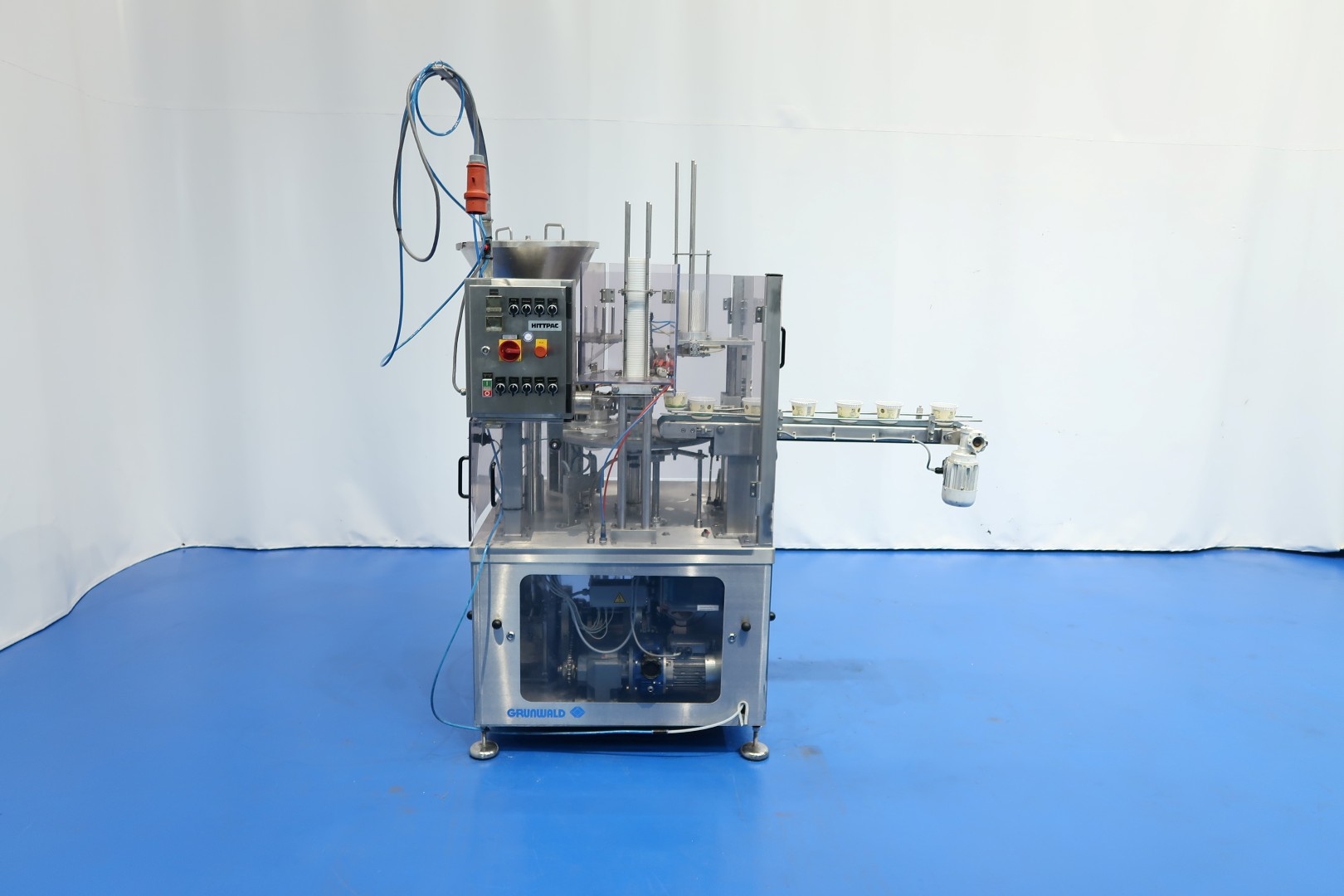

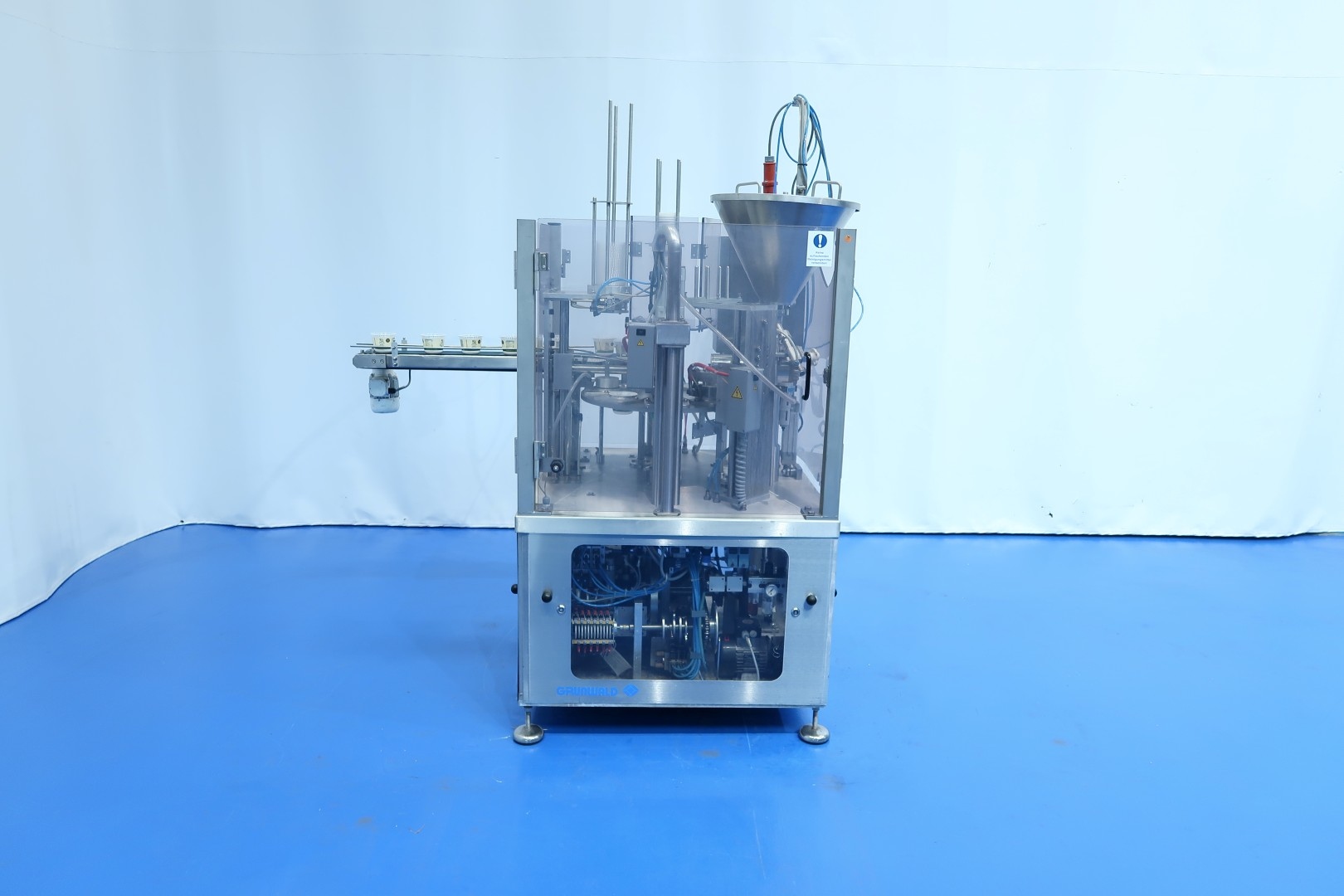

Grunwald Hittpac AKH 019R/1

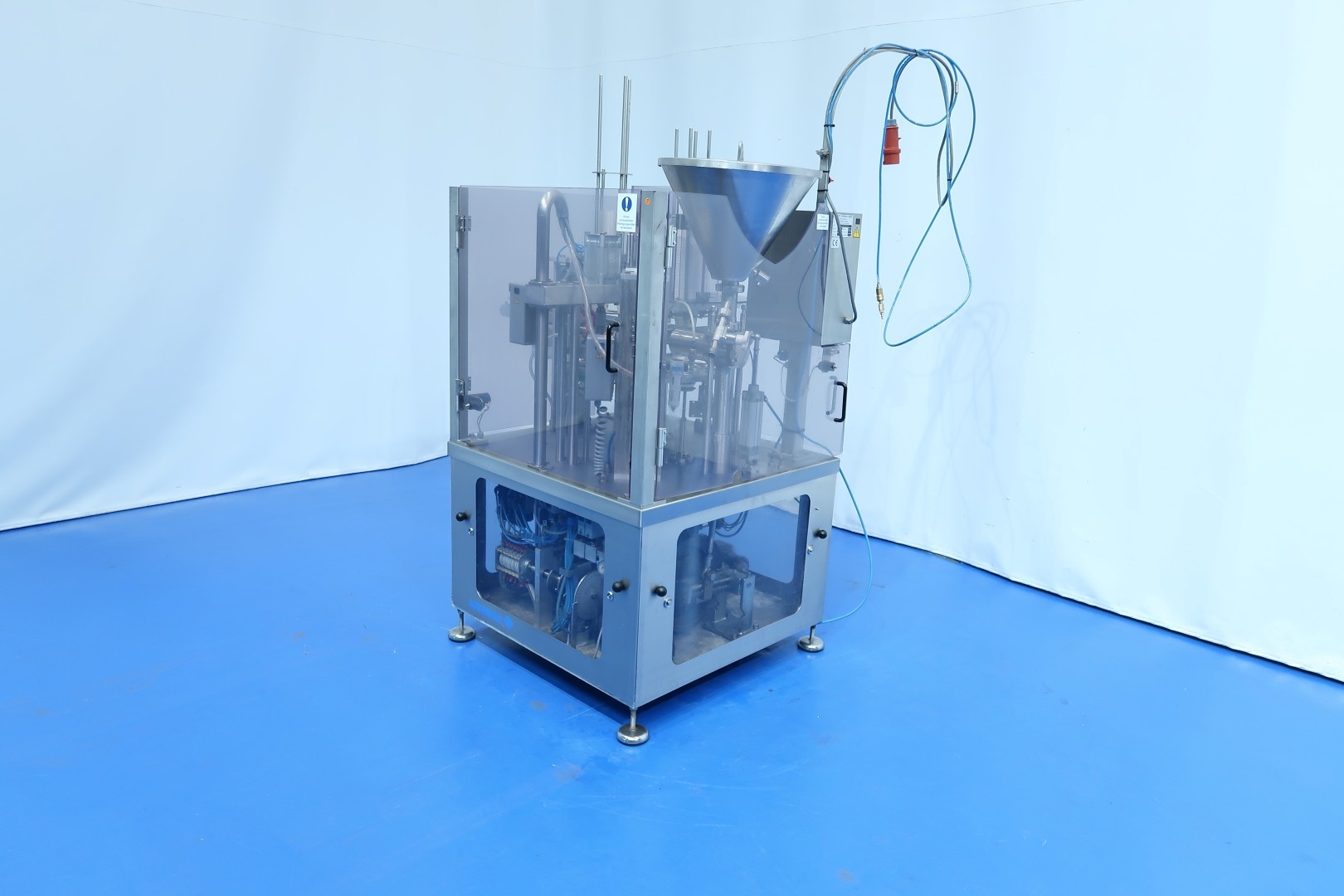

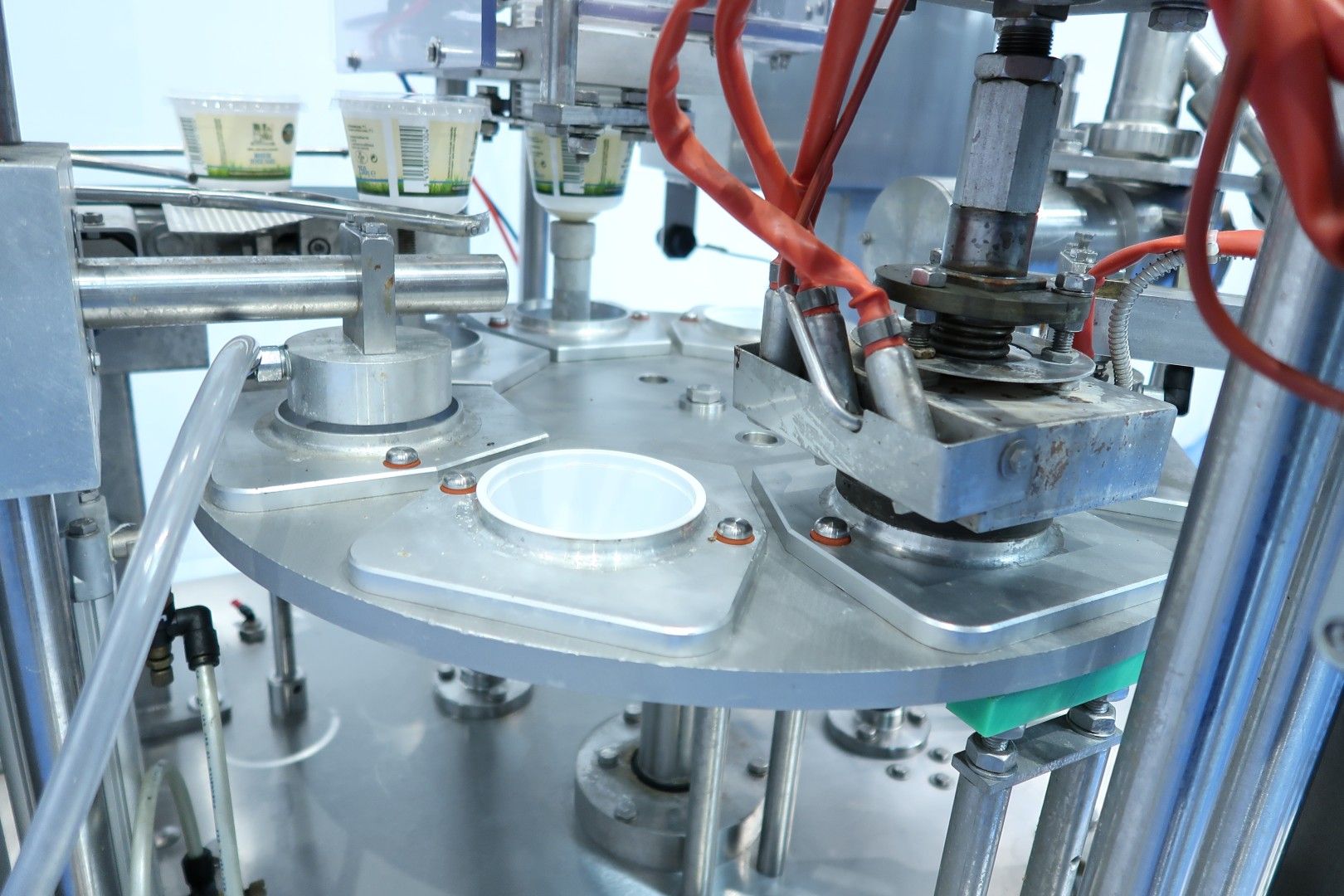

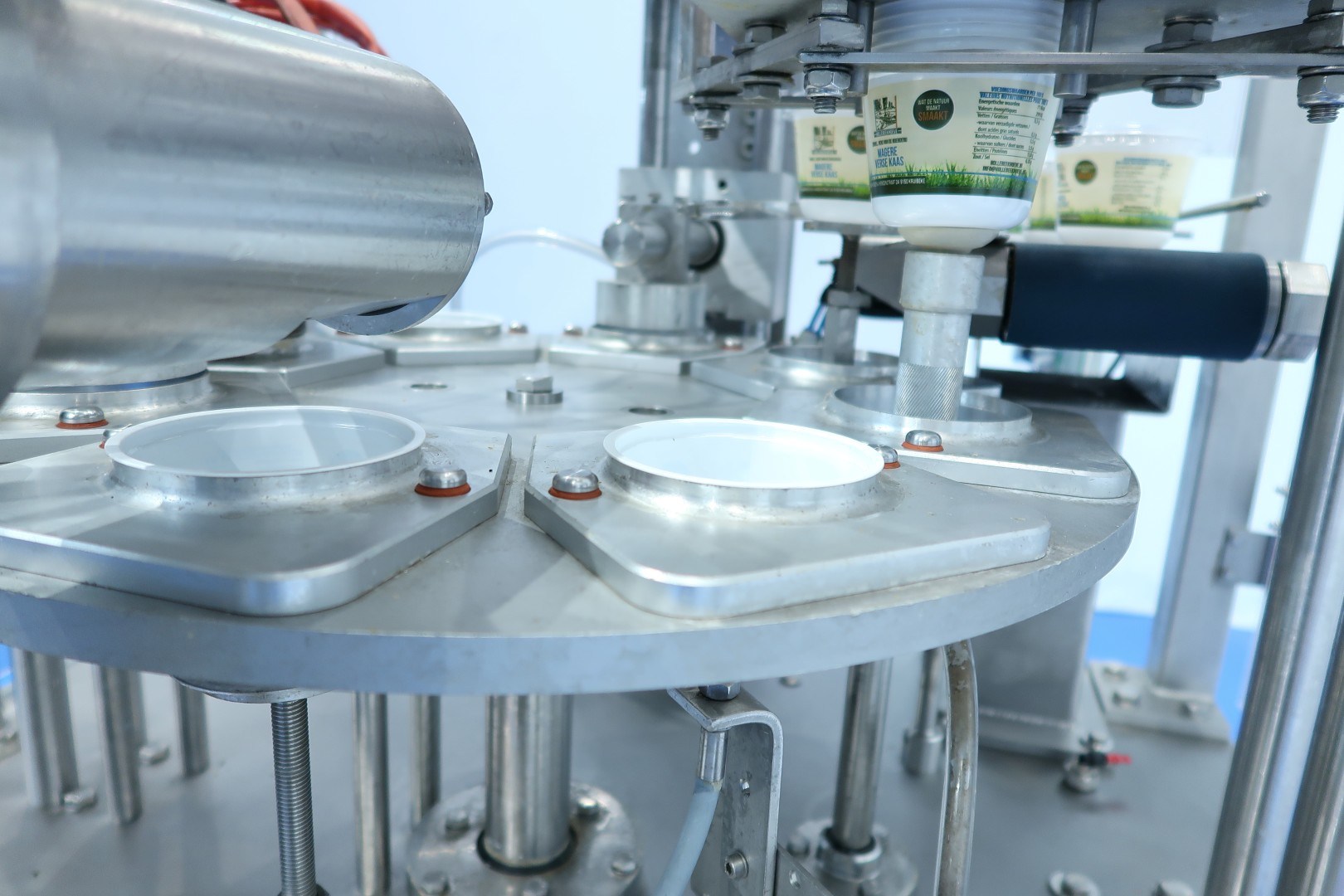

"Rotary cupfilling machine, 1 Head. Cup size round 95 mm. 8 Stations:

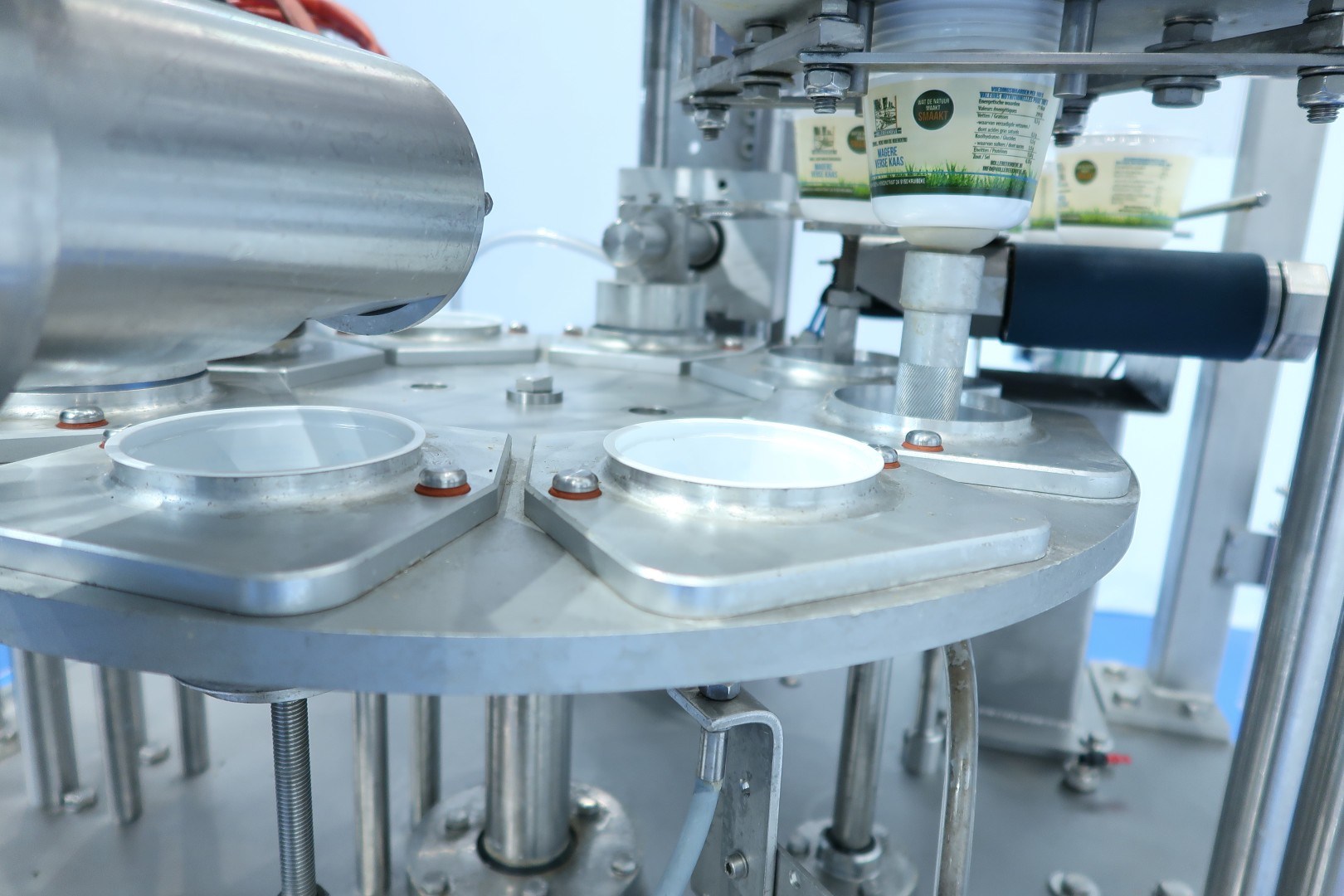

1.) Cup destacking-placing.
2.) Cup detecting with 1x optical sensor,

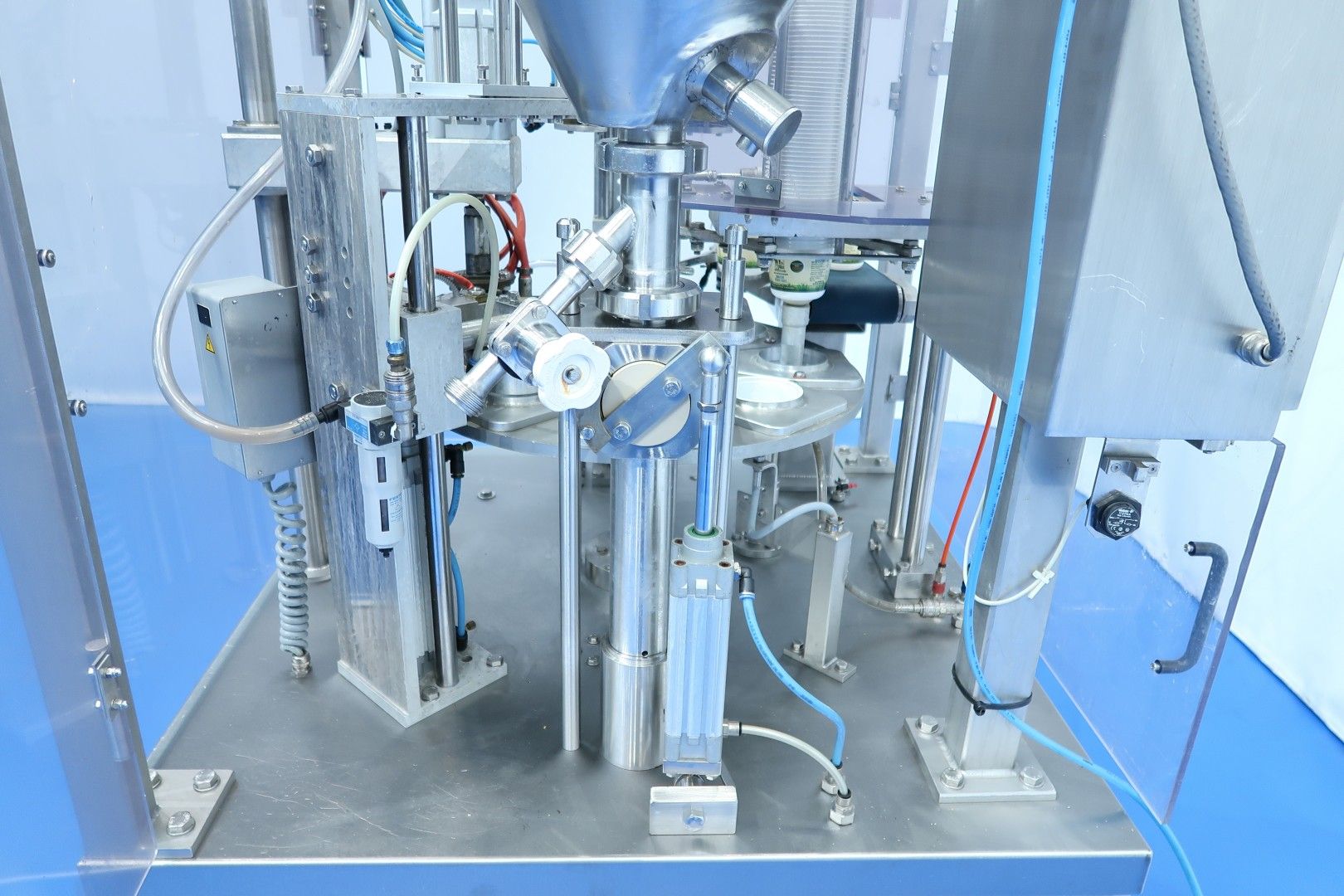

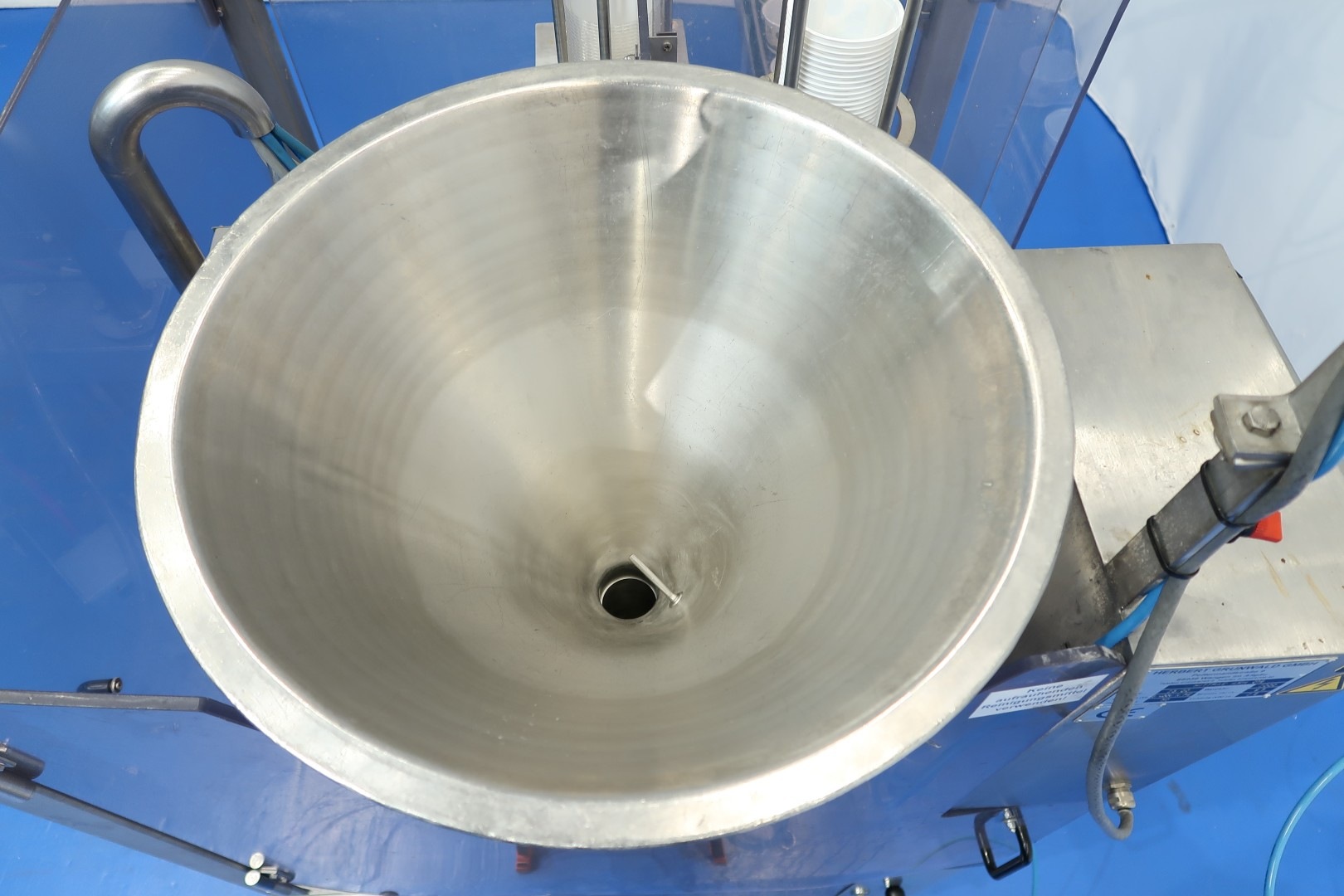

3.) Dosing-filling station via insulated hopper with low level sensor,
4.) Seallid placer and tip seal,
5.) Sealstation,
6.) Snap-cap placing station,
7.) Removing-sliding cups away station,

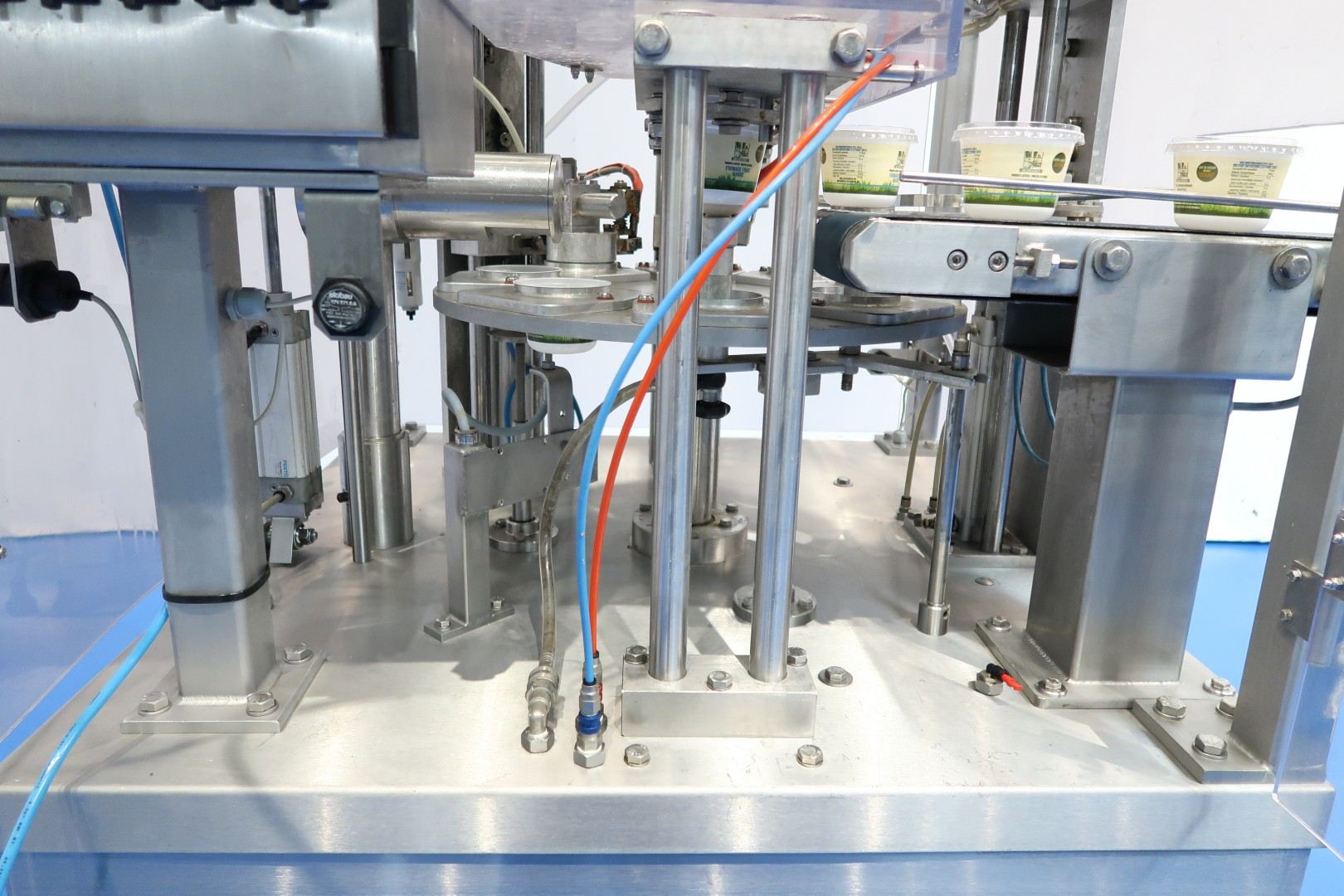

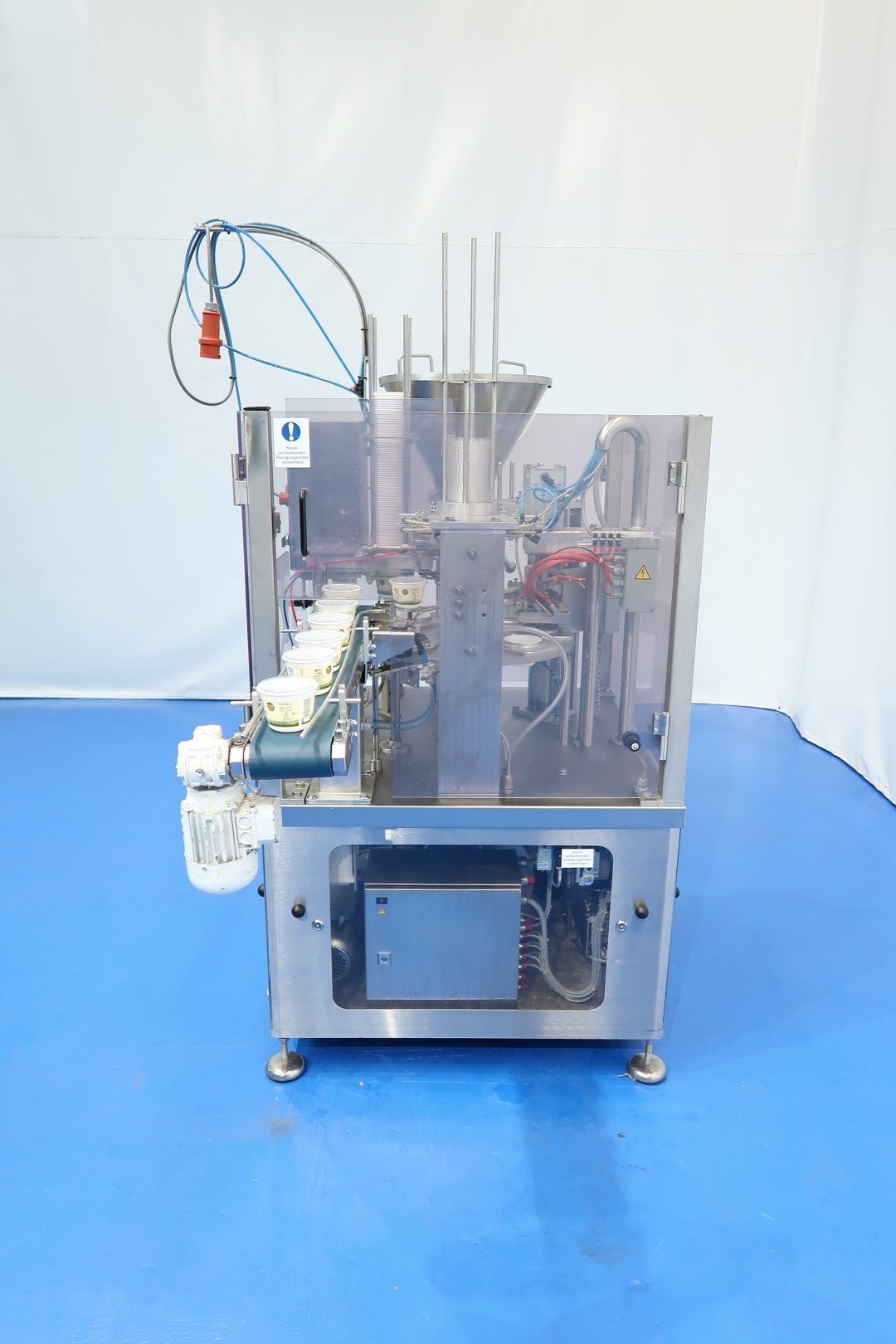

8.) Outfeed conveyor belt station.

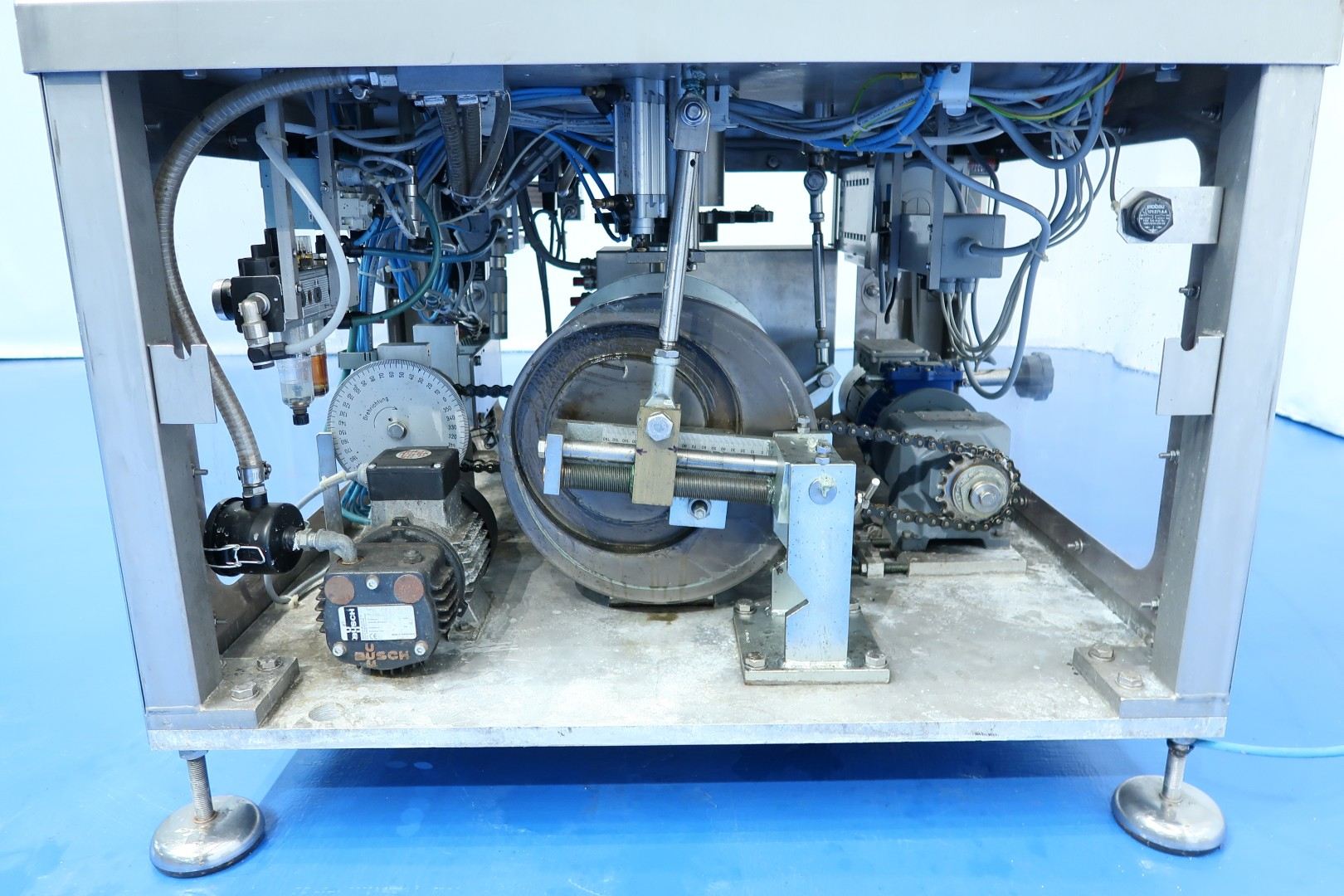

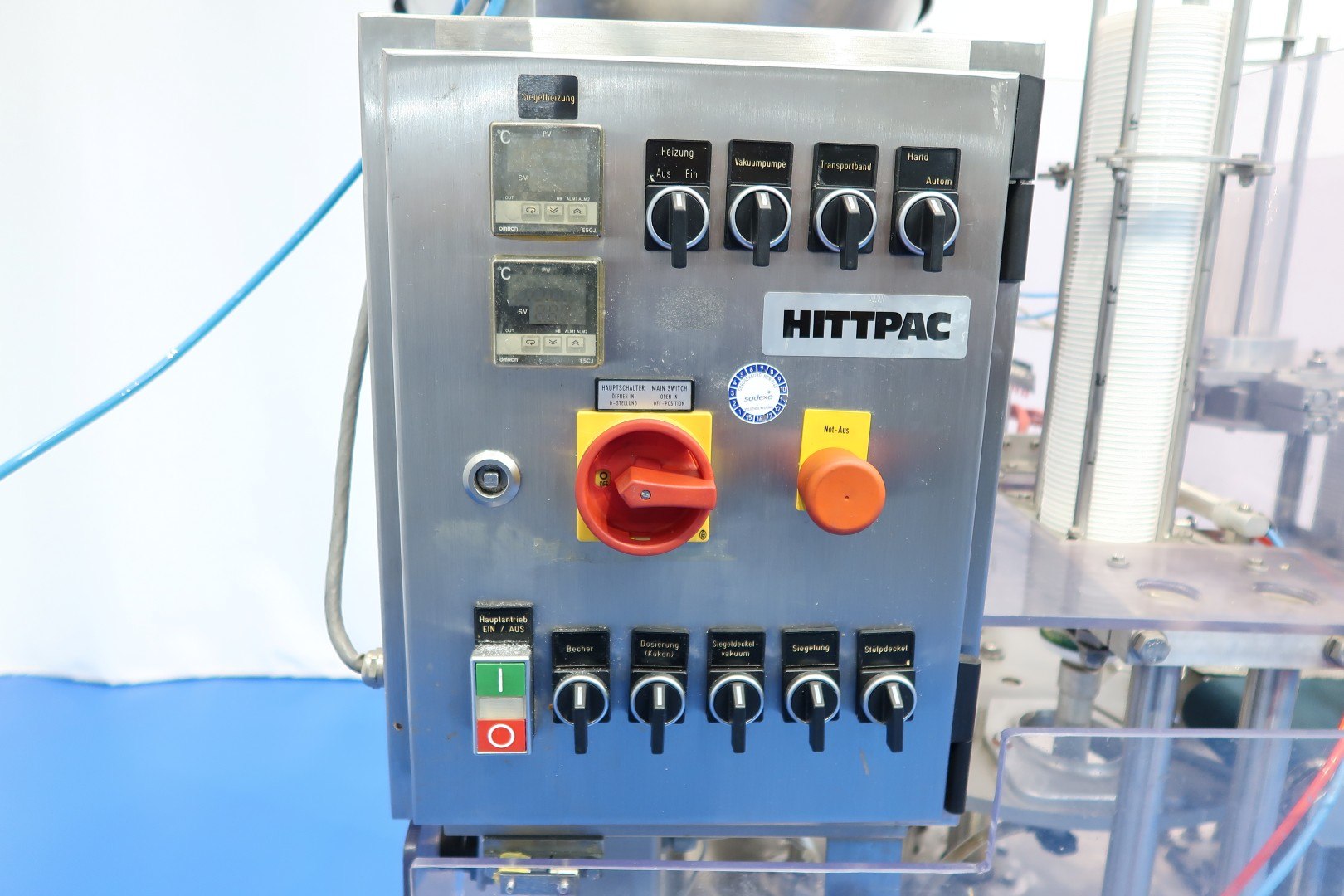

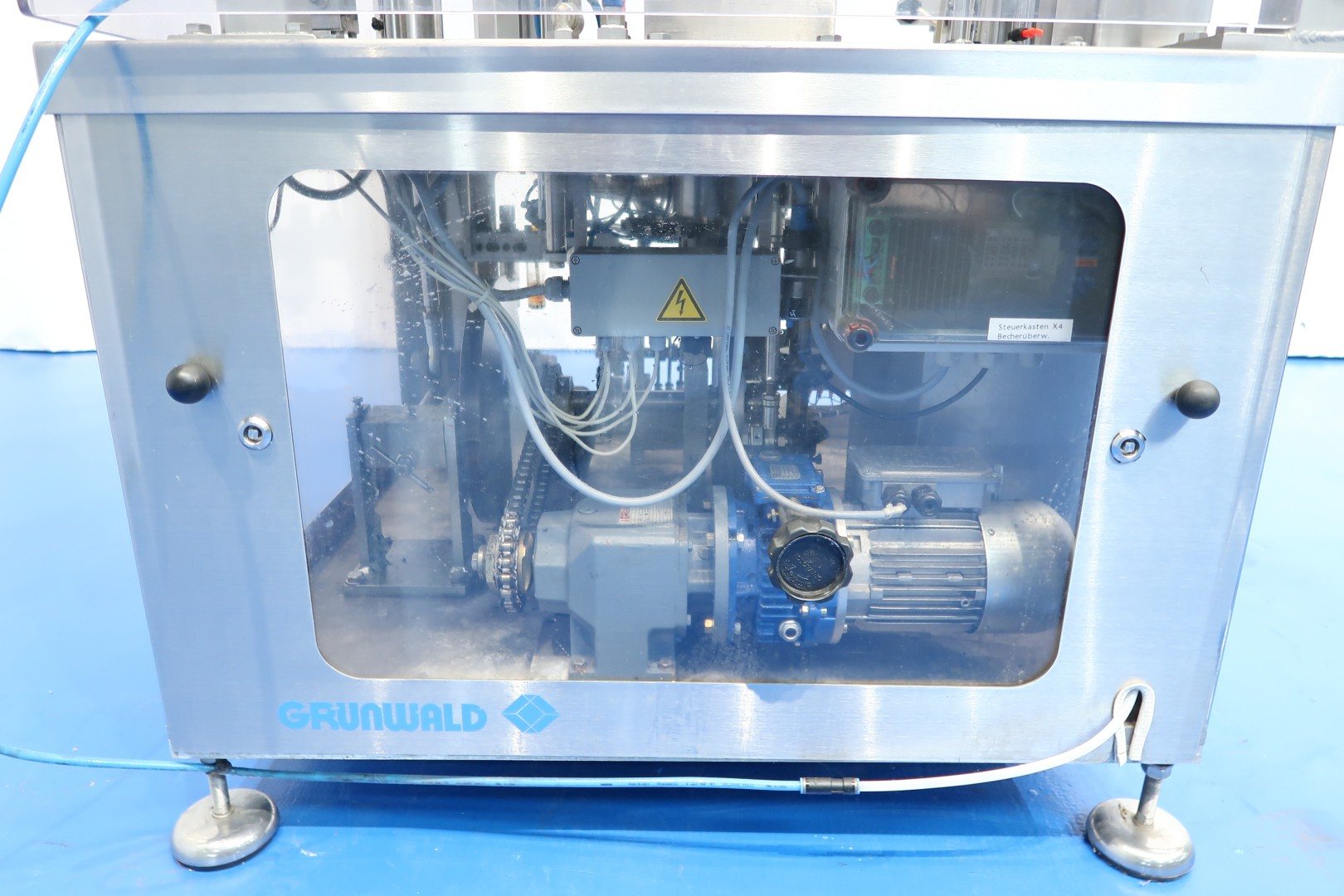

Speed up to max 40 strokes per min. Main doser filling quantity: 80 - 306 cc/ml. Outfeed on +/- 1.0 meter single lane outfeed conveyor, width 10 cm. Controls: Elobau relay control via buttons. Manual reductor on main motor. Testmovie available. Documentation (in German): user manual, technical drawings, spare parts catalogue and electrical diagrams. "
