Niro Soavi NS3006H

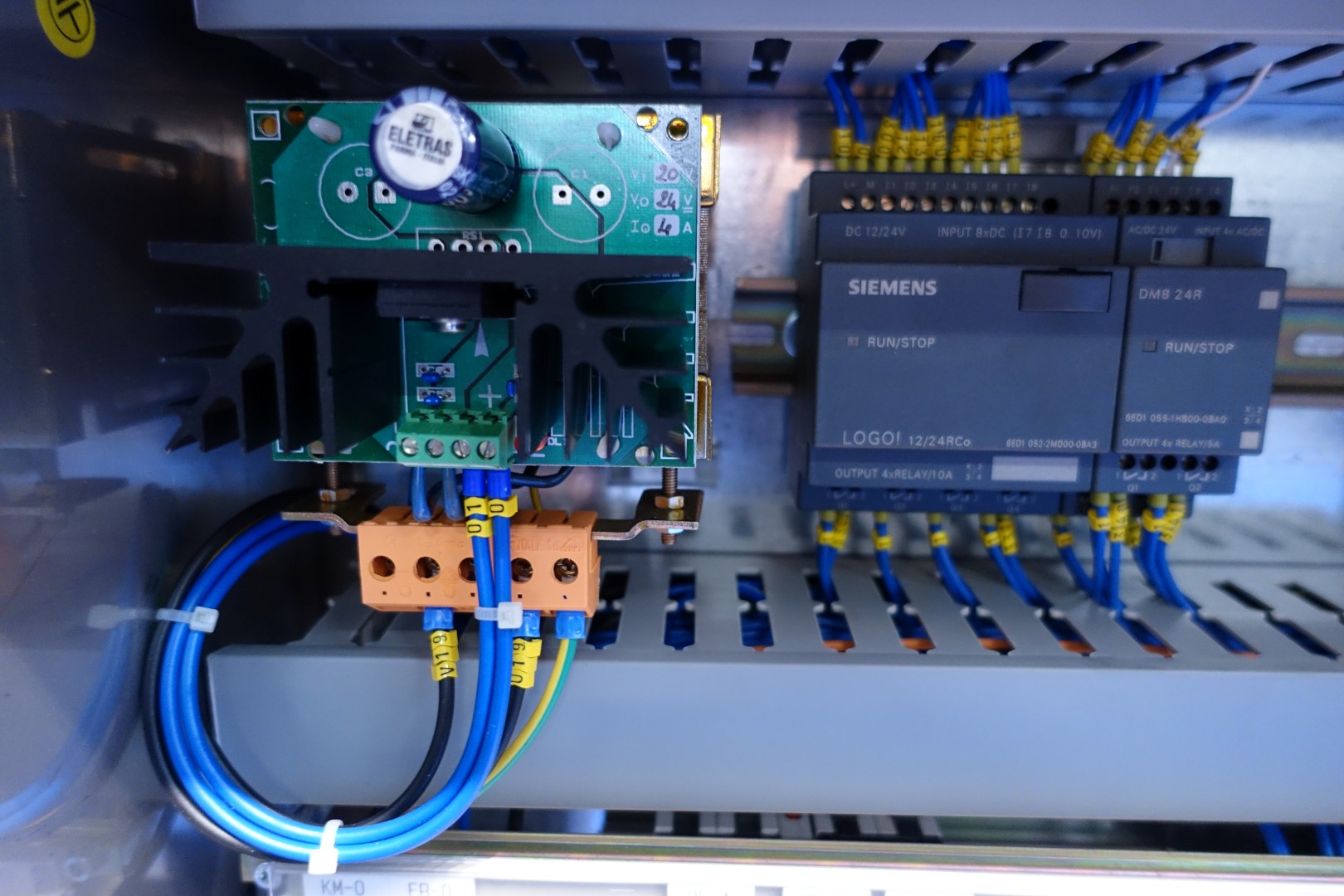

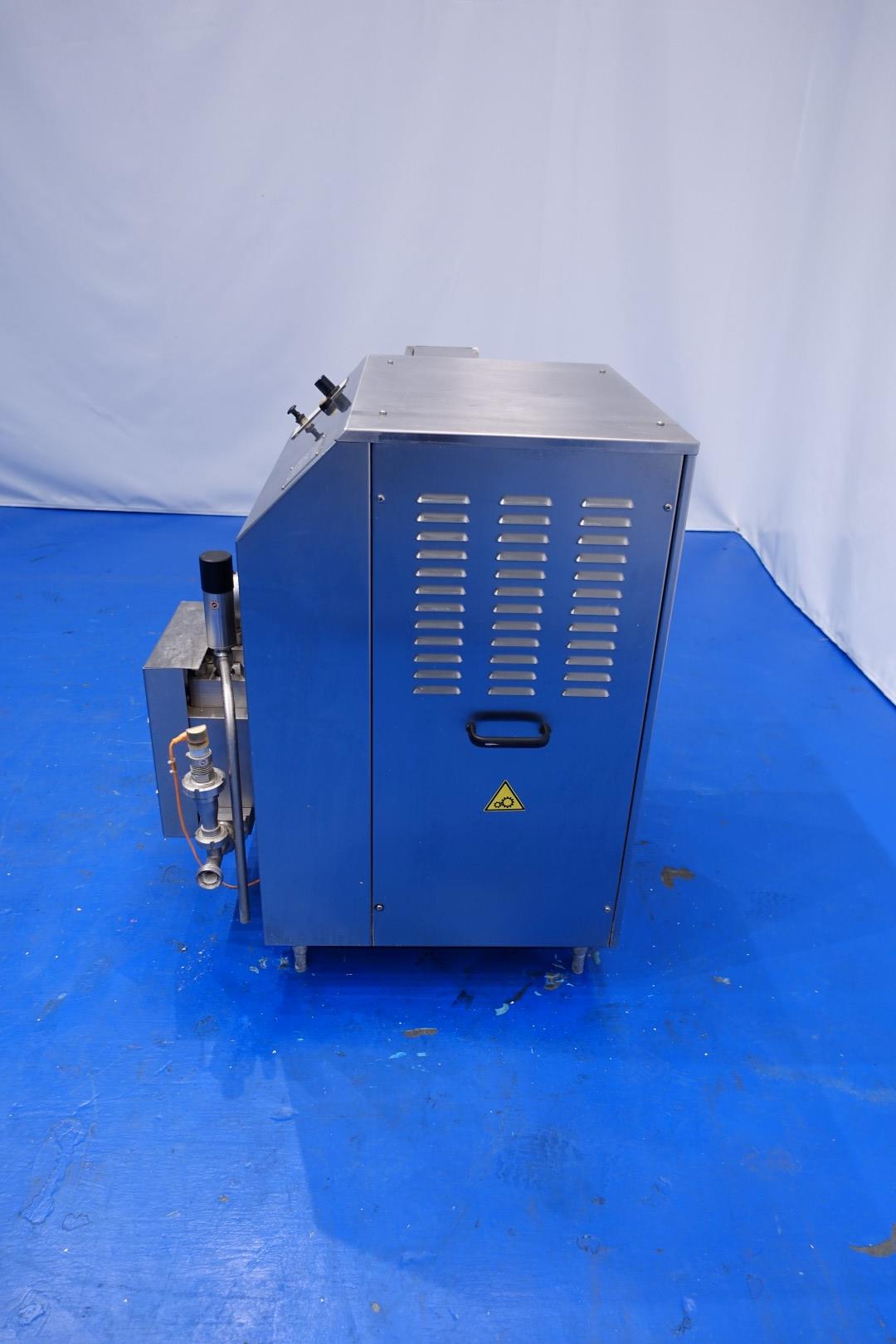

High pressure homogeniser. 3 Pistons, 1 stage, with manual pressure control. Pistons, pisotn diameter 30 mm and stroke: ca. 55 mm. Stainless steel cladded. Current motor power: 6,0 kW - 12 A - 50 hz - 400 V - 3 phase. Maximum pressure in current configuration with this motor up to 250bar. Free standing control panel (to be wall mounted). Operating hours on meter: 1.202. Including electronic pressur transmitter on inlet, pressure indicator manometer, overpressure valve, flowswitch (and manual valve) on cooling water. Total dimensions: 103x85x114 (lxwxh) cm - weight: 440 kg.
