Rannie BTM 58.90

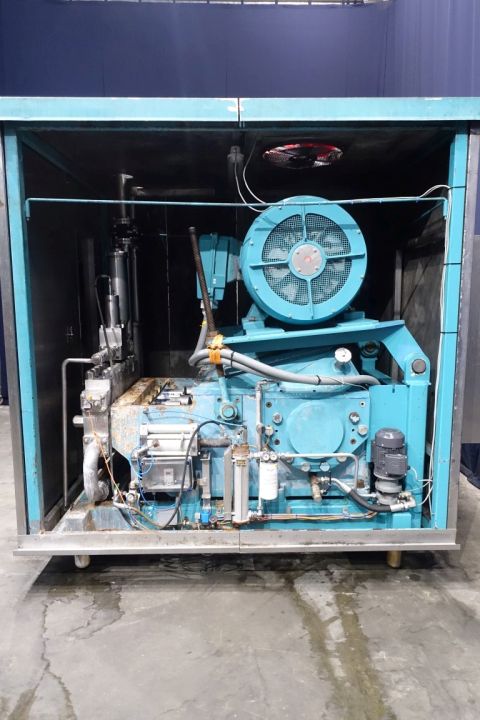

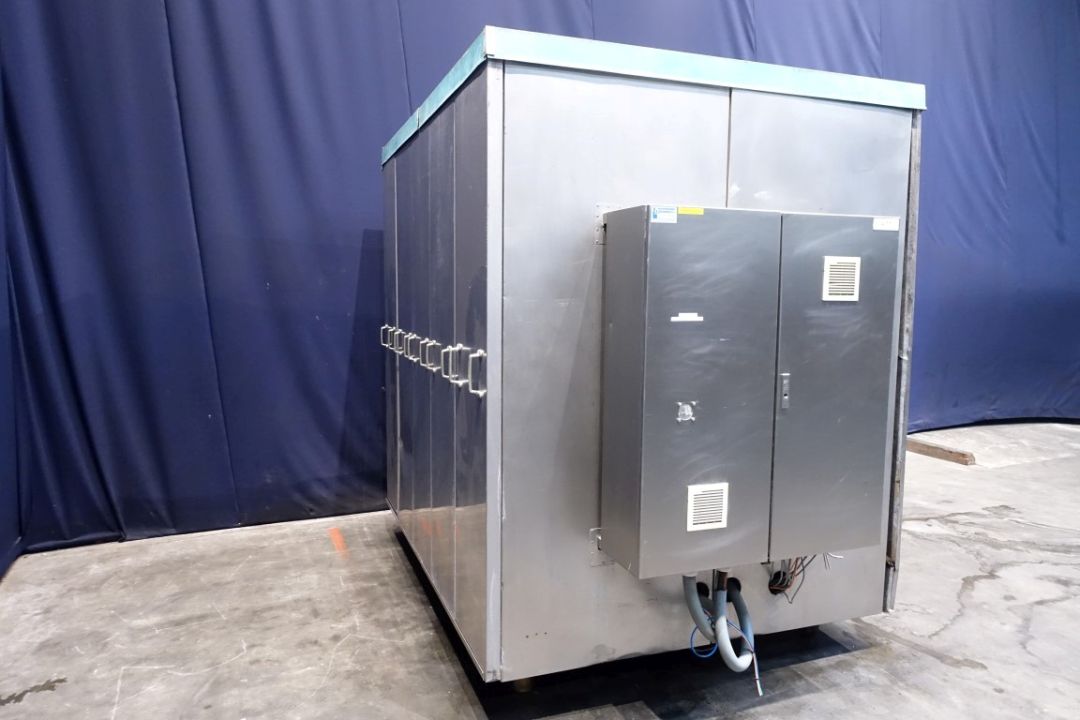

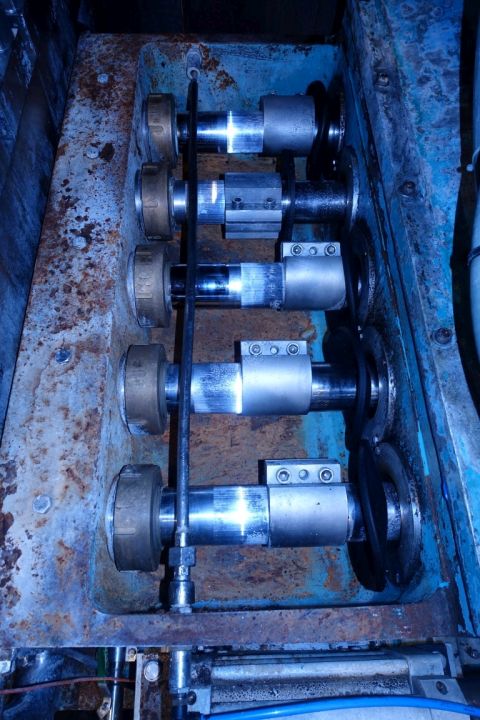

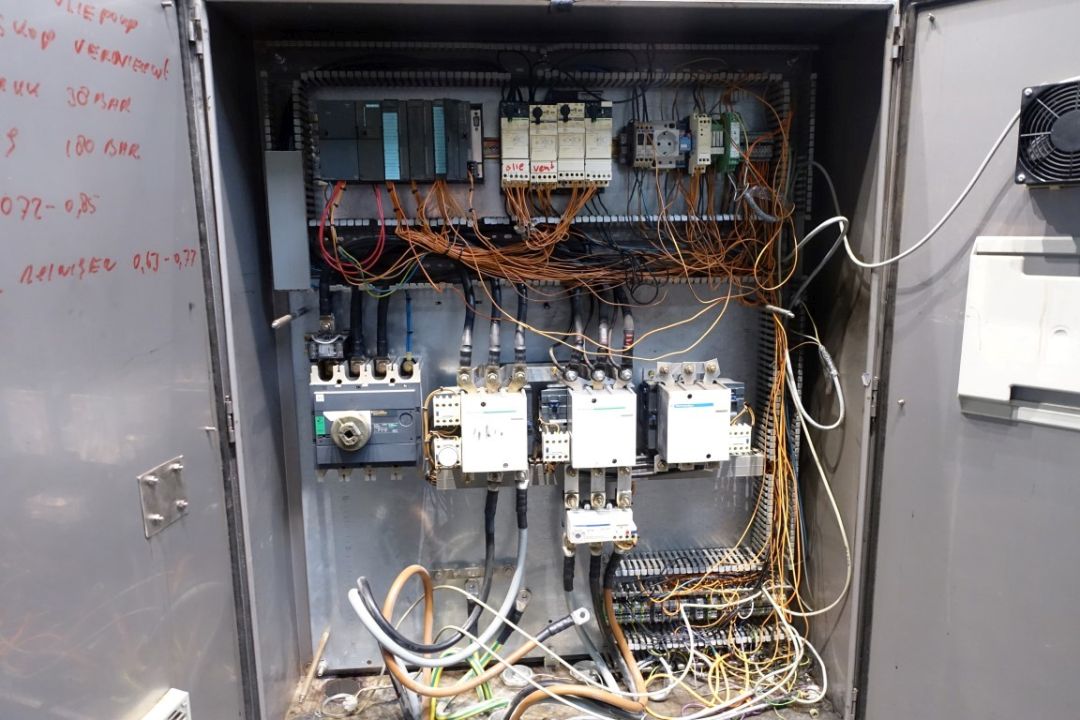

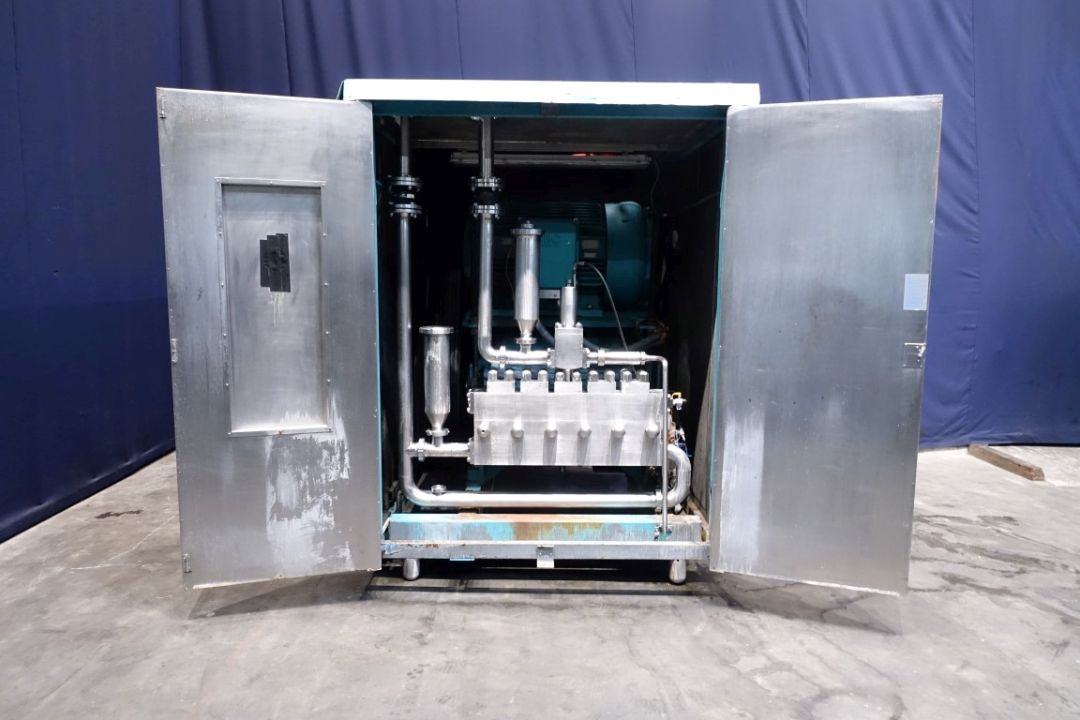

High pressure homogeniser. 1 stage with hydraulic pressure control. 5 Pistons, piston diameter: 58 mm and stroke: 90 mm. Stainless steel cladded in sound proof box < 80 dB (Rannie Milieu). Current motor power: 200 kW - 985 rpm and maximum pressure in current confirguration with this motor 200 bar. Overpressure valve. Electronic pressure transmitter. Pulsation demper on inlet and outlet. 2 Side inlet. Remote pressure control. Connections: 3''/3''. Control panel with Siemens S7-300 PLC. Total dimensions: 195 x 275 x 260 cm.
